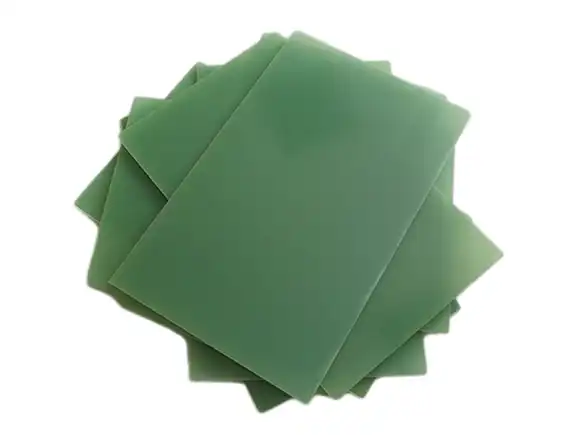

How to Identify the Quality of G10 Epoxy Fiberglass Sheet?

Identifying the quality of G10 epoxy fiberglass sheet requires a multifaceted approach. Start by examining the sheet's physical properties, including its thickness, color consistency, and surface smoothness. High-quality G10 epoxy sheet should have a uniform thickness and color throughout, with a smooth, defect-free surface. Next, assess its mechanical properties through tests like flexural strength, tensile strength, and impact resistance. Superior G10 material will exhibit excellent performance in these areas. Additionally, evaluate its electrical insulation capabilities and thermal resistance. Quality G10 epoxy fiberglass sheet should maintain its properties under various temperatures and electrical stresses. Lastly, consider the manufacturer's reputation and certifications, as these often indicate adherence to industry standards and quality control measures.

Understanding G10 Epoxy Fiberglass Sheet Composition and Manufacturing Process

Raw Materials and Their Impact on Quality

G10 epoxy fiberglass sheet is a composite material made from epoxy resin and glass fiber fabric. The quality of these raw materials significantly influences the final product's performance. High-grade epoxy resins provide superior bonding strength and chemical resistance, while premium glass fibers contribute to enhanced mechanical properties. Manufacturers who source top-tier raw materials often produce G10 sheets with superior quality and consistency.

Manufacturing Techniques and Their Influence on Sheet Properties

The manufacturing process of G10 epoxy sheet plays a crucial role in determining its quality. Advanced manufacturing techniques, such as vacuum-assisted resin transfer molding (VARTM) or hot press molding, can result in sheets with improved fiber distribution and fewer voids. These methods ensure better impregnation of the glass fibers with epoxy resin, leading to enhanced mechanical strength and electrical insulation properties.

Quality Control Measures During Production

Rigorous quality control measures throughout the production process are essential for maintaining high standards in G10 epoxy fiberglass sheets. This includes monitoring resin-to-fiber ratios, curing temperatures, and pressure during lamination. Advanced manufacturers employ in-line inspection systems and regular testing to ensure each sheet meets specified quality parameters. These measures help identify and rectify any issues early in the production process, resulting in consistently high-quality G10 sheets.

Key Indicators of G10 Epoxy Fiberglass Sheet Quality

Physical Properties and Visual Inspection

The initial assessment of G10 epoxy sheet quality often begins with a visual inspection and examination of physical properties. High-quality sheets should exhibit a uniform thickness across the entire surface, typically measured with precision calipers. The color should be consistent, without any noticeable variations or discolorations that might indicate uneven resin distribution or curing issues. The surface texture should be smooth and free from visible defects such as bubbles, cracks, or foreign particles. Any irregularities in these aspects can signify potential quality issues and may affect the sheet's performance in various applications.

Mechanical Properties and Performance Metrics

Mechanical properties are crucial indicators of G10 epoxy fiberglass sheet quality. Flexural strength, measured through three-point bending tests, should meet or exceed industry standards, typically ranging from 400 to 500 MPa for high-quality G10 sheets. Tensile strength, another critical property, should ideally be around 300 MPa or higher. Impact resistance, often evaluated using Izod impact tests, is also a key indicator of quality, with superior G10 sheets exhibiting values of 800 J/m or more. Additionally, the compressive strength of quality G10 material should be in the range of 350 to 450 MPa. These mechanical properties ensure the material's ability to withstand various stresses and loads in diverse applications.

Electrical and Thermal Characteristics

The electrical and thermal properties of G10 epoxy sheet are paramount in many applications, particularly in the electronics and electrical industries. High-quality G10 should demonstrate excellent electrical insulation properties, with a dielectric strength typically exceeding 20 kV/mm. The material's ability to maintain its insulative properties under various environmental conditions is crucial. Thermal characteristics are equally important, with quality G10 sheets maintaining their structural integrity and performance at temperatures ranging from -40°C to 130°C. The coefficient of thermal expansion (CTE) should be low, ideally around 14-16 ppm/°C in the x-y plane, to ensure dimensional stability across temperature fluctuations.

Advanced Testing Methods for G10 Epoxy Fiberglass Sheet Evaluation

Non-Destructive Testing Techniques

Non-destructive testing (NDT) methods play a vital role in evaluating the quality of G10 epoxy fiberglass sheets without compromising their integrity. Ultrasonic testing is particularly effective in detecting internal defects, voids, or delaminations within the sheet structure. This technique uses high-frequency sound waves to create detailed images of the material's internal composition. Another valuable NDT method is thermography, which uses infrared imaging to identify thermal anomalies that may indicate structural inconsistencies or manufacturing defects. These advanced techniques allow for comprehensive quality assessment without the need to sacrifice the material, making them ideal for both production quality control and in-service inspection of G10 components.

Chemical Resistance and Environmental Testing

The chemical resistance of G10 epoxy sheet is a critical quality indicator, especially for applications in harsh environments. Advanced testing protocols involve exposing samples to various chemicals, solvents, and oils to evaluate their resistance to degradation. High-quality G10 sheets should maintain their structural integrity and properties even after prolonged exposure to these substances. Environmental testing, including humidity resistance tests and salt spray tests, assesses the material's ability to withstand different atmospheric conditions. These tests simulate real-world scenarios and provide valuable insights into the long-term performance and durability of G10 epoxy fiberglass sheets in diverse applications.

Microscopic Analysis and Material Characterization

Microscopic analysis offers profound insights into the quality and structure of G10 epoxy fiberglass sheets. Scanning Electron Microscopy (SEM) allows for detailed examination of the material's surface morphology and fiber-matrix interface at high magnifications. This technique can reveal subtle defects or inconsistencies in the material's structure that might not be visible through other methods. X-ray diffraction (XRD) analysis can provide information about the crystalline structure of the glass fibers and any potential impurities in the epoxy matrix. Additionally, Fourier Transform Infrared Spectroscopy (FTIR) can be used to analyze the chemical composition of the epoxy resin, ensuring it meets the required specifications. These advanced characterization techniques offer a comprehensive understanding of the material's microstructure and composition, crucial for assessing and maintaining high quality in G10 epoxy sheets.

Conclusion

Identifying the quality of G10 epoxy fiberglass sheet involves a comprehensive evaluation of its physical, mechanical, electrical, and thermal properties. From visual inspections to advanced non-destructive testing, each method provides valuable insights into the material's quality and performance capabilities. Understanding the manufacturing process and employing rigorous quality control measures are essential for producing high-grade G10 sheets. By considering factors such as raw material quality, production techniques, and detailed material characterization, manufacturers and users can ensure the G10 epoxy sheets meet the exacting standards required for their specific applications.
