How to Identify Genuine High-Quality Phenolic Paper Sheet?

Identifying genuine high-quality phenolic paper sheet requires a comprehensive approach combining visual inspection, physical examination, and laboratory testing. Look for consistent coloration, smooth surface texture, and uniform thickness throughout the sheet. Genuine products should have clearly printed manufacturer information and grade designations. Perform basic tests like flexural strength and water absorption to verify material properties. Request certifications and data sheets from reputable suppliers to confirm adherence to industry standards. By thoroughly evaluating appearance, measurable characteristics, and documentation, you can reliably distinguish authentic, premium phenolic paper sheet from inferior imitations.

Key Visual and Physical Inspection Criteria

Surface Appearance and Texture

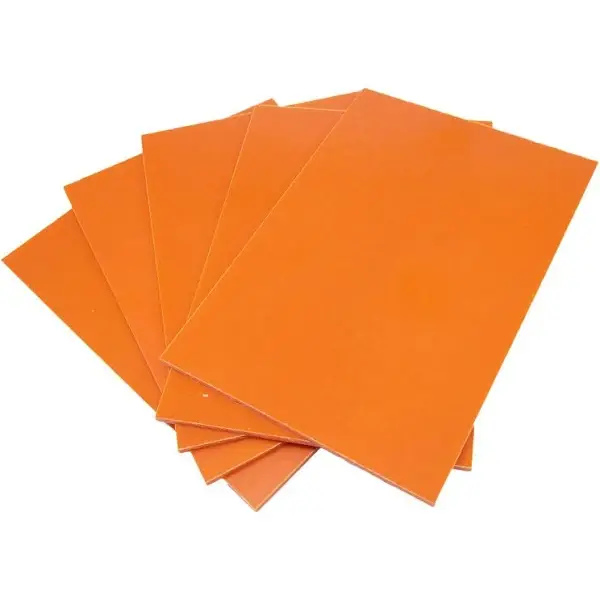

High-quality phenolic paper sheet should display a consistently smooth and uniform surface, free from any bubbles, scratches, or imperfections. Running a hand lightly over the material allows detection of rough patches or inconsistencies that may indicate poor resin impregnation. The color should remain even across the entire sheet, without streaks or discoloration. Premium sheets often exhibit a subtle sheen or semi-gloss finish, reflecting proper curing and uniform resin distribution, which contributes to the sheet's reliable mechanical and electrical performance.

Edge Quality and Thickness Uniformity

Inspecting the edges of phenolic paper sheets is essential to ensure clean-cut borders without fraying, chipping, or delamination. Accurate thickness measurement at multiple points across the sheet with a caliper confirms uniformity. Top-quality sheets maintain thickness within tight tolerances, typically around ±5% of the specified dimension. Variations may indicate inconsistent production processes or inferior materials, which could compromise mechanical stability, electrical insulation, and suitability for precise engineering applications where uniform material properties are critical.

Manufacturer Markings and Grade Designations

Authentic phenolic paper sheets feature clear, legible markings indicating the manufacturer, product grade, and applicable specifications. These identifiers are typically printed or stamped directly on the sheet surface. Confirm that the grade designation aligns with the material properties required for your application. Missing, faded, or inconsistent markings may suggest counterfeit or mislabeled sheets. Proper labeling provides assurance of material quality, compliance with industry standards, and confidence that the sheet will perform reliably in both mechanical and electrical applications.

How Do Laboratory Tests Verify Material Properties?

Mechanical Strength Testing

Laboratory tests provide quantitative data on the phenolic paper sheet's performance characteristics. Flexural strength testing measures the material's ability to resist bending forces. High-quality sheets typically exhibit flexural strength values exceeding 100 MPa. Impact strength tests, such as the Charpy or Izod methods, evaluate the material's toughness and resistance to sudden loads. Superior grades should demonstrate impact strength above 10 kJ/m².

Electrical Insulation Properties

Dielectric strength tests assess the phenolic paper sheet's ability to withstand high voltages without breakdown. Premium grades often exceed 20 kV/mm in dielectric strength. Volume and surface resistivity measurements provide insights into the material's electrical insulation capabilities. Look for volume resistivity values greater than 10^11 ohm-cm and surface resistivity above 10^10 ohms for high-performance insulating applications.

Environmental Resistance Evaluation

Water absorption tests reveal the phenolic paper sheet's resistance to moisture ingress. Quality products typically exhibit water absorption rates below 3% after 24-hour immersion. Chemical resistance can be assessed through exposure tests using common solvents and oils. Monitor changes in weight, dimensions, and appearance to gauge the material's stability in harsh environments. Temperature resistance tests, such as heat deflection temperature (HDT) measurements, indicate the sheet's ability to maintain properties at elevated temperatures.

The Importance of Manufacturer Certifications and Data Sheets

Industry Standards Compliance

Reputable manufacturers provide documentation demonstrating compliance with relevant industry standards. Look for certifications such as NEMA LI 1 for industrial laminated thermosetting products or IEC 60893 for electrical insulating materials. These standards establish minimum performance requirements and testing methodologies, ensuring consistent quality across manufacturers. Verify that the supplied phenolic paper sheet meets or exceeds the specified grade requirements for your intended application.

Material Property Specifications

Comprehensive data sheets from reliable suppliers offer detailed information on the phenolic paper sheet's physical, mechanical, electrical, and thermal properties. Compare the reported values against industry benchmarks and your specific requirements. Pay attention to key parameters like tensile strength, compressive strength, arc resistance, and thermal conductivity. Genuine high-quality products will have well-documented specifications backed by regular quality control testing.

Traceability and Quality Assurance

Authentic phenolic paper sheet manufacturers implement robust quality management systems to ensure product consistency and traceability. Look for suppliers with ISO 9001 certification, which demonstrates a commitment to quality control processes. Request batch-specific test reports and certificates of conformance to verify that the material you receive meets the advertised specifications. Established manufacturers often provide lot numbers or production codes that allow for tracking and identification of specific production runs.

Conclusion

Identifying genuine high-quality phenolic paper sheet requires a multifaceted approach combining visual inspection, physical testing, and documentation review. By carefully examining surface characteristics, verifying uniform thickness, and conducting laboratory tests, you can assess the material's authenticity and performance capabilities. Relying on reputable suppliers who provide comprehensive certifications and data sheets further ensures you receive genuine, high-quality phenolic paper sheet that meets your specific application requirements.

FAQs

What are the key properties of high-quality phenolic paper sheet?

High-quality phenolic paper sheet exhibits excellent mechanical strength, electrical insulation properties, and resistance to heat, moisture, and chemicals. It should have consistent thickness, uniform color, and smooth surface texture.

How can I verify the electrical insulation properties of phenolic paper sheet?

Laboratory tests such as dielectric strength and volume resistivity measurements can verify electrical insulation properties. High-quality sheets typically have dielectric strength exceeding 20 kV/mm and volume resistivity above 10^11 ohm-cm.

What certifications should I look for when purchasing phenolic paper sheet?

Look for certifications like NEMA LI 1, IEC 60893, and ISO 9001. These demonstrate compliance with industry standards and quality management systems, ensuring consistent product quality.

Trust J&Q for Your High-Quality Phenolic Paper Sheet Needs

J&Q, a leading phenolic paper sheet manufacturer, offers premium-quality products backed by over 20 years of industry experience. Our extensive range of insulating sheets, including phenolic paper laminates, meets the highest standards for electrical and mechanical properties. With our in-house logistics company, we provide seamless one-stop service from production to delivery. For expert guidance on selecting the right phenolic paper sheet for your application, contact our team at info@jhd-material.com.
