Why Phenolic Paper Sheet Is Ideal for Low-Voltage Systems?
Superior Electrical Insulation Properties
Phenolic paper sheet exhibits exceptional electrical insulation characteristics, making it an optimal choice for low-voltage applications. Its high dielectric strength ensures effective isolation between conductive components, preventing current leakage and enhancing overall system safety. The material's low electrical conductivity contributes to minimizing power losses and improving energy efficiency in electrical equipment.
Excellent Mechanical Strength
One of the standout features of phenolic paper sheet is its impressive mechanical strength. This property allows it to withstand the physical stresses commonly encountered in low-voltage equipment, such as vibrations, impacts, and thermal expansion. The material's rigidity and dimensional stability ensure that components maintain their shape and integrity over extended periods, contributing to the overall reliability of the electrical system.
Thermal Resistance and Stability
Phenolic paper sheet demonstrates remarkable thermal resistance, enabling it to maintain its properties across a wide temperature range. This characteristic is crucial in low-voltage equipment, where heat generation can be a significant concern. The material's ability to withstand elevated temperatures without degradation or loss of insulation properties ensures consistent performance and extends the lifespan of electrical components.
Electrical Insulation and Mechanical Strength Benefits
Enhanced Safety in Electrical Systems
Phenolic paper sheet significantly improves safety in low-voltage electrical equipment by acting as a reliable insulating barrier. Its high breakdown voltage and excellent arc resistance reduce the likelihood of electrical failures, short circuits, and accidental current flow. Additionally, the material’s inherent flame-retardant properties help prevent the spread of fire in the event of an electrical fault. These combined characteristics protect both personnel and equipment, making phenolic paper an ideal choice for enhancing safety in diverse electrical applications.
Improved Durability and Longevity
The remarkable durability of phenolic paper sheet ensures that electrical components maintain their functionality over long service periods. Resistant to wear, abrasion, and environmental stressors, the material preserves its insulating and mechanical properties even under continuous use. This longevity minimizes maintenance needs and reduces replacement frequency, improving overall equipment reliability. As a result, low-voltage systems benefit from cost savings and consistent performance, making phenolic paper an effective material for long-term industrial and electrical applications.
Versatility in Design and Application
Phenolic paper sheet offers exceptional versatility for designing low-voltage equipment components. Its ease of machining and fabrication allows manufacturers to produce intricate shapes and tailored parts that meet specific application requirements. This adaptability supports optimized space utilization, precise component alignment, and efficient assembly designs. By accommodating complex configurations without compromising mechanical or insulating properties, phenolic paper enables designers to enhance overall system performance, contributing to more reliable, compact, and high-performing electrical equipment solutions.
Common Use Cases in Electrical Equipment
Switchgear and Circuit Breaker Components
Phenolic paper sheet is extensively utilized in switchgear and circuit breaker applications due to its excellent insulating properties. It is commonly employed for arc chutes, phase barriers, and supporting insulators, where high electrical stress and heat are frequent. The material's ability to maintain mechanical integrity under electrical load ensures reliable operation and enhances safety in power distribution systems. Its flame-retardant and durable nature further reduces the risk of failure, making it an indispensable component in critical electrical infrastructure.
Transformer Insulation
In transformer assemblies, phenolic paper sheet provides essential insulation between windings and conductive parts, preventing electrical shorting and improving operational reliability. Its dimensional stability under thermal stress and resistance to oil absorption make it particularly suitable for oil-filled transformers. These properties allow the transformer to operate efficiently while maintaining long-term performance. Additionally, the combination of mechanical strength and electrical insulation ensures that components are protected from wear and thermal degradation, extending the transformer's service life in demanding industrial environments.
Motor and Generator Components
Phenolic paper sheet is widely employed in motors and generators, especially for insulating end rings, slot liners, and phase separators. The material's high mechanical strength and thermal resistance allow it to endure the mechanical forces and heat generated during operation of rotating machines. Low moisture absorption further ensures consistent insulation performance under varying environmental conditions. These characteristics contribute to reliable operation, reduced maintenance, and enhanced longevity of motors and generators, making phenolic paper an ideal choice for high-performance electrical machinery applications.
Conclusion
Phenolic paper sheet offers a compelling combination of electrical insulation properties, mechanical strength, and durability, making it an excellent choice for low-voltage equipment applications. Its versatility and reliability contribute to enhanced safety, improved performance, and extended equipment lifespan. As the electrical industry continues to evolve, the advantages of phenolic paper sheet position it as a valuable material for addressing the challenges of modern low-voltage systems. By leveraging its unique properties, manufacturers can develop more efficient, reliable, and cost-effective electrical equipment.
FAQs
What is phenolic paper sheet?

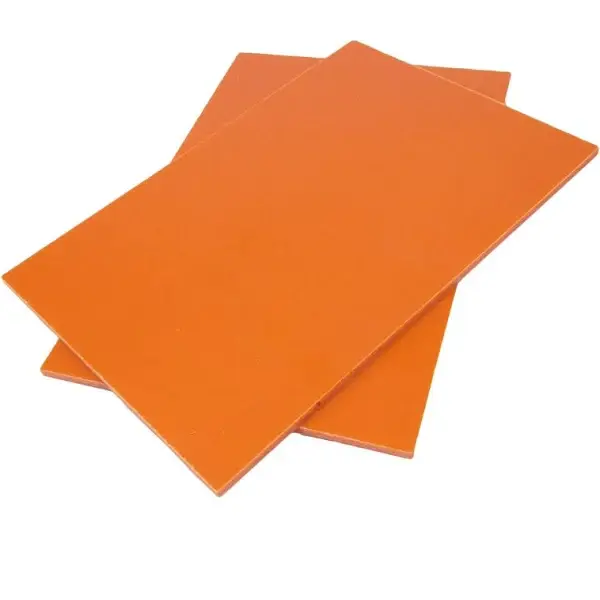

Phenolic paper sheet is a composite material made by impregnating layers of paper with phenolic resin and subjecting them to heat and pressure. It offers excellent electrical insulation properties, mechanical strength, and chemical resistance.
What are the main advantages of using phenolic paper sheet in low-voltage equipment?
The main advantages include superior electrical insulation, excellent mechanical strength, thermal resistance, enhanced safety, improved durability, and versatility in design and application.
In which electrical components is phenolic paper sheet commonly used?
Phenolic paper sheet is commonly used in switchgear components, circuit breakers, transformer insulation, and motor and generator parts such as end rings and slot liners.
