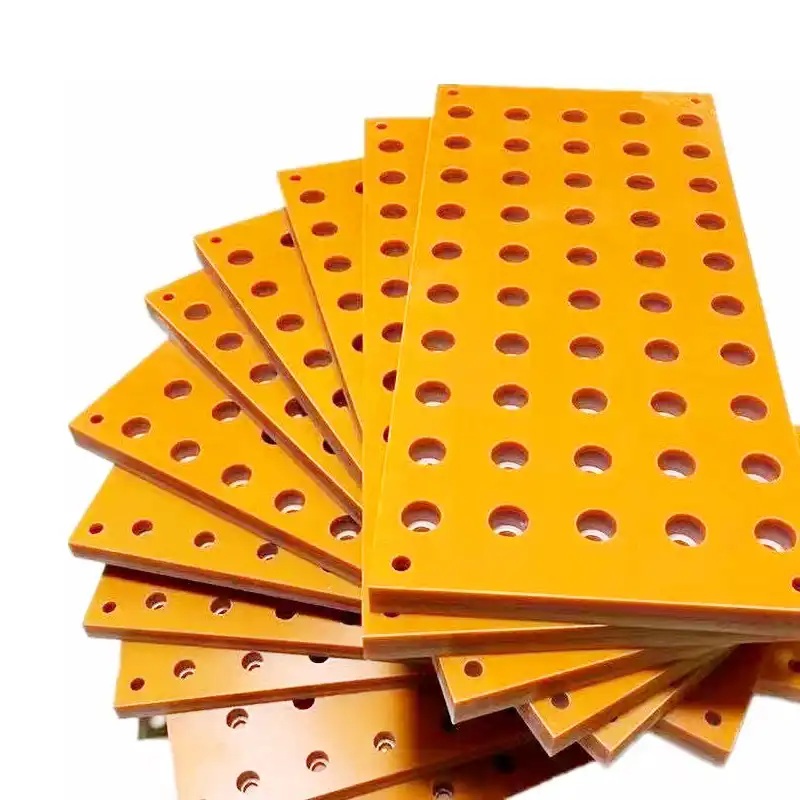

Composition and Manufacturing Process
Raw Materials and Chemical Composition
Bakelite sheets and 3240 epoxy boards differ significantly in their raw materials and chemical composition. Bakelite, also known as phenolic resin, is made from phenol and formaldehyde. This thermoset plastic was one of the first synthetic materials developed and has been widely used in electrical applications for decades. On the contrary, 3240 epoxy boards are composed of epoxy resin reinforced with glass fabric. The epoxy resin is typically a combination of epichlorohydrin and bisphenol-A, which creates a strong, durable material when cured.
Production Techniques
The manufacturing processes for Bakelite sheets and 3240 epoxy boards are distinct. The products are produced through a compression molding process. The phenolic resin is mixed with fillers and then subjected to high pressure and heat in a mold. This process creates a dense, uniform sheet with excellent electrical insulation properties. In contrast, 3240 epoxy boards are manufactured using a lamination process. Layers of glass fabric are impregnated with epoxy resin and then stacked and pressed together under controlled heat and pressure. This results in a composite material with superior mechanical strength and electrical insulation characteristics.
Curing Methods
The curing methods for these two materials also differ. Bakelite sheets undergo a thermosetting process during manufacturing, which means they are irreversibly cured. Once the phenolic resin is heated and molded, it forms a three-dimensional network of cross-linked polymer chains that cannot be reshaped or melted. This gives Bakelite its characteristic hardness and heat resistance. 3240 epoxy boards, while also thermoset materials, have a different curing process. The epoxy resin is typically cured using heat and catalysts, which initiate a chemical reaction that forms a cross-linked polymer network. This curing process can be carefully controlled to achieve specific properties in the final product.
Physical and Mechanical Properties
Density and Weight
The density and weight of Bakelite sheets and 3240 epoxy boards can be distinguishing factors. Bakelite sheets generally have a higher density, typically ranging from 1.3 to 1.4 g/cm³. This results in a heavier material compared to 3240 epoxy boards. The 3240 epoxy boards, reinforced with glass fabric, have a slightly lower density, usually between 1.7 to 1.9 g/cm³. Despite the lower density, 3240 epoxy boards often feel lighter due to their ability to be produced in thinner sheets while maintaining strength and insulation properties.
Hardness and Brittleness
Bakelite sheets are renowned for their hardness and rigidity. They exhibit high surface hardness, which makes them resistant to scratches and wear. However, this hardness comes with a trade-off in brittleness. The products are more prone to cracking or chipping when subjected to impact or stress. In contrast, it offers a balance between hardness and flexibility. While not as hard as Bakelite, they possess sufficient surface hardness for most applications. The glass fabric reinforcement in 3240 epoxy boards provides enhanced impact resistance and reduces brittleness, making them less likely to crack or chip under stress.
Machinability and Workability
The machinability and workability of these materials are crucial factors in their application. Bakelite sheets, due to their hardness and brittleness, can be challenging to machine. They require careful handling and specialized tools to prevent chipping or cracking during cutting, drilling, or shaping processes. On the other hand, 3240 epoxy boards offer superior machinability. They can be easily cut, drilled, and shaped using standard woodworking tools without the risk of chipping or cracking. This enhanced workability makes 3240 epoxy boards a preferred choice for applications requiring complex shapes or precise machining.
Electrical and Thermal Properties
Dielectric Strength and Insulation Resistance
Both Bakelite sheets and 3240 epoxy boards are prized for their excellent electrical insulation properties, but they differ in their specific characteristics. The products typically have a dielectric strength ranging from 15 to 20 kV/mm, which provides robust insulation against electrical breakdown. Their volume resistivity is generally in the order of 10^10 to 10^12 ohm-cm. 3240 epoxy boards, however, often surpass these values. They can achieve dielectric strengths of 20 to 25 kV/mm and volume resistivities in the range of 10^14 to 10^16 ohm-cm. This superior insulation resistance makes 3240 epoxy boards particularly suitable for high-voltage applications and environments where electrical leakage must be minimized.
Thermal Conductivity and Heat Resistance
The thermal properties of these materials are crucial in many applications. Bakelite sheets have relatively low thermal conductivity, typically around 0.2 to 0.3 W/m·K. This makes them excellent thermal insulators, capable of withstanding temperatures up to 150°C continuously. 3240 epoxy boards, while also good thermal insulators, have slightly higher thermal conductivity, usually in the range of 0.3 to 0.5 W/m·K. However, they often outperform Bakelite in terms of heat resistance, with some grades capable of withstanding continuous temperatures up to 180°C or even higher for short periods. This superior heat resistance makes 3240 epoxy boards preferable in applications involving high temperatures or thermal cycling.
Flame Retardancy and Arc Resistance
Both materials offer good flame retardancy, but their performance can vary. The products inherently possess flame-retardant properties due to their phenolic composition. They typically achieve a UL 94 V-0 rating without additional additives. 3240 epoxy boards can also achieve high flame retardancy ratings, but this often requires the incorporation of specific flame-retardant additives. In terms of arc resistance, both materials perform well, but it often have a slight edge. The glass fabric reinforcement in 3240 epoxy boards enhances their ability to withstand electrical arcing, making them particularly suitable for switchgear and other high-voltage applications where arc flash events may occur.
Conclusion
Distinguishing between Bakelite sheets and 3240 epoxy boards requires consideration of their composition, physical properties, and performance characteristics. While both materials excel in electrical insulation, they each have unique strengths. The products offer high hardness, excellent thermal insulation, and inherent flame retardancy. 3240 epoxy boards provide superior electrical insulation, better machinability, and higher heat resistance. Understanding these differences enables engineers and manufacturers to select the most appropriate material for specific applications, ensuring optimal performance and longevity in electrical and industrial equipment.
