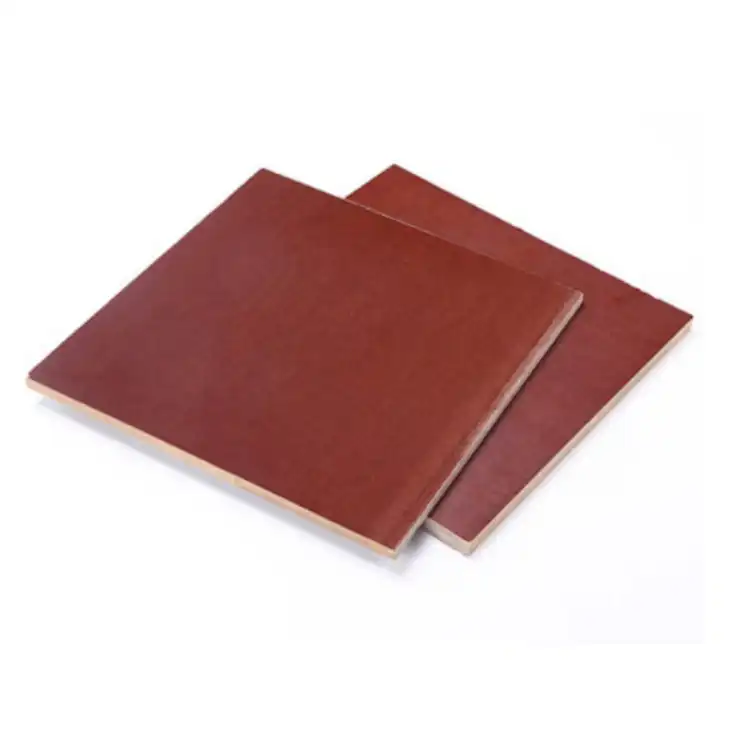

How to Cut Phenolic Resin Sheets Without Cracking?

Cutting phenolic resin sheets without cracking requires precision and the right techniques. To achieve clean cuts, use sharp carbide-tipped saw blades or specialized cutting tools designed for composites. Maintain a steady, moderate feed rate and ensure proper blade speed to minimize heat buildup. Adequate cooling and lubrication during cutting are crucial. Support the sheet fully to prevent vibration and use a backing board to reduce chipping. For intricate shapes, consider using a CNC router or water jet cutter. After cutting, relieve stress by gently heating the edges or allowing the material to rest before further processing. By following these methods, you can successfully cut phenolic resin sheets while preserving their structural integrity and avoiding cracks.

Which Cutting Tools Provide Clean Edges on Phenolic Resin?

Carbide-Tipped Saw Blades

Carbide-tipped saw blades are indispensable for achieving clean cuts on phenolic resin sheets. These blades boast exceptional hardness and durability, allowing them to maintain a sharp edge even when cutting through abrasive materials. When selecting a carbide-tipped blade, opt for one with a high tooth count, typically 60 to 80 teeth for a 10-inch blade. This configuration helps reduce chipping and produces smoother edges. Additionally, look for blades with a thin kerf, as they remove less material and require less cutting force, further minimizing the risk of cracking.

CNC Routers

CNC (Computer Numerical Control) routers offer unparalleled precision and versatility when cutting phenolic resin sheets. These machines use computer-controlled cutting heads to follow intricate patterns and produce complex shapes with ease. For optimal results, equip your CNC router with solid carbide spiral upcut or compression bits specifically designed for composite materials. These bits efficiently evacuate chips, reducing heat buildup and preventing material buildup on the cutting edge. The ability to control feed rates and cutting depths with high accuracy makes CNC routers an excellent choice for projects requiring consistent, repeatable cuts.

Water Jet Cutters

Water jet cutting technology presents a unique solution for cutting phenolic resin sheets without inducing thermal stress or mechanical strain. This method uses a high-pressure stream of water, often mixed with abrasive particles, to cut through the material. The absence of heat generation during the cutting process eliminates the risk of thermal cracking or delamination. Water jet cutters excel at producing intricate shapes and can cut through thick phenolic sheets with ease. Moreover, this technique leaves a smooth edge that often requires minimal post-processing, saving time and reducing the likelihood of stress-induced cracking during finishing operations.

Recommended Speeds, Feeds, and Cooling Methods

Optimal Cutting Speeds

Selecting the appropriate cutting speed is paramount when working with phenolic resin sheets. For circular saws, a blade speed of 3,000 to 5,000 feet per minute typically yields the best results. This range allows for efficient material removal while minimizing heat generation. When using a CNC router, spindle speeds between 18,000 and 24,000 RPM are often optimal, depending on the bit diameter and feed rate. It's crucial to note that excessively high speeds can lead to melting or burning of the resin, while too low speeds may cause chipping or delamination. Experiment with different speeds within these ranges to find the sweet spot for your specific phenolic material and cutting tool combination.

Feed Rate Considerations

The feed rate, or the speed at which the cutting tool moves through the material, plays a critical role in achieving clean cuts without cracking. For hand-held circular saws, maintain a steady, moderate pace to ensure consistent cutting pressure. With CNC routers, feed rates between 100 and 300 inches per minute are typically suitable, depending on the material thickness and router bit specifications. It's essential to strike a balance – too slow a feed rate can cause excessive heat buildup and possible melting, while too fast a rate may lead to chipping or incomplete cuts. Adjust the feed rate based on visual inspection of the cut quality and listen for any changes in the cutting sound that might indicate stress on the material.

Effective Cooling Techniques

Implementing proper cooling methods is crucial for preventing heat-induced cracking and ensuring clean cuts on phenolic resin sheets. One effective technique is to use compressed air directed at the cutting point, which helps dissipate heat and clear away chips. For more demanding applications, a mist cooling system that sprays a fine water mist onto the cutting area can significantly reduce thermal stress. When using CNC routers, consider employing a vacuum table with strategically placed air holes to provide cooling while securing the workpiece. Some fabricators also use specialized cutting fluids designed for composites, which not only cool but also lubricate the cutting edge, extending tool life and improving cut quality. Regardless of the method chosen, consistent and adequate cooling is key to preventing thermal damage and maintaining the structural integrity of the phenolic resin sheet.

Edge Finishing and Post-Cut Stress-Relief Techniques

Sanding and Polishing Methods

After cutting phenolic resin sheets, proper edge finishing is crucial to remove any micro-cracks or rough spots that could propagate into larger cracks. Begin with a coarse-grit sandpaper, around 80-grit, to remove any major imperfections or burrs left by the cutting process. Gradually progress to finer grits, such as 120, 220, and 400, to achieve a smooth finish. For a high-gloss appearance, continue with even finer grits up to 1000 or beyond. Use a random orbital sander for larger areas to ensure even material removal. For intricate shapes or hard-to-reach spots, hand sanding with sanding blocks or foam-backed abrasives can provide better control. Always sand in the direction of the cut to minimize the risk of introducing new stress points. Finish the process by polishing with a specialized composite polishing compound to achieve a lustrous, crack-free edge.

Heat Treatment for Stress Relief

Heat treatment is an effective method for relieving internal stresses in phenolic resin sheets after cutting, which can significantly reduce the risk of cracking. This process involves carefully heating the cut edges or the entire sheet to just below the material's heat deflection temperature, typically around 300°F (150°C) for most phenolic resins. Maintain this temperature for 1-2 hours, then allow the material to cool slowly to room temperature. This controlled heating and cooling cycle helps to relax the polymer chains, releasing any residual stresses introduced during the cutting process. For localized stress relief, you can use a heat gun to gently warm the cut edges, moving it continuously to ensure even heating. Always monitor the temperature closely to avoid overheating, which could cause warping or degradation of the material properties.

Chemical Edge Sealing

Chemical edge sealing is a valuable technique for protecting cut edges of phenolic resin sheets from moisture ingress and potential cracking. After cutting and finishing the edges, apply a specialized edge sealant compatible with phenolic resins. These sealants are typically epoxy-based or formulated specifically for composite materials. They penetrate the exposed fibers and resin at the cut edge, creating a protective barrier against environmental factors. To apply, ensure the edge is clean and dry, then use a brush or applicator to coat the edge evenly with the sealant. Some sealants may require multiple coats for optimal protection. Allow each coat to cure fully according to the manufacturer's instructions before handling or further processing the sheet. This treatment not only prevents moisture-induced swelling and cracking but also enhances the overall durability and longevity of the phenolic resin component.

Conclusion

Mastering the art of cutting phenolic resin sheets without cracking involves a combination of proper tool selection, optimized cutting parameters, and meticulous post-processing techniques. By employing carbide-tipped blades, CNC routers, or water jet cutters, and adhering to recommended speeds and feeds, you can achieve clean, precise cuts. Implementing effective cooling methods during cutting and utilizing stress-relief techniques such as heat treatment and edge sealing afterwards further ensures the integrity of your phenolic components. With these strategies, you can confidently work with phenolic resin sheets, producing high-quality parts that maintain their structural integrity and performance characteristics.
