Best Practices for Using G11 Sheets in High Voltage Systems

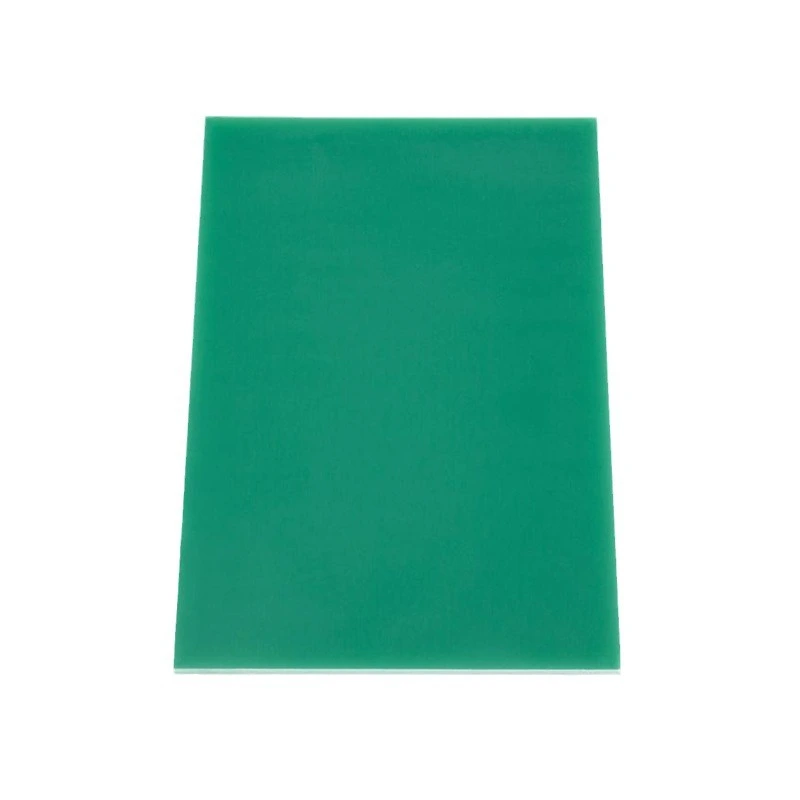

G11 sheets are essential components in high voltage systems, providing superior insulation and mechanical strength. To maximize their effectiveness and ensure long-term reliability, it's crucial to follow best practices when using G11 sheets. These include proper handling and installation techniques, regular maintenance, and monitoring for potential issues. By implementing these practices, engineers can optimize the performance of G11 sheets, enhance system safety, and extend the lifespan of high voltage equipment. This article explores key strategies for leveraging G11 sheets effectively in high voltage applications, from initial design considerations to ongoing maintenance procedures.

Why Is G11 Preferred for High-Voltage Insulation?

Superior Electrical Properties

G11 sheets are highly regarded for their exceptional dielectric strength, which makes them particularly suited for high-voltage insulation applications. They can withstand intense electrical fields without experiencing breakdown, ensuring reliable and safe operation in demanding electrical environments. Additionally, the low dielectric constant of G11 helps to minimize energy losses during electrical transmission, thereby improving the overall efficiency of the system. These superior electrical characteristics make G11 a preferred material in many high-voltage insulation contexts.

Thermal Stability and Heat Resistance

A key advantage of G11 sheets is their excellent thermal stability, enabling them to maintain performance across a broad temperature range. This is especially important in high-voltage systems where heat buildup is common due to electrical load and environmental factors. G11’s ability to resist thermal degradation ensures that the material retains its insulating properties and mechanical strength even under elevated temperatures, preventing thermal breakdown and contributing to the consistent and safe functioning of electrical equipment.

Mechanical Strength and Durability

G11 sheets possess outstanding mechanical strength that allows them to withstand physical stresses and deformation under high-voltage conditions. This robustness ensures a longer service life and reduces the frequency of maintenance interventions. The material’s excellent resistance to creep and dimensional stability under load further enhance its reliability in high-stress applications. These mechanical qualities make G11 sheets a durable and dependable choice for insulation in challenging electrical environments.

Installation Techniques to Minimize Partial Discharge

Surface Preparation and Cleanliness

Proper surface preparation is crucial when installing G11 sheets to ensure optimal insulation performance. All surfaces must be thoroughly cleaned, completely dry, and free from any contaminants such as dust, oils, or residues. Using suitable cleaning agents and methods helps remove impurities that could compromise the insulation’s integrity. A meticulously prepared surface not only reduces the risk of partial discharge but also improves adhesion and the overall durability of the G11 insulation system during operation.

Precision Cutting and Fitting

Cutting G11 sheets with precision tools is essential to produce clean, smooth edges that minimize stress concentrations. Uneven or rough cuts can create weak points that increase the likelihood of partial discharge. Specialized cutting equipment designed specifically for composite materials should be used to maintain dimensional accuracy. Proper fitting is equally important; components must be installed with tight tolerances to reduce gaps and ensure consistent contact between G11 sheets and adjoining structures, thereby enhancing insulation reliability.

Stress Grading Techniques

Applying stress grading techniques plays a vital role in managing the electric field distribution around G11 insulation. Using stress grading materials or specialized coatings at critical junctions helps to evenly distribute electric fields and reduce localized field intensities. This approach minimizes the potential for partial discharge initiation, which can degrade insulation over time. Effective stress grading contributes to a more uniform and stable insulation environment, enhancing the longevity and safety of electrical systems employing G11 sheets.

Maintenance and Monitoring for Long-Term Reliability

Regular Visual Inspections

Performing routine visual inspections on G11 sheets and their related components is essential for long-term reliability. Inspect carefully for any signs of physical damage such as cracks, chips, discoloration, or contamination on the surface. Focus particularly on vulnerable areas like edges, corners, and interfaces where stress concentrations are common. Early identification of these issues through consistent visual checks helps prevent further deterioration, reducing the risk of failure and costly repairs in critical electrical systems.

Non-Destructive Testing Methods

To evaluate the condition of G11 insulation without causing damage, employ non-destructive testing (NDT) methods. Techniques like ultrasonic testing can detect hidden internal defects, delamination, or voids within the material. Infrared thermography is useful for spotting temperature anomalies or hot spots that may signal insulation degradation. These testing approaches provide detailed insight into the structural and thermal health of G11 sheets, enabling proactive maintenance without interrupting the operation or requiring disassembly.

Environmental Control and Protection

Ensuring a stable environment around G11 insulation is crucial to extend its service life. Control factors such as humidity, temperature fluctuations, and exposure to contaminants near high-voltage equipment. Installing protective enclosures or barriers can shield G11 components from physical damage and environmental stressors like dust, moisture, and chemical vapors. Such preventative measures help maintain the integrity and performance of G11 sheets, supporting reliable operation in demanding industrial or electrical applications over long periods.

Conclusion

Implementing best practices for using G11 sheets in high voltage systems is crucial for ensuring optimal performance, safety, and longevity. By understanding the material's unique properties, employing proper installation techniques, and maintaining a robust monitoring and maintenance regimen, engineers can fully leverage the benefits of G11 insulation. These practices not only enhance system reliability but also contribute to improved energy efficiency and reduced operational costs in high-voltage applications.
