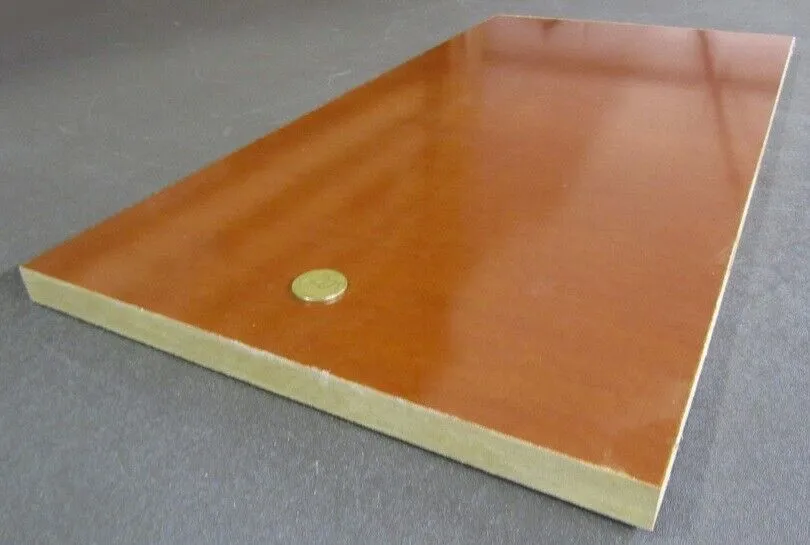

Understanding CE Phenolic Sheets and Their Properties
Composition and Manufacturing Process
CE phenolic sheets are manufactured by combining layers of glass fabric with phenolic resin, a thermosetting polymer known for its excellent insulating characteristics. The process involves saturating the fabric with resin and then subjecting it to high heat and pressure to cure the material into solid, rigid sheets. This method ensures uniformity and structural integrity, producing a laminate that is both dimensionally stable and capable of withstanding harsh physical and electrical environments.
Thermal and Electrical Characteristics
CE phenolic sheets are engineered to perform under high-temperature conditions, maintaining their physical properties up to 220°C (428°F). Their low thermal conductivity minimizes heat transfer, making them ideal for insulating components in thermal management systems. Electrically, these sheets offer outstanding dielectric strength and resist electrical arcing and tracking. These qualities make CE phenolic sheets indispensable in switchgear, transformers, circuit boards, and other applications requiring reliable insulation under extreme electrical stress.
Mechanical Strength and Durability
CE phenolic sheets strike a balance between light weight and high mechanical performance. They offer excellent compressive and flexural strength, allowing them to handle mechanical stress without warping or breaking. Their structural integrity is maintained over time due to strong resistance against moisture absorption, chemical corrosion, and flame propagation. This makes them suitable for heavy-duty industrial environments, where materials are exposed to constant wear, variable temperatures, and potentially corrosive substances.
Essential Tools and Equipment for Cutting CE Phenolic Sheets
Cutting Tools and Machinery
Choosing the right cutting tools is critical to ensure smooth and accurate results when working with CE phenolic sheets. For straight-line cutting, a high-speed circular saw fitted with a carbide-tipped blade delivers excellent performance, minimizing chipping and edge degradation. When curved or detailed cuts are required, a jigsaw with a fine-toothed blade for composites is effective. In production environments, CNC routers provide superior control and consistency for repeated or complex geometries, maximizing efficiency and accuracy.
Safety Equipment and Personal Protective Gear
Working with CE phenolic sheets generates dust and debris that can pose health and safety risks, making personal protection essential. Operators should wear safety goggles to protect their eyes and a dust mask or respirator to guard against airborne particles. Cut-resistant gloves are vital to prevent injuries during material handling and cutting. Additionally, ear protection is advisable during extended use of loud machinery to protect hearing and maintain a safe working environment.
Measuring and Marking Tools
Precision in measuring and marking ensures that cuts are accurate and material waste is minimized. Essential tools include a combination square for right angles, a steel ruler for linear measurements, and a marking pencil for clean lines. For larger panels, a chalk line offers a quick method to draw straight, visible guidelines. When cutting intricate shapes, durable templates—crafted from plywood or metal—help maintain consistency across multiple parts and improve overall production quality.
Step-by-Step Guide to Cutting CE Phenolic Sheets
Preparation and Layout
Begin by thoroughly cleaning the work area and ensuring adequate lighting. Measure the CE phenolic sheet carefully, accounting for any allowances or tolerances required for your specific application. Use a permanent marker or pencil to clearly mark your cut lines, double-checking measurements before proceeding. If working with large sheets, consider using sawhorses or a sturdy work table to provide proper support and prevent sagging or bowing during the cutting process.
Cutting Techniques for Different Applications
For straight cuts, align your circular saw with the marked line and use a straight edge as a guide to ensure accuracy. When making curved cuts with a jigsaw, start by drilling a pilot hole near the cut line to insert the blade. Move the jigsaw slowly and steadily along the marked line, allowing the blade to do the work without forcing it. For intricate patterns or cutouts, a router with a template guide can produce professional results. Regardless of the technique used, maintain a consistent speed to prevent overheating or melting of the phenolic material.
Post-Cutting Finishing and Edge Treatment
After cutting, inspect the edges for any roughness or burrs. Use fine-grit sandpaper to smooth the cut edges, working progressively from coarser to finer grits for a polished finish. For applications requiring sealed edges, apply a compatible epoxy or phenolic resin to prevent moisture ingress and enhance durability. In some cases, edge banding or protective trims may be applied to improve aesthetics and provide additional protection against impact or environmental factors.
Conclusion
Mastering the art of cutting CE phenolic sheets safely and effectively is crucial for maximizing the potential of this versatile insulating material. By understanding the unique properties of CE phenolic sheets, utilizing the right tools and equipment, and following proper cutting techniques, you can achieve precise, high-quality results in your projects. Remember that safety should always be your top priority, and continuous practice will help refine your skills. With the knowledge and techniques outlined in this guide, you're well-equipped to tackle CE phenolic sheet cutting tasks with confidence and proficiency.
