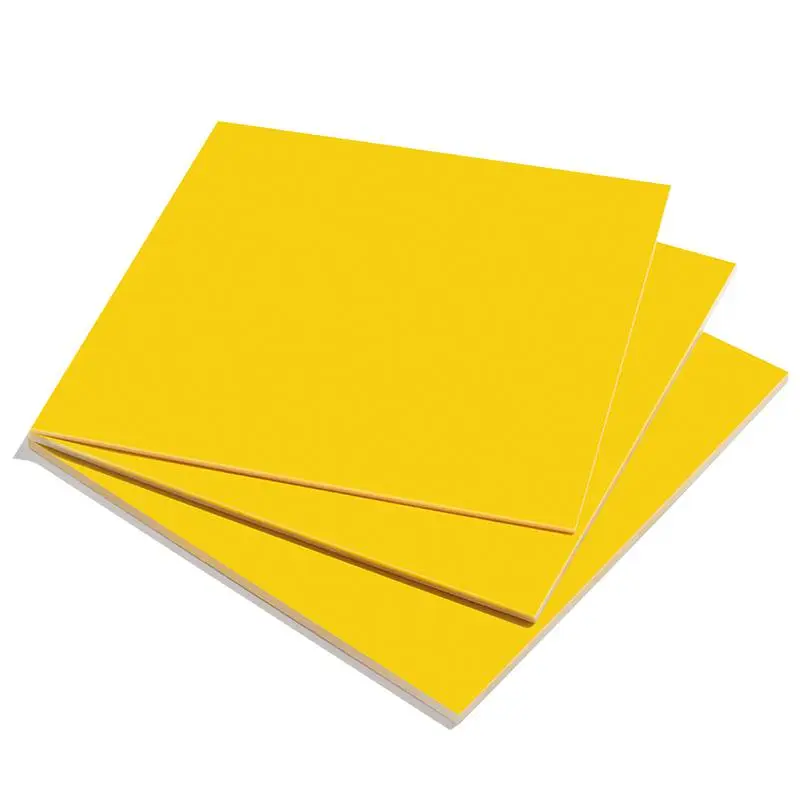

Composition and Manufacturing Process of 3240 Epoxy Sheets
Raw Materials Used in 3240 Epoxy Sheets
The production of 3240 epoxy sheets involves carefully selected raw materials that contribute to their exceptional properties. The primary components include:
- Epoxy resin: A high-performance thermoset polymer that forms the matrix of the sheet
- Glass fabric: Provides reinforcement and enhances mechanical strength
- Hardeners: Catalyze the curing process and contribute to the final properties
- Additives: Enhance specific characteristics such as flame retardancy or UV resistance
The quality of these raw materials significantly influences the performance of the final 3240 epoxy board. Manufacturers meticulously select and combine these components to achieve the desired properties and meet industry standards.
Manufacturing Techniques for 3240 Epoxy Sheets
The production of 3240 epoxy sheets involves sophisticated manufacturing techniques to ensure consistent quality and optimal performance. The process typically includes:
- Resin preparation: Mixing epoxy resin with hardeners and additives
- Impregnation: Saturating glass fabric layers with the prepared resin
- Layup: Stacking multiple layers of impregnated fabric to achieve the desired thickness
- Compression molding: Applying heat and pressure to cure the epoxy and form the sheet
- Post-curing: Subjecting the sheets to controlled temperature cycles to enhance properties
- Quality control: Rigorous testing to ensure compliance with specifications
These manufacturing techniques contribute to the exceptional quality and consistency of 3240 epoxy sheets, making them reliable for various applications.
Quality Control Measures in 3240 Epoxy Sheet Production
Maintaining consistent quality is crucial in the production of 3240 epoxy sheets. Manufacturers implement stringent quality control measures throughout the production process, including:
- Raw material inspection: Verifying the quality and specifications of incoming materials
- In-process monitoring: Continuous checks during manufacturing to ensure adherence to parameters
- Physical testing: Evaluating mechanical properties such as tensile strength and flexural modulus
- Electrical testing: Assessing insulation resistance, dielectric strength, and other electrical properties
- Dimensional verification: Ensuring sheets meet thickness and flatness tolerances
- Thermal analysis: Confirming thermal stability and glass transition temperature
These quality control measures ensure that every 3240 epoxy board meets the rigorous standards required for high-performance applications.
Key Features and Properties of 3240 Epoxy Sheets
Electrical Insulation Properties
3240 epoxy sheets excel in electrical insulation, making them ideal for various electrical and electronic applications. Their key electrical properties include:
- High dielectric strength: Resists electrical breakdown under high voltage stress
- Low dielectric constant: Minimizes signal distortion in high-frequency applications
- Excellent volume and surface resistivity: Prevents current leakage
- Arc resistance: Withstands electrical arcing without degradation
These properties ensure reliable performance in electrical systems, reducing the risk of failures and enhancing overall safety.
Mechanical Strength and Durability
The mechanical properties of 3240 epoxy sheets contribute to their versatility and longevity in demanding applications. Notable mechanical characteristics include:
- High tensile strength: Resists deformation under load
- Excellent flexural strength: Maintains shape integrity in bending applications
- Good impact resistance: Absorbs shock without cracking or shattering
- Dimensional stability: Retains shape and size under varying environmental conditions
- Wear resistance: Withstands abrasion and prolonged use
These mechanical properties ensure that 3240 epoxy boards maintain their structural integrity in challenging environments, contributing to the longevity of the components they are used in.
Thermal and Chemical Resistance
3240 epoxy sheets demonstrate exceptional resistance to thermal and chemical factors, enhancing their suitability for diverse applications. Key resistance properties include:
- High heat resistance: Maintains properties at elevated temperatures
- Low thermal expansion: Minimizes dimensional changes with temperature fluctuations
- Flame retardancy: Inherent resistance to combustion and flame spread
- Chemical inertness: Resists degradation from exposure to oils, solvents, and mild acids
- Low moisture absorption: Maintains electrical and mechanical properties in humid environments
These resistance properties ensure that 3240 epoxy sheets perform reliably in harsh environments, contributing to the longevity and safety of the systems they are integrated into.
Applications and Advantages of 3240 Epoxy Sheets
Industrial and Electrical Applications
3240 epoxy sheets find extensive use in various industrial and electrical applications due to their exceptional properties. Some key applications include:
- Switchgear components: Insulating barriers and bushings in high-voltage equipment
- Transformer insulation: Core insulation and spacers in power transformers
- Motor insulation: Slot liners and phase separators in electric motors
- Circuit board substrates: Base material for printed circuit boards in electronics
- Electrical panels: Insulating backplanes and mounting plates in control panels
The versatility of 3240 epoxy boards in these applications stems from their excellent electrical insulation properties and mechanical strength, ensuring reliable performance in critical electrical systems.
Aerospace and Transportation Applications
The aerospace and transportation sectors leverage the unique properties of 3240 epoxy sheets for various components. Applications in these industries include:
- Aircraft interiors: Structural components and panels in cabin interiors
- Radomes: Protective covers for radar antennas in aircraft and marine vessels
- Composite structures: Core material in sandwich constructions for lightweight components
- Electrical insulation in vehicles: Insulating barriers in electric and hybrid vehicles
- Rail transport components: Insulation in traction motors and control systems
The high strength-to-weight ratio and excellent electrical properties of 3240 epoxy sheets make them invaluable in these applications, contributing to improved performance and safety in transportation systems.
Advantages Over Alternative Materials
3240 epoxy sheets offer several advantages over alternative insulating materials, making them a preferred choice in many applications:
- Superior electrical properties compared to phenolic and melamine laminates
- Better dimensional stability and lower moisture absorption than many thermoplastics
- Higher temperature resistance than polyester-based composites
- Improved machinability and ease of fabrication compared to ceramics
- Greater chemical resistance than many other polymer-based insulating materials
- Longer service life and reduced maintenance requirements in many applications
These advantages contribute to the growing popularity of 3240 epoxy sheets across various industries, offering improved performance, reliability, and cost-effectiveness in demanding applications.
Conclusion
3240 epoxy sheets have emerged as a versatile and high-performance material in the realm of electrical insulation and structural components. Their unique combination of electrical, mechanical, and thermal properties makes them indispensable in a wide range of applications across industrial, electrical, aerospace, and transportation sectors. As industries continue to demand materials that can withstand increasingly challenging environments while maintaining exceptional performance, 3240 epoxy boards stand out as a reliable solution. Their advantages over alternative materials, coupled with ongoing advancements in manufacturing techniques, position 3240 epoxy sheets as a material of choice for engineers and manufacturers seeking superior insulation and structural integrity in their designs.
