How NEMA CE Sheet Compares to Other Phenolic Laminates?

NEMA CE sheet, a high-performance phenolic laminate, stands out from standard phenolic materials due to its unique composition and enhanced properties. This engineered thermoset composite features a cotton canvas base, offering superior impact strength and rigidity compared to traditional phenolic laminates. CE grade phenolic excels in dimensional stability, creep resistance, and mechanical strength, making it ideal for demanding industrial applications. While sharing some characteristics with other phenolic grades, CE sheet distinguishes itself through improved electrical insulation, higher temperature resistance, and better machinability, positioning it as a versatile solution for various manufacturing needs.

What Are the Differences Between NEMA CE Sheet and Standard Phenolic Laminates?

Composition and Manufacturing Process

NEMA CE sheet is crafted using a specialized manufacturing process that sets it apart from standard phenolic laminates. The core difference lies in the reinforcement material and resin system used. CE grade utilizes a cotton canvas base, which provides a unique balance of strength and flexibility. This canvas substrate is impregnated with phenolic resin and subjected to heat and pressure, resulting in a dense, uniform structure with excellent mechanical properties.

Physical Characteristics

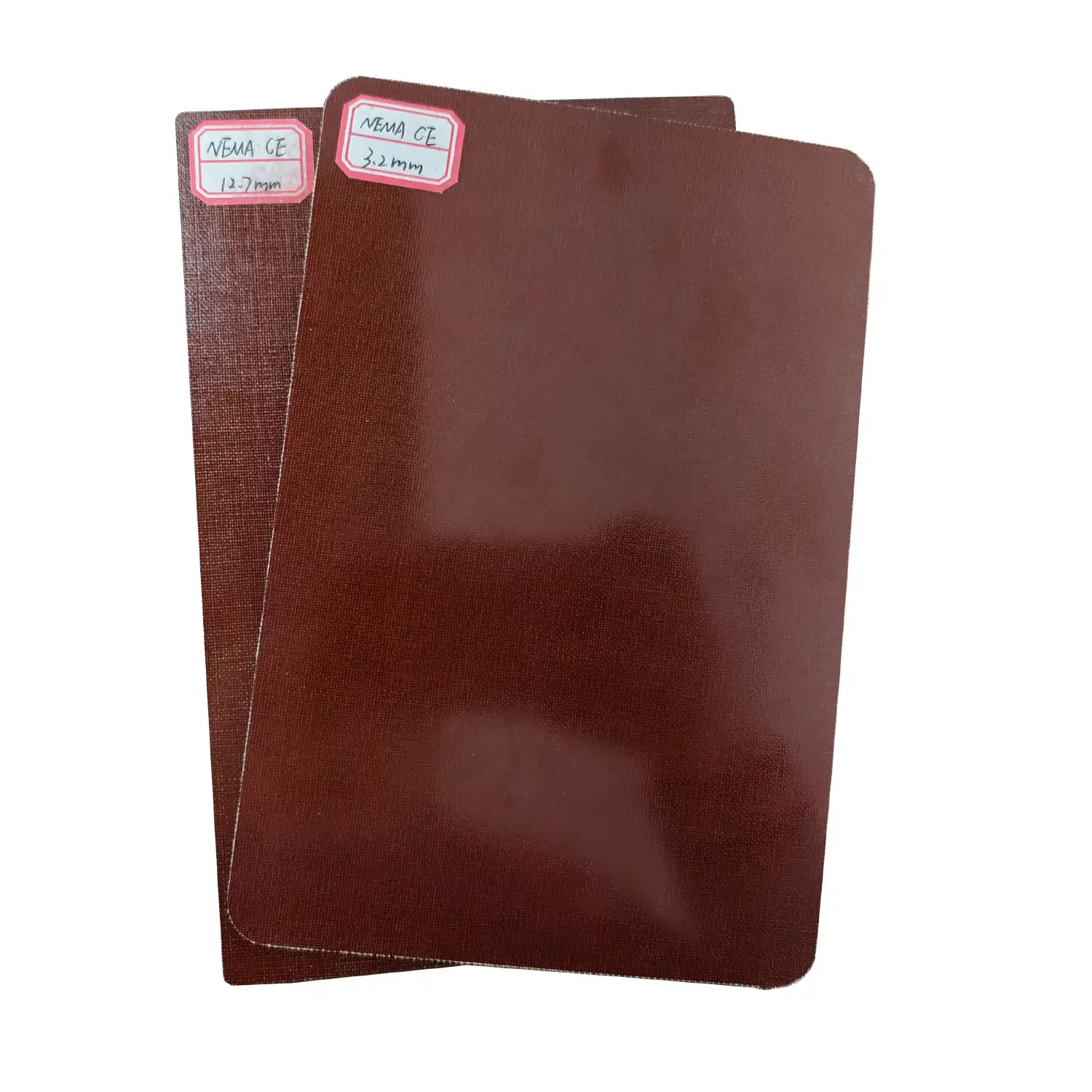

Visually, CE sheet often exhibits a distinctive appearance due to its canvas weave pattern. This texture can contribute to improved grip and surface friction in certain applications. The material typically has a darker color than some other phenolic grades, which can be advantageous in applications where aesthetics are a consideration. CE sheet also tends to have a slightly higher density compared to paper-based phenolics, contributing to its enhanced strength and durability.

Performance in Extreme Conditions

One of the hallmarks of NEMA CE sheet is its exceptional performance under extreme conditions. Unlike some standard phenolic laminates that may degrade or lose properties in harsh environments, CE grade maintains its integrity across a wider range of temperatures and chemical exposures. This resilience makes it particularly valuable in applications involving thermal cycling, exposure to corrosive substances, or high-stress mechanical environments where other materials might fail.

Comparative Mechanical and Electrical Properties

Strength and Durability Metrics

NEMA CE sheet boasts impressive mechanical properties that often surpass those of standard phenolic laminates. Its tensile strength typically exceeds that of many other grades, providing enhanced resistance to stretching and deformation under load. The material's flexural strength is also noteworthy, allowing it to withstand bending forces without failure. Additionally, CE grade exhibits superior impact resistance, making it less prone to cracking or shattering when subjected to sudden forces or shocks.

Electrical Insulation Capabilities

In terms of electrical properties, NEMA CE sheet offers excellent insulation characteristics. Its dielectric strength is generally higher than that of standard phenolic laminates, allowing it to withstand greater electrical stresses without breakdown. The material's volume resistivity and surface resistivity are also impressive, contributing to its effectiveness in preventing current leakage and maintaining electrical isolation in complex systems. These properties make CE sheet an ideal choice for applications requiring reliable electrical insulation in challenging environments.

Thermal Performance Comparison

Thermal performance is another area where NEMA CE sheet distinguishes itself. The material maintains its properties over a wider temperature range compared to many standard phenolic laminates. It exhibits lower thermal expansion, which translates to better dimensional stability in fluctuating temperature conditions. CE grade also tends to have a higher heat deflection temperature, allowing it to retain its shape and mechanical properties at elevated temperatures where other materials might soften or deform.

Advantages and Limitations in Industrial Applications

Machining and Fabrication Ease

One of the significant advantages of NEMA CE sheet in industrial applications is its excellent machinability. The material can be easily cut, drilled, and shaped using standard woodworking tools, making it highly versatile for custom fabrication. Unlike some fiberglass-reinforced composites, CE grade produces less dust and causes less tool wear during machining processes. This characteristic not only simplifies manufacturing but also contributes to a cleaner work environment and reduced tool replacement costs.

Chemical Resistance Properties

NEMA CE sheet exhibits remarkable resistance to a wide range of chemicals, outperforming many standard phenolic laminates in this aspect. It maintains its integrity when exposed to oils, greases, and many solvents, making it suitable for use in chemical processing equipment, storage tanks, and other applications where chemical resistance is crucial. However, it's important to note that while CE grade offers broad chemical resistance, it may not be suitable for all chemical environments, and compatibility should be verified for specific applications.

Cost-Effectiveness and Long-Term Value

When considering the long-term value proposition, NEMA CE sheet often emerges as a cost-effective solution despite its higher initial cost compared to some standard phenolic laminates. Its durability and extended service life in demanding applications can result in lower replacement frequencies and reduced maintenance costs. Additionally, the material's versatility allows for its use across various applications, potentially reducing inventory complexity for manufacturers. However, for applications with less demanding requirements, the higher cost of CE grade may not always be justified, and other phenolic grades might offer a more economical solution.

Conclusion

NEMA CE sheet emerges as a superior option in the realm of phenolic laminates, offering a unique combination of mechanical strength, electrical insulation, and chemical resistance. Its cotton canvas base and specialized manufacturing process result in a material that outperforms standard phenolics in many critical areas. While it may come at a higher initial cost, the long-term benefits in durability, performance, and versatility often justify the investment for demanding industrial applications. As with any material selection, careful consideration of specific application requirements is crucial to determine if CE grade is the optimal choice.

FAQs

What makes NEMA CE sheet different from other phenolic laminates?

NEMA CE sheet uses a cotton canvas base, offering higher impact strength and rigidity than standard phenolics.

Is NEMA CE sheet suitable for high-temperature applications?

Yes, CE grade maintains its properties over a wider temperature range compared to many standard phenolic laminates.

How does the machinability of NEMA CE sheet compare to other materials?

CE sheet is easily machined with standard woodworking tools, producing less dust and causing less tool wear than fiberglass-reinforced composites.

What industries commonly use NEMA CE sheet?

It's widely used in electrical, mechanical, and chemical processing industries due to its excellent insulation properties and chemical resistance.

Is NEMA CE sheet more expensive than other phenolic laminates?

While initially more costly, its durability and performance often make it cost-effective in the long run for demanding applications.
