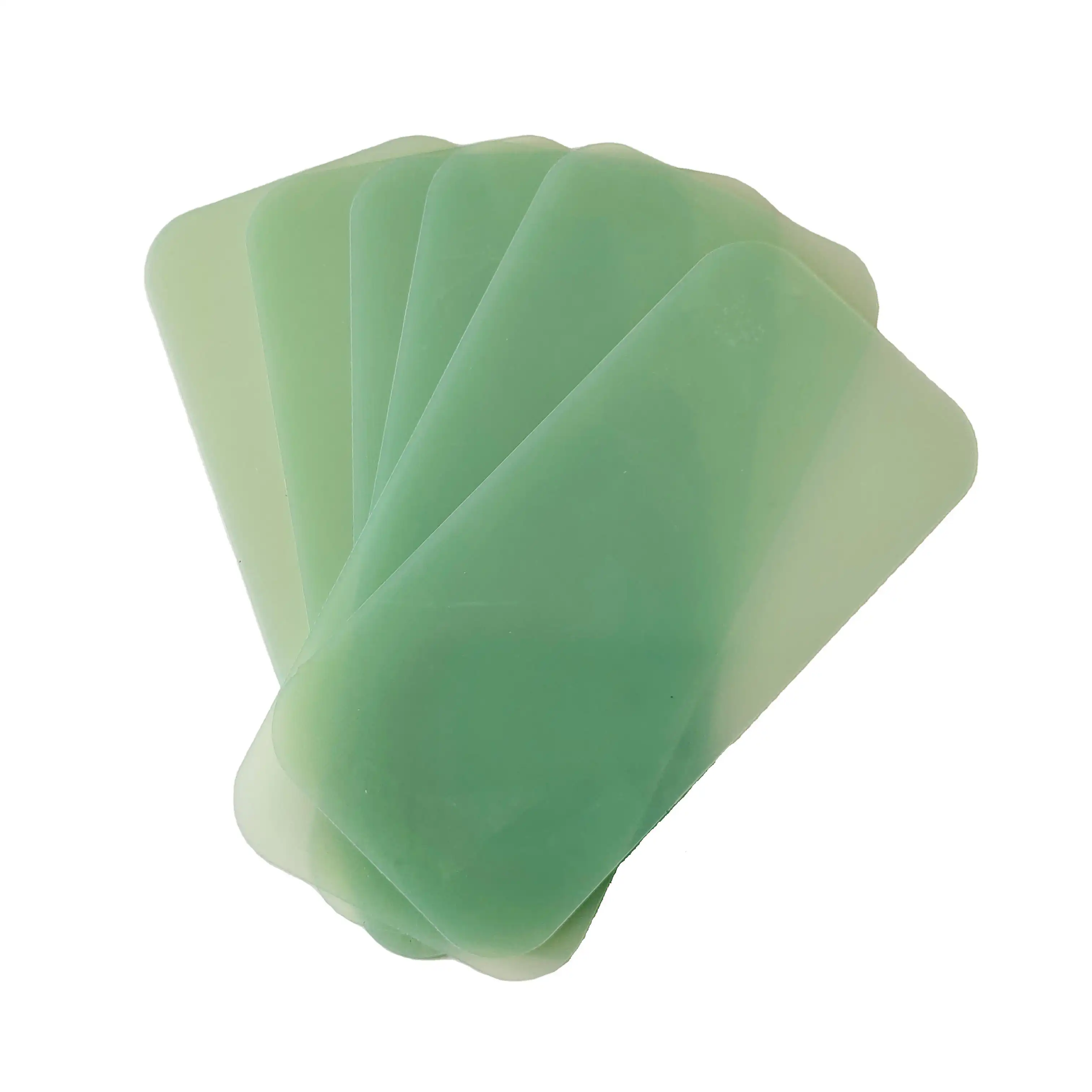

How Does Thickness Affect G10 Epoxy Sheet Strength?
Correlation Between Thickness and Structural Integrity
The thickness of G10 epoxy sheets plays a pivotal role in determining their overall strength and structural integrity. As the thickness increases, so does the material's ability to withstand various forces and stresses. This correlation is rooted in the fundamental principles of materials science, where a greater cross-sectional area typically translates to enhanced load-bearing capacity.
Thicker G10 sheets exhibit superior resistance to bending and flexing, making them ideal for applications requiring rigid, unyielding components. The additional layers of glass fiber reinforcement in thicker sheets contribute to improved tensile strength, allowing the material to withstand higher levels of stress before failure.
Impact on Flexural and Compressive Strength
Flexural strength, or the ability of a material to resist deformation under load, is significantly influenced by G10 epoxy sheet thickness. Thicker sheets demonstrate higher flexural strength, enabling them to maintain their shape and integrity under bending forces. This property is particularly valuable in applications where the material must support substantial loads without excessive deflection.
Similarly, compressive strength - the capacity to withstand loads that reduce size - increases with thickness. Thicker G10 sheets can absorb and distribute compressive forces more effectively, making them suitable for high-pressure environments or load-bearing structures.
Thickness-Dependent Dielectric Properties
G10 epoxy sheets are renowned for their excellent dielectric properties, which are also affected by thickness. Thicker sheets generally provide enhanced electrical insulation, as they create a more substantial barrier against electrical current flow. This characteristic is crucial in high-voltage applications or environments where electrical isolation is paramount.
However, it's important to note that while increased thickness improves dielectric strength, it may also affect other electrical properties such as capacitance and signal transmission in certain applications. Balancing these factors is essential when selecting the appropriate thickness for electrical and electronic uses.
Mechanical Performance Across Different G10 Epoxy Sheet Sizes
Tensile Strength Variations
The tensile strength of G10 epoxy sheets - their resistance to breaking under tension - exhibits notable variations across different sizes. Typically, thinner sheets may demonstrate higher tensile strength per unit area due to the alignment and distribution of glass fibers. However, thicker sheets offer greater overall tensile load capacity.
For instance, a 1/8-inch thick G10 sheet might have a tensile strength of approximately 50,000 psi, while a 1/4-inch sheet could reach 45,000 psi. This slight reduction in strength per unit area is often offset by the increased cross-sectional area, resulting in a higher total load-bearing capacity for thicker sheets.
Shear Strength Considerations
Shear strength, the ability to resist forces that cause internal slippage of layers, is another critical property affected by G10 epoxy sheet size. Generally, shear strength increases with thickness, but not necessarily in a linear fashion. Thicker sheets provide more resistance to shearing forces due to the increased number of reinforcement layers and the greater bonding area between these layers.
In practical terms, a 1/2-inch G10 sheet might exhibit a shear strength of around 22,000 psi, while a 1/16-inch sheet could have a shear strength of approximately 18,000 psi. This difference becomes significant in applications where the material is subject to high shear stresses, such as in mechanical fastening or high-torque environments.
Impact Resistance and Toughness
Impact resistance and toughness, crucial for applications involving sudden loads or impacts, also vary with G10 epoxy sheet thickness. Thicker sheets generally demonstrate superior impact resistance due to their ability to absorb and distribute energy more effectively. This increased toughness makes thicker G10 sheets ideal for applications in rugged environments or where occasional impacts are expected.
For example, a 3/8-inch G10 sheet might have an Izod impact strength of 14 ft-lbs/inch, while a 1/8-inch sheet could measure around 11 ft-lbs/inch. This difference can be significant in applications such as protective panels, structural components in aerospace, or high-stress mechanical parts.
Selecting the Right Thickness for Industrial Applications
Electrical and Electronic Applications
In electrical and electronic applications, selecting the appropriate G10 epoxy sheet thickness is crucial for optimal performance and safety. For circuit boards and insulators in low-voltage applications, thinner sheets (1/32" to 1/16") often suffice, providing adequate insulation while minimizing space requirements. However, for high-voltage applications or situations requiring enhanced arc resistance, thicker sheets (1/8" to 1/4") are preferable.
When designing switchgear components or transformer insulation, consider both the voltage requirements and the mechanical stresses involved. A thickness range of 3/16" to 1/2" may be suitable, depending on the specific application and environmental factors such as temperature and humidity.
Mechanical and Structural Uses
For mechanical and structural applications, G10 epoxy sheet thickness selection should prioritize load-bearing capacity and dimensional stability. In high-stress environments, such as aerospace components or industrial machinery parts, thicker sheets (1/4" to 1") provide superior strength and rigidity. These thicknesses can withstand substantial mechanical loads while maintaining tight tolerances.
In applications where weight is a concern, such as in lightweight vehicles or portable equipment, a balance between strength and weight is essential. Medium thicknesses (1/8" to 3/16") often offer an optimal compromise, providing adequate strength while keeping the overall weight manageable.
Thermal and Chemical Resistance Considerations
When thermal and chemical resistance are primary concerns, the thickness of G10 epoxy sheets plays a crucial role in performance. In high-temperature environments or applications involving corrosive chemicals, thicker sheets (3/8" to 3/4") provide enhanced resistance and longevity. The additional material acts as a barrier, slowing heat transfer and chemical penetration.
For cryogenic applications or environments with extreme temperature fluctuations, consider using thicker G10 sheets (1/2" to 1") to ensure dimensional stability and prevent thermal shock. These thicknesses offer improved insulation properties and better resistance to thermal expansion and contraction cycles.
Conclusion
Understanding the relationship between G10 epoxy sheet thickness and strength is crucial for optimizing its use across various industrial applications. Thicker sheets generally offer enhanced mechanical properties, improved electrical insulation, and better resistance to environmental factors. However, the ideal thickness depends on specific application requirements, balancing factors such as strength, weight, and cost-effectiveness. By carefully considering these aspects and leveraging the insights provided in this guide, engineers and designers can make informed decisions to harness the full potential of G10 epoxy sheets in their projects, ensuring optimal performance and longevity.
FAQs
What is the maximum temperature G10 epoxy sheets can withstand?
G10 epoxy sheets can typically withstand temperatures up to 140°C (284°F) continuously.
How does G10 compare to other epoxy-based materials?
G10 offers superior mechanical strength and electrical insulation properties compared to many other epoxy-based materials.
Can G10 epoxy sheets be machined easily?
Yes, G10 can be machined using standard woodworking and metalworking tools, though specialized techniques may be required for precision work.
Are G10 epoxy sheets suitable for outdoor applications?
While G10 has good weather resistance, prolonged UV exposure can degrade its properties. For outdoor use, additional protective measures may be necessary.
Expert G10 Epoxy Sheet Solutions from J&Q
At J&Q, we leverage over two decades of experience in manufacturing and supplying high-quality insulating sheets, including G10 epoxy sheets. Our expertise in foreign trade and comprehensive logistics solutions ensure seamless service from production to delivery. For tailored G10 epoxy sheet solutions that meet your specific thickness and strength requirements, contact our expert team at info@jhd-material.com. Trust J&Q for superior quality and unmatched customer service in G10 epoxy sheet manufacturing.
