Temperature Thresholds for Maintaining FR4 Dielectric Strength
Critical Temperature Points

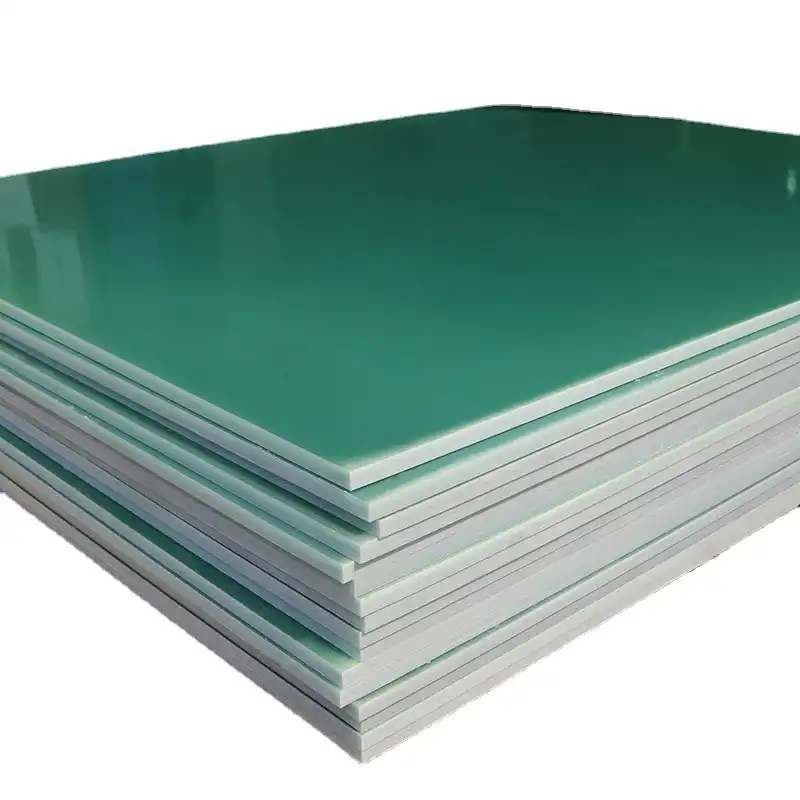

FR4 sheet exhibits varying dielectric strength at different temperature ranges. The material maintains optimal insulation properties at room temperature, typically between 20°C to 25°C. As temperatures increase, the dielectric strength gradually decreases. A notable decline occurs around 80°C to 90°C, where the material begins to show signs of thermal stress. The glass transition temperature (Tg) of FR4, usually between 130°C to 140°C, marks a critical point where significant changes in material properties occur.
Dielectric Strength Variations
The dielectric strength of FR4 sheet decreases non-linearly with temperature rise. At room temperature, FR4 typically exhibits a dielectric strength of about 20-30 kV/mm. This value can decrease by 20-30% when temperatures reach 80°C. As the material approaches its Tg, the dielectric strength may drop by 50% or more compared to room temperature values. Beyond Tg, the insulation performance deteriorates rapidly, potentially leading to electrical breakdown.
Temperature-Induced Structural Changes
Temperature increases cause structural changes within the FR4 material, affecting its insulation performance. As temperatures rise, the polymer chains in the epoxy matrix become more mobile, leading to increased free volume within the material. This structural change allows for easier movement of charge carriers, resulting in decreased insulation resistance. Additionally, thermal expansion can create micro-voids or increase existing ones, potentially creating paths for electrical breakdown at elevated temperatures.
Thermal Degradation Mechanisms in FR4 Epoxy Materials
Chemical Decomposition Processes
FR4 epoxy materials undergo various chemical decomposition processes when exposed to elevated temperatures. Oxidative degradation is a primary mechanism, where oxygen reacts with the polymer chains, leading to chain scission and the formation of carbonyl groups. This process weakens the material's structure and reduces its insulation capabilities. Hydrolysis can also occur, especially in humid environments, breaking down ester linkages in the epoxy resin. These chemical changes alter the material's electrical properties, diminishing its effectiveness as an insulator.
Physical Property Changes
Thermal exposure induces significant physical property changes in FR4 sheets. As temperatures increase, the epoxy matrix softens, leading to a decrease in mechanical strength and dimensional stability. This softening can cause warping or delamination in multi-layer structures, potentially creating paths for electrical current flow. Additionally, thermal cycling can lead to the formation of microcracks due to differential thermal expansion between the glass fibers and epoxy matrix, further compromising the material's insulation properties.
Long-term Thermal Aging Effects
Prolonged exposure to elevated temperatures results in cumulative degradation of FR4 materials. Over time, continuous thermal stress can lead to crosslinking or chain scission of polymer molecules, altering the material's fundamental structure. This aging process typically manifests as a gradual decrease in electrical insulation properties, including reduced dielectric strength and increased dissipation factor. The rate of thermal aging accelerates as temperatures approach and exceed the material's glass transition temperature, highlighting the importance of operating within specified temperature limits for long-term reliability.
Heat Resistance and Continuous Operating Temperature Limits
Defining Thermal Classes for FR4
FR4 materials are categorized into different thermal classes based on their heat resistance capabilities. These classifications typically range from Class B (130°C) to Class H (180°C), with some high-performance variants reaching Class N (200°C). Each class represents the maximum continuous operating temperature at which the material can maintain its essential properties over an extended period. The thermal class is determined by factors such as the epoxy resin formulation, curing process, and reinforcement materials used in the FR4 sheet.
Factors Influencing Heat Resistance
Several factors contribute to the heat resistance of FR4 sheets. The type and quality of epoxy resin used play a crucial role, with high-temperature formulations offering improved thermal stability. The glass transition temperature (Tg) of the epoxy system is a key indicator of heat resistance. Higher Tg values generally correlate with better performance at elevated temperatures. The reinforcement material, typically glass fibers, also influences heat resistance. The interface between the fibers and resin matrix is critical, as strong bonding helps maintain structural integrity under thermal stress.
Implications for Design and Application
Understanding the heat resistance and continuous operating temperature limits of FR4 sheets is crucial for proper design and application. Engineers must consider the maximum temperatures the material will encounter during operation, including both ambient conditions and localized heating from components. Safety margins should be incorporated to account for temperature fluctuations and potential hotspots. In applications where temperatures may approach or exceed the material's limits, alternative high-temperature laminates or cooling strategies may be necessary. Regular monitoring and thermal management are essential to ensure the long-term reliability and performance of FR4-based systems in high-temperature environments.
Conclusion
Temperature significantly impacts the insulation performance of FR4 sheets, with critical thresholds and degradation mechanisms playing key roles. As temperatures rise, dielectric strength decreases, particularly near the glass transition temperature. Chemical decomposition and physical property changes occur, affecting long-term reliability. Understanding these temperature-dependent behaviors is crucial for designing systems that operate within FR4's thermal limits. By considering heat resistance classifications and factors influencing thermal stability, engineers can optimize FR4 usage in various applications, ensuring reliable insulation performance across diverse operating conditions.
FAQ
What is the typical glass transition temperature (Tg) of FR4 sheet?
The typical Tg of FR4 sheet is between 130°C and 140°C.
How does temperature affect the dielectric strength of FR4?
As temperature increases, the dielectric strength of FR4 gradually decreases, with significant drops occurring near and beyond its Tg.
What are the main thermal degradation mechanisms in FR4 materials?
The main thermal degradation mechanisms include oxidative degradation, hydrolysis, and physical property changes such as softening and microcrack formation.
