How Are G10 Sheets Manufactured and Customized for Specific Needs?

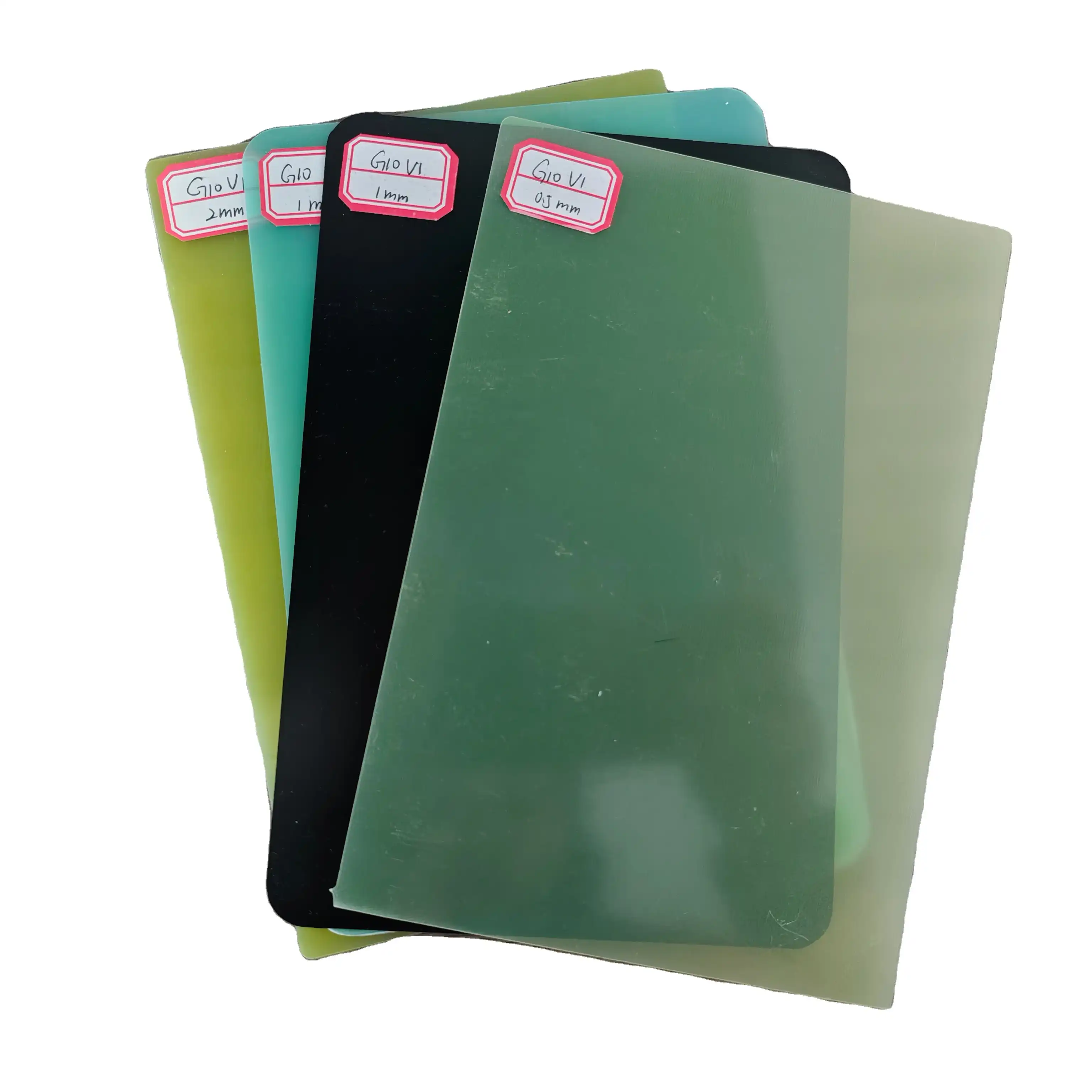

G10 sheets are manufactured through a meticulous process that combines fiberglass reinforcement with epoxy resin. The production begins by impregnating glass fabric with epoxy resin, creating prepreg layers. These layers are then stacked and subjected to heat and pressure in large presses, forming solid laminated sheets. Customization occurs through various methods, including adjusting resin formulations, altering fiber orientations, and modifying curing cycles to achieve specific properties. Further customization involves cutting, machining, and surface treatments to meet precise dimensional and finish requirements for diverse applications across industries like electronics, aerospace, and marine.

Overview Of The Laminating And Curing Process

Raw Material Preparation

The production of G10 sheets starts with the meticulous sourcing of high-performance raw materials. E-glass fibers are predominantly selected due to their superior tensile strength and dielectric properties. The epoxy resin is specially formulated to offer an optimal blend of mechanical robustness, thermal stability, and resistance to chemicals. Various additives, such as flame retardants or UV stabilizers, are introduced to improve specific functional attributes based on application requirements. Strict quality checks are applied to all materials to ensure consistency and performance in the final product.

Prepreg Formation

In this phase, the woven glass fabric for G10 sheets is saturated with the prepared epoxy resin within a controlled-environment chamber to ensure uniform impregnation. This prepregging process is critical for achieving consistent resin distribution and minimizing voids or dry spots. The resin content is precisely regulated to maintain an ideal fiber-to-resin ratio, which directly affects the mechanical and electrical properties of the final G10 sheet. The prepreg is then partially cured to a B-stage condition, providing a tacky surface that facilitates subsequent layup operations while preserving reactivity for final curing.

Layup And Consolidation

Multiple layers of prepreg are stacked in predetermined orientations to build up thickness and control anisotropic properties. The stack is placed between caul plates and release films to ensure dimensional accuracy and smooth surface finish. The entire assembly is transferred to a hydraulic press or autoclave, where it undergoes a carefully designed cure cycle under elevated temperature and pressure. This consolidation process promotes complete polymerization of the resin, eliminates entrapped air, and results in a fully consolidated, high-density G10 sheet with consistent structural integrity.

Mechanical And Surface Finishing Customizations

Precision Cutting And Machining

Once the G10 sheets are cured, they undergo various mechanical processes to meet specific dimensional requirements. Computer Numerical Control (CNC) machines are employed for precision cutting, drilling, and milling operations. These advanced manufacturing techniques allow for tight tolerances and complex geometries, catering to the exacting needs of industries such as aerospace and electronics.

Surface Treatments

The surface of G10 sheets can be customized through various treatments to enhance their performance in specific applications. Abrasive blasting or chemical etching may be used to increase surface roughness for improved adhesion in bonding applications. Conversely, polishing techniques can create ultra-smooth surfaces for applications requiring minimal friction or high reflectivity.

Coating And Lamination

For enhanced performance in specialized applications, G10 sheets may receive additional coatings or be laminated with other materials. Conductive coatings can be applied for EMI shielding purposes, while specialized polymers may be used to improve chemical resistance or reduce wear. Lamination with copper foil is common in the production of printed circuit boards, combining the excellent dielectric properties of G10 with the conductivity of copper.

Quality Control Measures In Manufacturing G10 Sheets

In-Process Monitoring

Throughout the manufacturing process, rigorous quality control measures are implemented to ensure consistency and reliability. Real-time monitoring of critical parameters such as temperature, pressure, and cure time is essential during the lamination process. Advanced sensor systems and data logging equipment are utilized to maintain precise control over these variables, ensuring that each batch of G10 sheets meets the specified requirements.

Physical And Mechanical Testing

After production, G10 sheets undergo a battery of tests to verify their properties and performance. These tests include flexural strength measurements, tensile testing, and impact resistance evaluations. Dielectric strength and breakdown voltage tests are conducted to confirm the material's electrical insulation capabilities. Dimensional stability is assessed through thermal cycling and humidity exposure tests, ensuring that the G10 sheets maintain their integrity under various environmental conditions.

Non-Destructive Evaluation

Advanced non-destructive testing techniques are employed to inspect G10 sheets for internal defects or inconsistencies. Ultrasonic scanning is used to detect delaminations or voids within the laminate structure. Thermographic imaging can reveal areas of non-uniform resin distribution or curing. These methods allow for comprehensive quality assurance without compromising the integrity of the finished product, ensuring that only flawless G10 sheets reach the end-users.

Conclusion

The manufacturing and customization of G10 sheets involve a complex interplay of materials science, process engineering, and quality control. From the initial selection of raw materials to the final surface treatments, each step is carefully orchestrated to produce sheets with precise properties tailored to specific applications. The versatility of G10 sheets, combined with advanced manufacturing techniques, allows for a wide range of customizations, making them indispensable in industries demanding high-performance composite materials. As technology advances, the potential for further refinement and customization of G10 sheets continues to expand, promising even more innovative applications in the future.

FAQs

What are the primary applications of G10 sheets?

G10 sheets are widely used in electronics for printed circuit boards, aerospace for structural components, marine industry for moisture-resistant parts, and in electrical insulation applications.

How does the manufacturing process affect the properties of G10 sheets?

The manufacturing process, including resin formulation, fiber orientation, and curing conditions, directly influences the mechanical strength, electrical insulation, and chemical resistance of G10 sheets.

Can G10 sheets be customized for specific thermal requirements?

Yes, G10 sheets can be customized for specific thermal needs by adjusting the resin system and curing process to enhance thermal stability and resistance to extreme temperatures.

Experience the Superior Quality of G10 Sheets from J&Q

At J&Q, we leverage over 20 years of expertise in insulating sheet production to deliver top-tier G10 sheets tailored to your specific needs. As a trusted G10 sheet supplier, our state-of-the-art manufacturing processes and rigorous quality control ensure unparalleled performance and reliability. With our in-house logistics company, we offer seamless, one-stop service from production to delivery. For premium G10 sheets and expert guidance, contact us at info@jhd-material.com.
