Understanding G10 Epoxy Sheets and Phenolic Cotton Sheets
Composition and Manufacturing Process

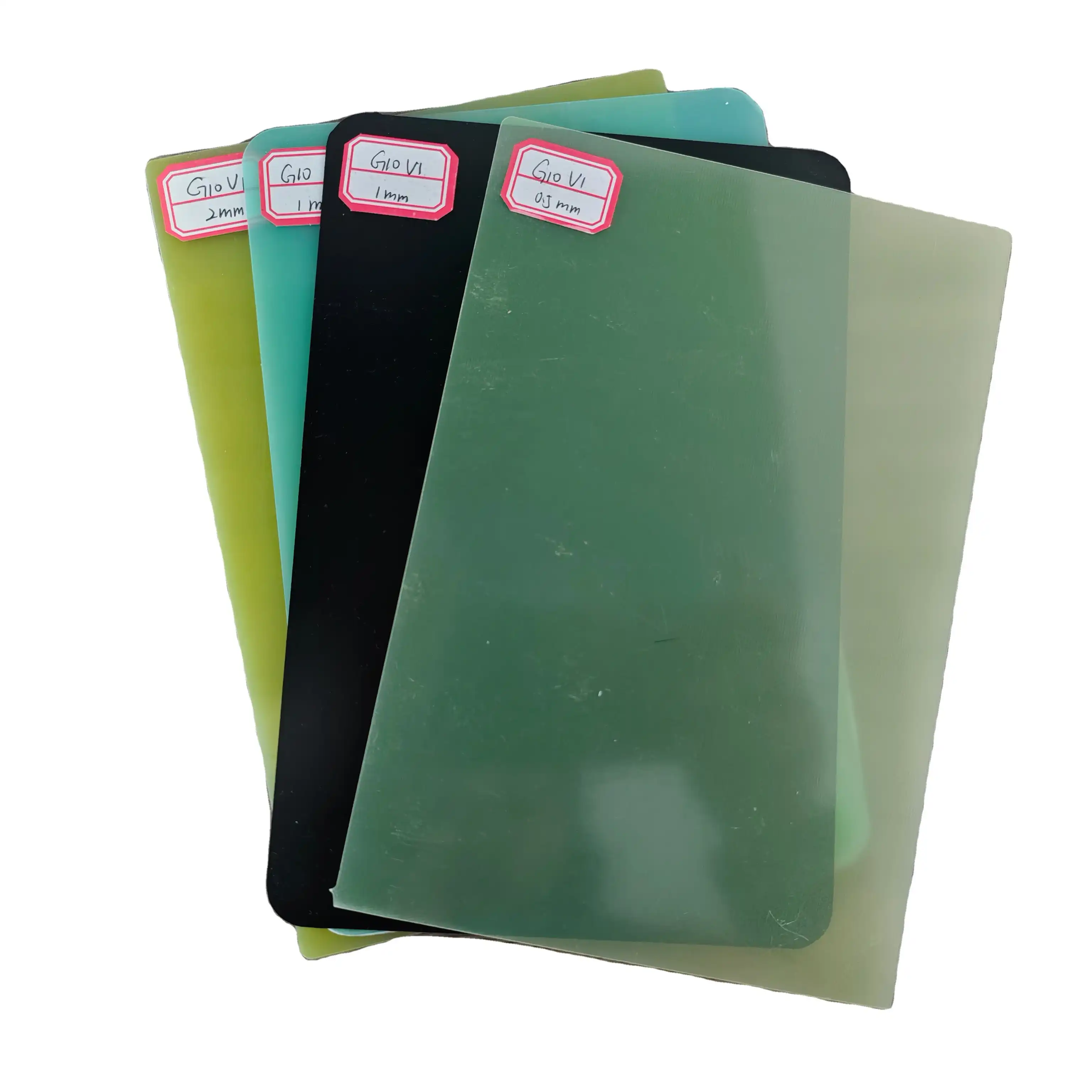

G10 epoxy sheets are composite materials consisting of a fiberglass reinforcement embedded in an epoxy resin matrix. The manufacturing process involves layering multiple sheets of fiberglass cloth and impregnating them with epoxy resin under high pressure and temperature. This results in a dense, homogeneous material with exceptional mechanical and electrical properties.
Phenolic cotton sheets, on the other hand, are made by impregnating layers of cotton fabric with phenolic resin. The sheets are then compressed and cured at elevated temperatures, creating a laminate with excellent dimensional stability and heat resistance. The cotton fibers provide strength and toughness, while the phenolic resin imparts chemical resistance and electrical insulation properties.
Key Properties and Characteristics
G10 epoxy sheets boast remarkable strength-to-weight ratios, making them ideal for applications where weight reduction is crucial. They exhibit excellent electrical insulation properties, low moisture absorption, and high dimensional stability across a wide temperature range. These sheets also demonstrate good machinability and can be easily drilled, milled, and cut without delamination.
Phenolic cotton sheets offer superior mechanical strength, low thermal conductivity, and excellent electrical insulation. They maintain their properties under high temperatures and possess good resistance to creep and deformation. The material's ability to withstand harsh environments and its self-extinguishing properties make it a popular choice for various industrial applications.
Applications in Various Industries
G10 epoxy sheets find extensive use in aerospace components, circuit boards, industrial tooling, and high-performance sports equipment. Their combination of strength and insulation properties makes them suitable for electrical switchgear, transformer parts, and insulating bushings.
Phenolic cotton sheets are widely employed in electrical panels, insulating components, and structural parts in the automotive and aerospace industries. They are also utilized in the manufacture of gears, bearings, and seals for industrial machinery, where their dimensional stability and wear resistance are highly valued.
CNC Machining Techniques for G10 and Phenolic Sheets
Tooling and Cutting Strategies
CNC machining of G10 epoxy sheets and phenolic cotton sheets requires specialized tooling and cutting strategies to achieve optimal results. Carbide end mills with sharp, polished cutting edges are often employed to minimize delamination and ensure clean cuts. High-speed steel (HSS) tools can also be used for certain operations, but they may wear more quickly when machining these abrasive materials.
To prevent heat buildup and maintain dimensional accuracy, CNC operators typically employ climb milling techniques and implement appropriate feed rates and cutting speeds. The use of coolants or compressed air helps dissipate heat and remove chips efficiently, ensuring a smooth cutting process and extending tool life.
Precision Machining Techniques
Achieving tight tolerances and intricate features in G10 and phenolic parts demands advanced machining techniques. CNC operators leverage multi-axis machining capabilities to create complex geometries and undercuts that would be challenging or impossible with conventional machining methods. 5-axis CNC machines, in particular, allow for simultaneous movement along multiple axes, enabling the production of highly sophisticated components with minimal setup changes.
To enhance surface finish and maintain dimensional accuracy, CNC programmers often implement toolpath optimization algorithms. These strategies minimize tool engagement and ensure consistent cutting forces throughout the machining process. Additionally, the use of high-frequency spindles and rigid machine setups helps reduce vibration and chatter, resulting in superior part quality.
Overcoming Material-Specific Challenges
Machining G10 epoxy sheets and phenolic cotton sheets presents unique challenges that require specialized approaches. The abrasive nature of these materials can lead to accelerated tool wear, necessitating frequent tool changes and careful monitoring of cutting parameters. To address this issue, CNC operators may employ tool wear compensation techniques and implement adaptive feed control systems to maintain consistent cutting conditions throughout the machining process.
Another challenge is the potential for delamination, particularly when machining thin sections or near the edges of the material. To mitigate this risk, CNC programmers design toolpaths that minimize stress on the laminate structure and employ backing plates or sacrificial layers to support the workpiece during machining. Additionally, the use of specialized cutting tools with geometry optimized for composite materials helps prevent fiber pullout and ensure clean, delamination-free cuts.
Advantages of CNC Machining G10 and Phenolic Sheets
Precision and Repeatability
CNC machining of G10 epoxy sheets and phenolic cotton sheets offers unparalleled precision and repeatability in the production of complex parts. The computer-controlled nature of CNC machines allows for the execution of intricate toolpaths with micron-level accuracy, ensuring that each component meets exact specifications. This level of precision is particularly crucial in applications such as aerospace and electronics, where tight tolerances are essential for proper functionality and safety.
Furthermore, the repeatability of CNC machining ensures consistent quality across production runs, whether manufacturing a single prototype or a large batch of components. This consistency is invaluable for industries that require uniform performance and interchangeability of parts, such as in the production of electrical insulators or mechanical components for industrial machinery.
Design Flexibility and Customization
The versatility of CNC machining enables designers and engineers to explore a wide range of geometric possibilities when working with G10 and phenolic sheets. Complex contours, internal cavities, and intricate surface textures can be readily achieved, allowing for the creation of highly customized parts tailored to specific application requirements. This design flexibility is particularly advantageous in prototype development and small-batch production, where rapid iterations and unique geometries are often necessary.
Moreover, CNC machining facilitates the integration of multiple features and functions into a single component, reducing the need for assembly and improving overall product reliability. For instance, a single G10 part can be machined to include both structural elements and electrical insulation features, streamlining manufacturing processes and enhancing product performance.
Cost-Effectiveness for Small to Medium Production Runs
While CNC machining may have higher initial setup costs compared to some other manufacturing methods, it proves highly cost-effective for small to medium production runs of G10 and phenolic parts. The ability to quickly transition between different part designs without the need for expensive tooling changes or mold creation makes CNC machining an economical choice for diverse product lines or frequent design iterations.
Additionally, the precision of CNC machining minimizes material waste and reduces the likelihood of defects, leading to lower overall production costs. The automated nature of CNC processes also contributes to cost savings by reducing labor requirements and increasing production efficiency. For manufacturers working with high-value materials like G10 epoxy sheets, these factors combine to offer a compelling value proposition, especially when considering the superior quality and consistency of the finished parts.
Conclusion
CNC machining of G10 epoxy sheets and phenolic cotton sheets represents a pinnacle of precision manufacturing, enabling the production of high-performance components across diverse industries. By leveraging advanced tooling, cutting strategies, and multi-axis capabilities, CNC machining unlocks the full potential of these exceptional materials. The resulting parts exhibit unparalleled accuracy, consistency, and functionality, meeting the exacting demands of modern engineering applications. As technology continues to evolve, CNC machining of G10 and phenolic sheets will undoubtedly play an increasingly crucial role in driving innovation and pushing the boundaries of what's possible in precision part manufacturing.
