Understanding CE Phenolic Sheet Composition and Properties
Chemical Composition of CE Phenolic Sheet

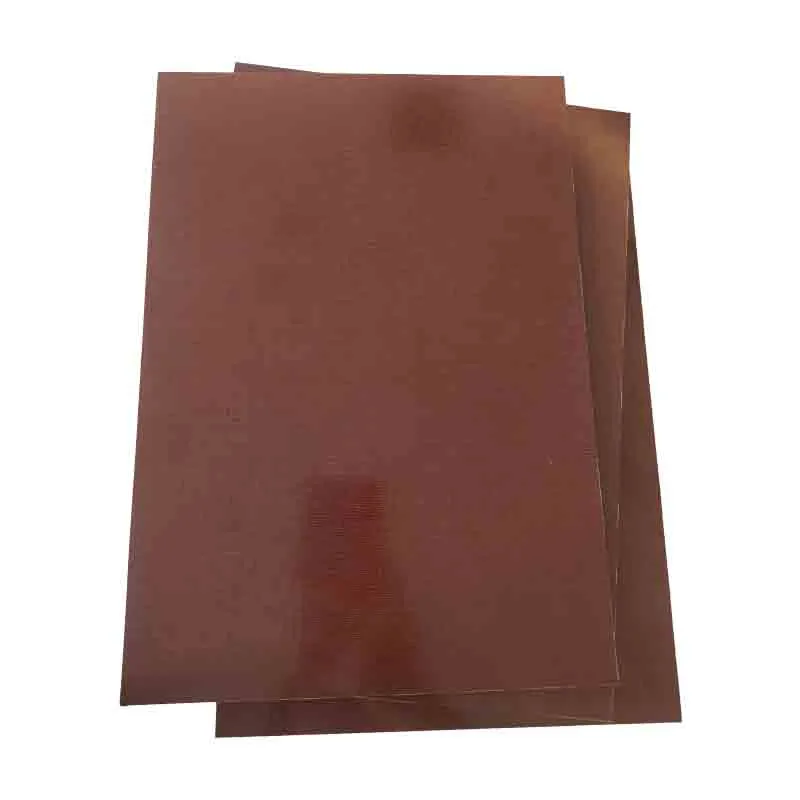

CE phenolic sheet is a high-performance composite material engineered for superior chemical resistance. Its foundation lies in the phenol-formaldehyde resin, a thermoset polymer known for its exceptional strength and durability. This resin is reinforced with cellulose fibers, typically in the form of paper or cotton linters, which provide additional structural integrity and dimensional stability.
The manufacturing process involves impregnating layers of cellulose material with the phenolic resin, then subjecting the composite to high pressure and temperature. This process, known as compression molding, results in a dense, homogeneous material with a unique set of properties. The final product exhibits a dark brown or black color, characteristic of phenolic resins.
Key Properties Contributing to Chemical Resistance
Several inherent properties of CE phenolic sheet contribute to its exceptional chemical resistance:
- Low Porosity: The high-pressure manufacturing process creates a material with minimal internal voids, reducing the pathways for chemical penetration.
- Cross-linked Structure: The phenolic resin forms a tightly cross-linked network at the molecular level, creating a barrier against chemical ingress.
- Thermal Stability: CE phenolic sheet maintains its properties over a wide temperature range, enhancing its resistance to chemical reactions accelerated by heat.
- Low Moisture Absorption: The hydrophobic nature of the cured resin limits water absorption, which could otherwise facilitate chemical degradation.
Comparison with Other Insulating Materials
When compared to other insulating materials, CE phenolic sheet often outperforms in terms of chemical resistance. For instance, while polyethylene and polypropylene offer good resistance to some chemicals, they may degrade when exposed to strong oxidizing agents or certain organic solvents. Fiberglass composites, another common insulating material, can be susceptible to attack by alkaline solutions.
CE phenolic sheet, on the other hand, maintains its integrity across a broader spectrum of chemical environments. Its resistance to acids, bases, and organic solvents makes it a versatile choice for various industrial applications where chemical exposure is a concern.
Mechanisms of Chemical Resistance in CE Phenolic Sheet
Molecular Barrier Formation
The chemical resistance of CE phenolic sheet stems primarily from its ability to form an effective molecular barrier against corrosive substances. This barrier formation occurs at multiple levels within the material's structure.
At the molecular level, the phenolic resin's cross-linked network creates a maze-like structure that impedes the movement of chemical molecules. The dense packing of polymer chains leaves little free volume for chemicals to penetrate or diffuse through the material. Moreover, the strong covalent bonds within the polymer network are resistant to cleavage by many chemical agents, further enhancing the sheet's durability.
The cellulose reinforcement also plays a role in barrier formation. The fibers, thoroughly impregnated with resin, create additional tortuosity in the material's structure. This increased path length for potential chemical penetration effectively slows down the rate of chemical attack.
Surface Interactions and Repellency
The surface of CE phenolic sheet exhibits properties that contribute to its chemical resistance. Upon curing, the phenolic resin forms a smooth, relatively non-reactive surface. This surface characteristic reduces the likelihood of chemical interactions that could initiate corrosion or degradation.
Furthermore, the cured phenolic surface tends to be hydrophobic, meaning it repels water-based solutions. This property is particularly beneficial in resisting attack from aqueous acids and bases. The hydrophobicity also helps prevent the accumulation of corrosive solutions on the surface, which could otherwise lead to localized attacks over time.
In some cases, the surface of CE phenolic sheet can be further modified to enhance its chemical resistance. Techniques such as post-curing or the application of specialized coatings can create an even more impervious barrier against specific chemical threats.
Chemical Neutralization and Adsorption
While CE phenolic sheet primarily resists chemical attack through barrier mechanisms, it also exhibits some capacity for chemical neutralization and adsorption. These secondary mechanisms can provide an additional layer of protection against corrosive agents.
The phenolic structure contains a small number of unreacted functional groups, primarily hydroxyl (-OH) groups. These groups can potentially react with and neutralize certain corrosive species, particularly in the case of acidic compounds. While this neutralization capacity is limited and should not be relied upon as the primary means of protection, it can contribute to the overall chemical resistance of the material.
Additionally, the complex structure of CE phenolic sheet allows for some degree of physical adsorption of chemical species. This adsorption can temporarily immobilize corrosive agents, slowing their progression through the material. However, it's important to note that this mechanism is most effective against low concentrations of chemicals and should not be considered a long-term solution for high-exposure environments.
Applications and Considerations for CE Phenolic Sheet in Corrosive Environments
Industrial Applications Leveraging Chemical Resistance
The exceptional chemical resistance of CE phenolic sheet makes it an ideal material for various industrial applications where exposure to corrosive substances is a concern. Some key areas where this material finds extensive use include:
- Chemical Processing Equipment: CE phenolic sheet is used in the fabrication of tanks, vessels, and piping components for handling corrosive chemicals.
- Electrical Insulation: In environments where electrical components may be exposed to corrosive atmospheres, CE phenolic sheet provides reliable insulation.
- Laboratory Furniture: Countertops and work surfaces in chemical laboratories often utilize CE phenolic sheet due to its resistance to a wide range of laboratory reagents.
- Automotive Components: Certain under-hood components in vehicles benefit from the material's resistance to automotive fluids and chemicals.
- Marine Applications: CE phenolic sheet's resistance to saltwater and marine chemicals makes it suitable for various marine industry applications.
Factors Affecting Long-term Performance
While CE phenolic sheet offers excellent chemical resistance, several factors can influence its long-term performance in corrosive environments:
- Chemical Concentration: Higher concentrations of corrosive chemicals can accelerate degradation, even in resistant materials.
- Temperature: Elevated temperatures can increase the rate of chemical reactions, potentially compromising the material's resistance over time.
- Mechanical Stress: The presence of mechanical stress or fatigue can create pathways for chemical ingress, accelerating corrosion.
- UV Exposure: Prolonged exposure to ultraviolet light can cause surface degradation, potentially reducing chemical resistance.
- Edge Exposure: Cut edges or machined surfaces may have slightly reduced chemical resistance compared to the molded surface.
Best Practices for Maximizing Chemical Resistance
To ensure optimal performance and longevity of CE phenolic sheet in corrosive environments, consider the following best practices:
- Proper Material Selection: Choose the appropriate grade of CE phenolic sheet based on the specific chemical exposure expected in the application.
- Design Considerations: Minimize sharp corners and edges in component design to reduce stress concentration points.
- Surface Protection: Where applicable, use protective coatings or laminates to enhance chemical resistance, especially for cut edges.
- Regular Inspection: Implement a routine inspection schedule to detect early signs of chemical attack or degradation.
- Temperature Management: Control operating temperatures within the material's recommended range to prevent accelerated chemical reactions.
- Proper Cleaning: Use compatible cleaning agents and methods to maintain the surface integrity of the CE phenolic sheet.
Conclusion
CE phenolic sheet stands as a pinnacle of chemical resistance in the realm of insulating materials. Its unique composition, combining phenol-formaldehyde resin with cellulose reinforcement, creates a formidable barrier against a wide spectrum of corrosive agents. The material's dense, cross-linked structure, coupled with its low porosity and surface properties, provides multi-faceted protection against chemical attack. While factors such as concentration, temperature, and mechanical stress can influence its long-term performance, proper selection and application of CE phenolic sheet can ensure lasting resistance in even the most demanding corrosive environments. As industries continue to grapple with challenging chemical exposures, CE phenolic sheet remains an indispensable solution, offering reliability and durability where it matters most.
