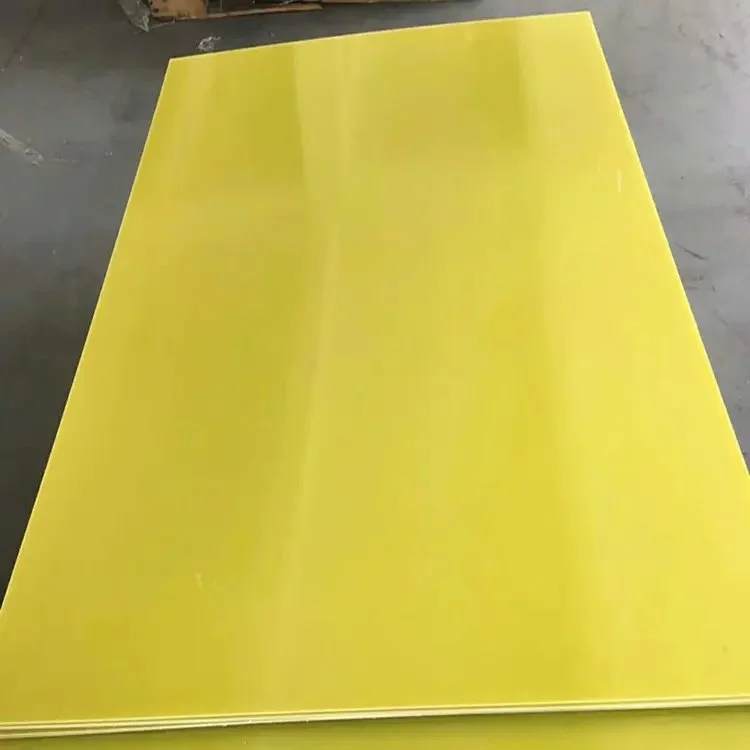

High-Performance 3240 Epoxy Sheet for Power and Automation Systems

3240 epoxy sheet emerges as a cornerstone material in power and automation systems, offering unparalleled performance in demanding environments. This high-grade composite, crafted from epoxy resin and fiberglass, boasts exceptional electrical insulation properties, mechanical strength, and thermal stability. Its versatility shines in critical applications like transformers, switchgear, and control panels, where reliability is paramount. The sheet's ability to maintain its integrity under extreme conditions - from high voltages to fluctuating temperatures - makes it an indispensable component in ensuring the efficiency and longevity of modern electrical infrastructure.

What Defines Its High-Performance Characteristics for Demanding Environments?

Superior Electrical Insulation Properties

3240 epoxy sheet exhibits remarkable dielectric strength, effectively preventing electrical breakdown even under high voltage stress. Its low dielectric constant minimizes energy loss, enhancing overall system efficiency. The material's excellent volume and surface resistivity contribute to its outstanding insulation capabilities, crucial for maintaining the integrity of electrical components in power distribution networks and automation equipment.

Exceptional Mechanical Robustness

The composite structure of 3240 epoxy sheet imparts high tensile and flexural strength, allowing it to withstand significant mechanical stresses without deformation. Its impressive impact resistance makes it suitable for applications subject to vibrations or sudden shocks, common in industrial environments. The material's dimensional stability across varying conditions ensures consistent performance, preventing warpage that could compromise system integrity.

Thermal Stability and Flame Retardancy

3240 epoxy sheet maintains its structural and electrical properties at elevated temperatures, typically up to 130°C for continuous operation. Its low coefficient of thermal expansion minimizes stress on attached components during temperature fluctuations. Additionally, the material's inherent flame-retardant properties, often meeting UL94 V-0 standards, enhance safety in high-temperature applications, making it invaluable in industries where thermal management is critical.

Critical Structural and Insulating Components in Transformers and Control Systems

Transformer Insulation and Support

In power and distribution transformers, 3240 epoxy sheet functions as a vital insulating and structural material, separating high-voltage windings and metallic components to prevent electrical short circuits. Its exceptional dielectric strength provides reliable protection against voltage breakdown, while its rigidity supports the internal mechanical structure under magnetic and thermal stress. Additionally, the material's resistance to oil absorption and moisture degradation ensures consistent insulation performance, enabling transformers to operate safely and efficiently over long service periods in demanding environmental conditions.

Switchgear and Circuit Breaker Components

Within switchgear systems and circuit breakers, 3240 epoxy sheet is widely used for fabricating arc-resistant barriers, insulating spacers, and mounting plates. Its ability to withstand high voltages and resist electrical tracking makes it an ideal choice for maintaining isolation between live conductors during operation and fault conditions. The material also demonstrates excellent arc resistance, preventing surface erosion and minimizing the risk of component failure. These characteristics greatly enhance the safety, reliability, and service life of modern power distribution and protection systems.

Control Panel and Automation Equipment Insulation

In industrial automation and control systems, 3240 epoxy sheet provides robust insulation for control panels, relay housings, and electrical enclosures. Its superior dielectric strength ensures stable signal transmission and minimizes interference among sensitive circuits. The material's dimensional accuracy and environmental resistance - against heat, humidity, and mechanical stress - support consistent performance in both factory and field environments. By maintaining electrical integrity and mechanical stability, 3240 epoxy sheet plays a key role in ensuring reliable operation and extended lifespan of automated equipment.

Guaranteeing System Stability and Operational Uptime in Critical Infrastructure

Enhanced Reliability in Power Distribution Networks

Integrating 3240 epoxy sheet into power distribution systems greatly improves reliability and operational stability. Its excellent dielectric strength minimizes the risk of short circuits and insulation breakdown, ensuring uninterrupted energy flow. The material's superior mechanical robustness withstands vibration, mechanical stress, and thermal cycling, maintaining structural integrity even in high-demand environments. This combination of electrical and mechanical resilience reduces system downtime, lowers the frequency of repairs, and extends the operational lifespan of critical infrastructure components across utility and industrial applications.

Improved Performance in Extreme Environments

3240 epoxy sheet exhibits outstanding performance under severe environmental conditions, maintaining its electrical and mechanical properties in the face of heat, moisture, and chemical exposure. This resilience allows it to perform reliably in locations where other materials may degrade, such as offshore power stations, desert substations, or chemical processing plants. Its stable behavior under thermal and environmental stress ensures consistent insulation and mechanical performance. As a result, equipment utilizing 3240 epoxy sheet experiences fewer operational disruptions and improved uptime, even in the most demanding industrial environments.

Long-Term Cost-Effectiveness and Sustainability

Although the initial use of 3240 epoxy sheet may require a higher investment, its superior durability and resistance to wear deliver exceptional long-term value. The material's extended service life significantly reduces the frequency of replacements, minimizing maintenance and operational costs over time. Additionally, its efficiency in preserving electrical performance contributes to lower energy losses and improved system sustainability. By combining durability, reliability, and eco-conscious efficiency, 3240 epoxy sheet represents a cost-effective and future-oriented material solution for sustainable infrastructure development.

Conclusion

3240 epoxy sheet stands as a pivotal material in the realm of power and automation systems, offering a unique combination of electrical insulation, mechanical strength, and thermal stability. Its application in transformers, switchgear, and control systems significantly enhances the reliability, efficiency, and safety of critical infrastructure. As industries continue to demand higher performance and longer operational lifespans from their electrical systems, the role of 3240 epoxy sheet in ensuring system stability and reducing maintenance costs becomes increasingly vital.

FAQs

What makes 3240 epoxy sheet suitable for power and automation systems?

3240 epoxy sheet offers exceptional electrical insulation, mechanical strength, and thermal stability, making it ideal for demanding environments in power distribution and automation equipment.

Can 3240 epoxy sheet withstand extreme temperatures?

Yes, it maintains its properties at temperatures up to 130°C for continuous operation and exhibits excellent flame retardancy.

How does 3240 epoxy sheet contribute to system reliability?

Its superior insulation properties reduce electrical failures, while its mechanical strength ensures structural integrity, leading to enhanced system reliability and reduced maintenance needs.

Experience the Superior Quality of 3240 Epoxy Sheet with J&Q

At J&Q, we leverage over 20 years of experience in manufacturing and supplying top-quality 3240 epoxy sheets. Our products are tailored to meet the exacting demands of power and automation systems worldwide. With our in-house logistics capabilities, we offer seamless, one-stop solutions for all your insulation needs. Discover the J&Q difference in reliability and performance. Contact us at info@jhd-material.com for more information or to request a quote.
