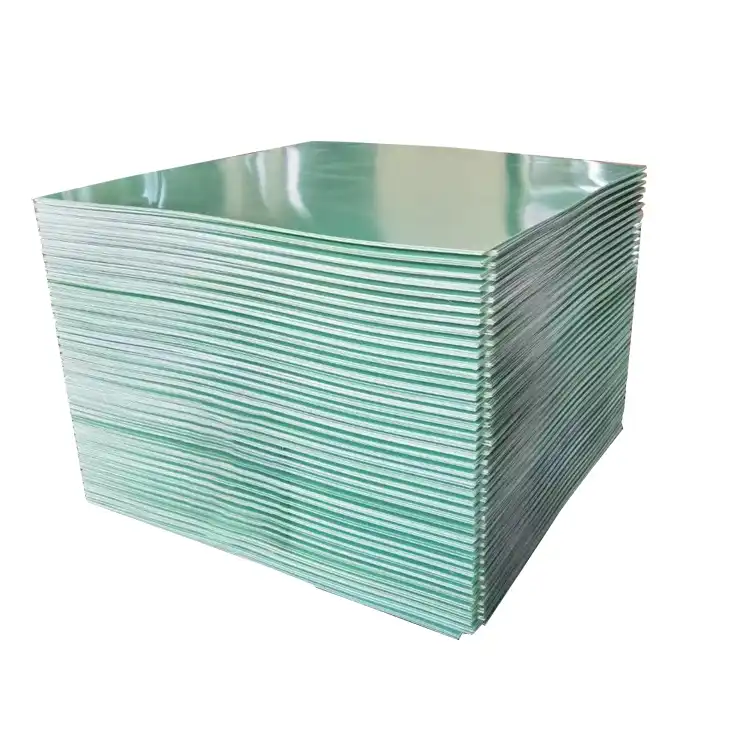

How G10 Fiberglass Plate Combines Strength with Electrical Insulation?
Unparalleled Strength-to-Weight Ratio
G10 fiberglass plate boasts an impressive strength-to-weight ratio, surpassing many traditional materials. This characteristic allows for the creation of robust structures without the burden of excessive weight, a crucial factor in industries where every gram matters. The plate's high tensile and compressive strengths enable it to withstand significant mechanical stresses, making it suitable for load-bearing applications in diverse environments.
Superior Electrical Insulation Properties
The electrical insulation capabilities of G10 fiberglass plate are truly remarkable. Its high dielectric strength prevents current leakage and breakdown, even under extreme voltage conditions. This property makes G10 an ideal choice for electrical components in high-power systems, ensuring safety and reliability. The material's low dielectric constant also contributes to its effectiveness in high-frequency applications, minimizing signal loss and distortion.
Dimensional Stability for Precision Applications
G10 fiberglass plate exhibits excellent dimensional stability across a wide range of temperatures and humidity levels. This characteristic is crucial for applications requiring precise tolerances, such as in the manufacture of circuit boards or mechanical components. The plate's ability to maintain its shape and dimensions under varying environmental conditions ensures consistent performance and reliability in critical systems.
Resistance to Heat, Moisture, and Chemicals in Harsh Conditions
Thermal Resilience in Extreme Environments
G10 fiberglass plate offers exceptional thermal resilience, retaining both mechanical strength and electrical insulation capabilities across a wide range of temperatures. This makes it suitable for use in environments with rapid temperature changes or sustained high heat, such as industrial machinery, power systems, and aerospace components. Its low coefficient of thermal expansion prevents warping or dimensional instability, ensuring that structural and insulating integrity is maintained. This stability supports reliable performance, safety, and longevity of equipment in extreme thermal conditions.
Moisture Resistance for Prolonged Durability
A key advantage of G10 fiberglass plate is its outstanding resistance to moisture absorption, which is essential in high-humidity or water-exposed environments like marine, outdoor, and electrical enclosures. By preventing water ingress, the material maintains its insulating properties and structural stability, reducing the risk of electrical failure or corrosion. This moisture resistance ensures long-term operational reliability, minimizes maintenance needs, and enhances the lifespan of components and systems, making G10 an ideal choice for demanding environmental conditions where durability is critical.
Chemical Inertness for Corrosive Environments
G10 fiberglass plate exhibits remarkable chemical resistance, remaining stable when exposed to a wide range of solvents, acids, and industrial chemicals. This inertness makes it suitable for use in harsh environments such as chemical processing plants, oil and gas facilities, and other industrial operations. By withstanding chemical attack without degradation, G10 maintains its structural and electrical properties, reducing the frequency of component replacement and downtime. Its chemical durability ensures consistent performance, safety, and cost-efficiency in highly corrosive operating conditions.
G10 Fiberglass Plate Applications in Industrial and Power Protection Systems
Electrical Insulation in High-Voltage Systems
In high-voltage power distribution and industrial electrical systems, G10 fiberglass plate is widely used for insulation and protection. It is integral in switchgear, transformers, busbar supports, and other high-voltage components, where its high dielectric strength prevents electrical breakdown. The plate's arc resistance ensures safe operation under fault conditions, reducing the risk of short circuits and equipment failure. By maintaining reliable insulation even under extreme electrical stresses, G10 plates contribute to the safety, efficiency, and longevity of power transmission and distribution infrastructure.
Structural Components in Aerospace and Transportation
The aerospace and transportation sectors utilize G10 fiberglass plate for its excellent strength-to-weight ratio and mechanical resilience. It is employed in aircraft interiors, structural supports, composite panels, and vehicle reinforcements, where vibration and impact resistance are critical. G10 provides electrical insulation while maintaining dimensional stability under varying temperatures and mechanical loads. This combination of lightweight durability and insulating capability ensures safer, more efficient vehicles and aircraft, supporting performance reliability and long-term structural integrity in demanding operational environments.
Environmental Barriers in Harsh Industrial Settings
G10 fiberglass plate is highly effective as an environmental barrier in chemically and thermally aggressive industrial settings. Its resistance to moisture, chemicals, and extreme temperatures makes it ideal for protective enclosures, shields, and partitions. Applications include oil and gas exploration, chemical processing, and marine operations, where sensitive equipment and personnel require dependable protection. By maintaining structural and insulating properties in these harsh conditions, G10 ensures operational safety, reduces maintenance needs, and prolongs the lifespan of industrial systems and components exposed to challenging environments.
Conclusion
G10 fiberglass plate emerges as a versatile and indispensable material for electrical, mechanical, and environmental protection across various industries. Its unique combination of high strength, excellent electrical insulation, and resistance to harsh environmental conditions positions it as a go-to solution for challenging applications. From safeguarding high-voltage power systems to providing structural integrity in aerospace components, G10 fiberglass plate continues to play a crucial role in advancing technological capabilities and ensuring operational safety and reliability in diverse industrial sectors.
FAQs
What makes G10 fiberglass plate suitable for electrical insulation?
G10 fiberglass plate offers excellent electrical insulation due to its high dielectric strength and low dielectric constant, making it ideal for high-voltage applications.
Can G10 fiberglass plate withstand extreme temperatures?
Yes, G10 fiberglass plate maintains its properties across a wide temperature range, making it suitable for applications involving temperature extremes.
Is G10 fiberglass plate resistant to chemicals?
Indeed, G10 fiberglass plate exhibits remarkable resistance to a wide array of chemicals and solvents, making it ideal for use in corrosive environments.
Experience the Superior Quality of G10 Fiberglass Plate with J&Q
J&Q, a leading G10 fiberglass plate manufacturer, with over two decades of expertise in insulating sheet production, offers premium G10 fiberglass plates tailored to your specific needs. Our global reach and dedicated logistics ensure seamless delivery and support. For unparalleled quality and service in G10 fiberglass plates, contact us at info@jhd-material.com.
