How G11 Differs from Fiberglass in Strength and Durability?
Composition and Manufacturing Process

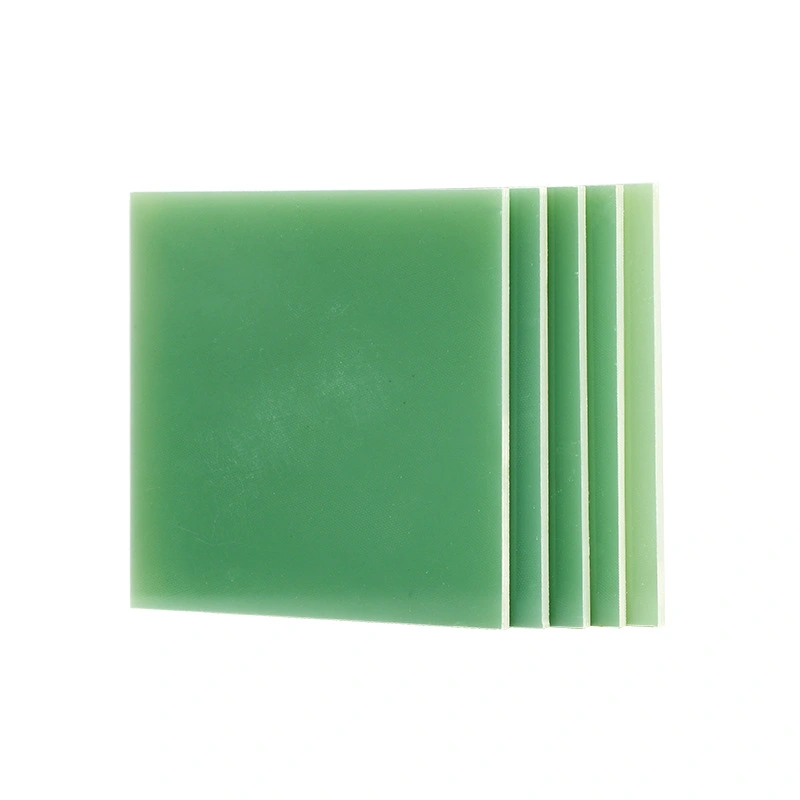

G11 sheets are produced through an advanced manufacturing process that combines high-quality epoxy resin with premium-grade woven fiberglass cloth. During production, the layers are impregnated with resin and cured under elevated heat and pressure, forming a compact, void-free structure. This method enhances fiber-to-resin bonding, resulting in a laminate with exceptional mechanical integrity and dimensional stability. Compared to conventional fiberglass, G11’s refined composition provides superior strength, heat resistance, and consistency, making it suitable for demanding electrical and structural applications.
Mechanical Properties
The mechanical strength of G11 sheets far exceeds that of regular fiberglass laminates, thanks to their optimized epoxy formulation and dense fiber reinforcement. They feature excellent tensile, compressive, and flexural strength, providing enhanced resistance against mechanical deformation and stress. G11 also displays superior impact and fatigue resistance, ensuring long-term performance under dynamic loads. These mechanical benefits make G11 the material of choice for high-performance parts in aerospace, electrical insulation, and heavy machinery that demand exceptional toughness and rigidity.
Environmental Resistance
G11 material excels in environmental durability, maintaining stability and strength when exposed to extreme temperatures, humidity, and corrosive chemicals. Its epoxy-glass composition resists moisture absorption and chemical degradation, making it ideal for use in electrical and mechanical systems operating in harsh or variable environments. Unlike standard fiberglass, which may soften or lose strength over time, G11 retains its performance in both dry and humid conditions. This superior resistance to environmental stressors ensures extended service life and reliable operation in critical applications.
Electrical Insulation and Thermal Performance Comparison
Dielectric Strength
G11 sheets excel in electrical insulation, offering superior dielectric strength compared to standard fiberglass sheets. This property allows G11 to effectively prevent the flow of electric current through the material, making it an excellent choice for high-voltage applications. The enhanced dielectric strength of G11 is particularly valuable in electrical components and systems where insulation failure could lead to catastrophic consequences.
Temperature Resistance
One of the standout features of G11 sheets is their exceptional heat resistance. They can maintain their electrical and mechanical properties at higher temperatures compared to standard fiberglass sheets. This thermal stability makes G11 sheets particularly suitable for applications involving elevated temperatures, such as in electrical motors, transformers, and high-temperature industrial processes.
Arc Resistance
G11 sheets demonstrate superior arc resistance, a critical property in electrical applications. This enhanced ability to withstand electrical arcing without degradation or surface tracking contributes to the longevity and reliability of components made from G11, especially in high-voltage environments where arc flash events are a concern.
Selecting the Right Sheet for Industrial Applications
Application-Specific Requirements
When choosing between G11 and standard fiberglass sheets, it's essential to consider the specific requirements of your application. Factors such as operating temperature, electrical insulation needs, mechanical stress, and environmental exposure should be carefully evaluated. G11 sheets are often the preferred choice for applications demanding high performance in extreme conditions, while standard fiberglass may suffice for less demanding scenarios.
Cost Considerations
While G11 sheets offer superior performance in many aspects, they typically come at a higher cost compared to standard fiberglass sheets. It's important to weigh the initial investment against long-term benefits such as increased durability, reduced maintenance, and improved safety. In applications where failure could result in significant downtime or safety risks, the additional cost of G11 sheets may be easily justified.
Regulatory Compliance
Certain industries and applications are subject to strict regulatory standards regarding material properties and performance. G11 sheets often meet or exceed these standards, particularly in electrical and high-temperature applications. When selecting materials, ensure compliance with relevant industry standards and regulations to avoid potential legal and safety issues.
Conclusion
In comparing G11 sheets to standard fiberglass sheets, it's clear that G11 offers superior performance in terms of strength, durability, electrical insulation, and thermal resistance. These enhanced properties make G11 sheets the preferred choice for demanding industrial applications, particularly in high-temperature and high-voltage environments. While the initial cost may be higher, the long-term benefits of using G11 sheets often outweigh this consideration, especially in critical applications where reliability and safety are paramount. As with any material selection process, careful evaluation of specific application requirements and regulatory standards is essential to ensure the optimal choice between G11 and standard fiberglass sheets.
FAQs
What are the main advantages of G11 sheets over standard fiberglass?
G11 sheets offer superior strength, better electrical insulation, higher heat resistance, and improved performance in humid environments compared to standard fiberglass sheets.
Are G11 sheets suitable for all applications where fiberglass is used?
While G11 sheets can often replace standard fiberglass, they are particularly beneficial in high-temperature, high-voltage, or harsh environmental conditions. For less demanding applications, standard fiberglass may be sufficient and more cost-effective.
How does the cost of G11 sheets compare to standard fiberglass?
G11 sheets are typically more expensive than standard fiberglass due to their enhanced properties and specialized manufacturing process. However, their durability and performance can offer long-term cost savings in certain applications.
Experience the Superior Performance of G11 Sheets with J&Q
At J&Q, we are a trusted G11 sheet manufacturer and supplier, specializing in providing top-quality insulation materials for a wide range of industrial applications. With over 20 years of experience in insulating sheet production and sales and a strong reputation as a global exporter, we understand the unique needs of our international customers. Our G11 sheets deliver exceptional mechanical strength, electrical insulation, and thermal resistance, making them ideal for demanding industrial environments. For more information about our G11 sheets and how they can benefit your project, contact us at info@jhd-material.com.
