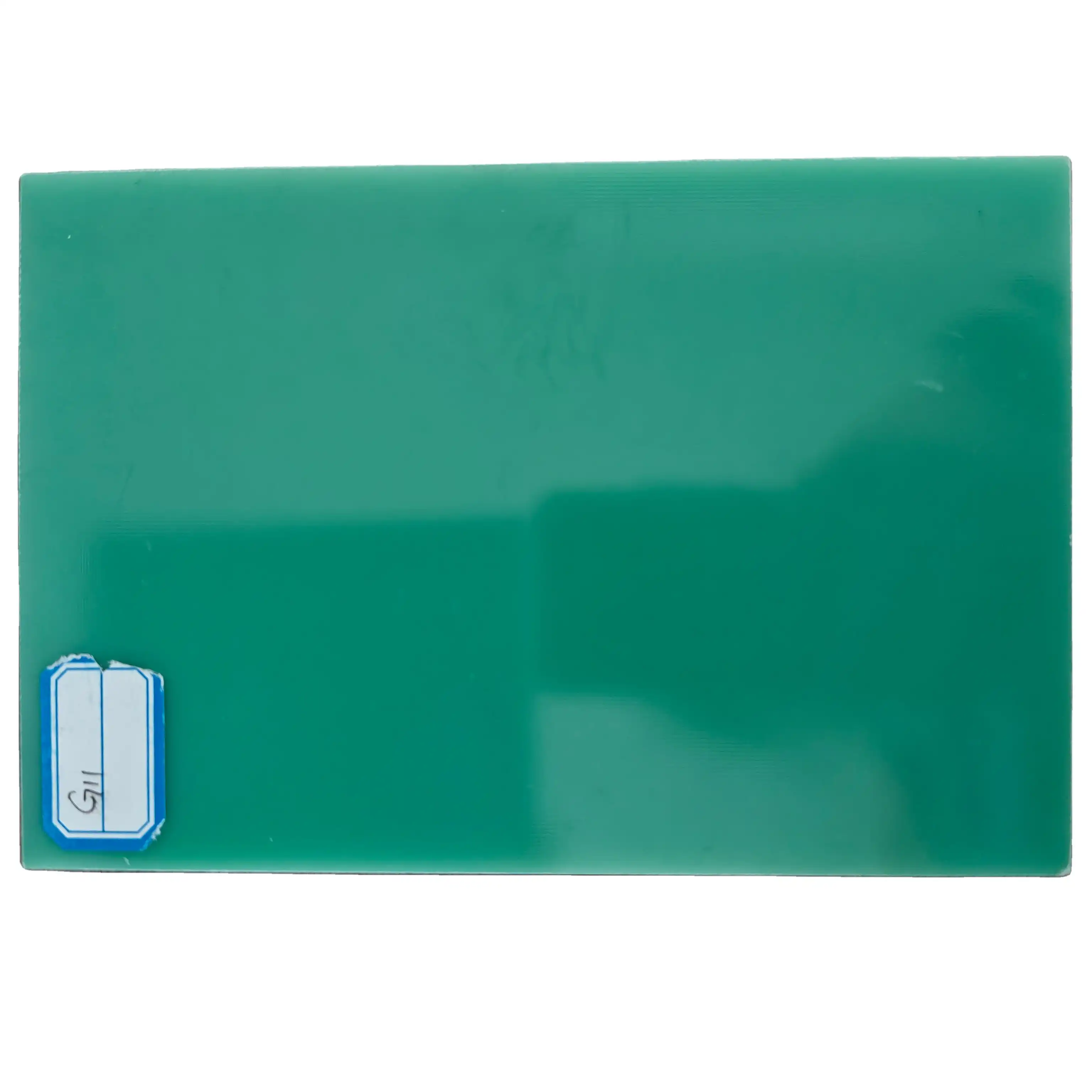

G11 Sheet vs FR4 Sheet: Which Is Better for High-Temperature Electronic Boards?

When it comes to high-temperature electronic boards, choosing the right material is crucial for ensuring optimal performance and longevity. G11 sheet and FR4 sheet are two popular options, but which one is better? For high-temperature applications, G11 sheet is generally the superior choice. G11 offers enhanced thermal stability, higher glass transition temperature, and better electrical properties at elevated temperatures compared to FR4. While FR4 is suitable for many standard applications, G11's ability to maintain its mechanical and electrical characteristics at temperatures exceeding 150°C makes it the preferred option for electronic boards operating in high-temperature environments. However, the final decision should consider specific project requirements, cost constraints, and performance needs.

Key Differences Between G11 and FR4 Materials

Composition and Manufacturing Process

Both G11 and FR4 are fiberglass-reinforced epoxy composites, but their formulations and processing methods differ significantly. G11 employs an advanced, heat-resistant epoxy resin system with enhanced cross-linking, enabling it to withstand much higher operating temperatures than FR4. The manufacturing of G11 involves the use of premium-grade glass cloth and precise curing cycles to achieve uniform thermal and mechanical properties. Additionally, G11 production follows stricter quality assurance standards, ensuring greater consistency and reliability for demanding industrial, aerospace, and electrical insulation applications.

Thermal Properties and Glass Transition Temperature

The key thermal distinction between G11 and FR4 lies in their glass transition temperatures (Tg). G11 typically achieves a Tg between 180°C and 200°C, significantly higher than FR4's range of 130°C to 140°C. This elevated Tg enables G11 to retain its rigidity, dimensional stability, and dielectric performance under prolonged high-heat exposure, whereas FR4 begins to soften or lose strength. As a result, G11 sheet is the preferred material for high-temperature or continuous-duty environments, where thermal endurance and structural integrity are essential for reliable performance.

Electrical Performance at High Temperatures

G11 demonstrates outstanding electrical insulation capabilities even when subjected to elevated thermal conditions. It maintains a high dielectric strength, stable insulation resistance, and a low dissipation factor, ensuring minimal signal loss and energy leakage. In contrast, FR4's electrical properties tend to degrade more rapidly as temperatures rise. This superior thermal-electrical stability makes G11 ideal for critical applications such as high-voltage insulators, aerospace electronics, and power distribution components, where consistent electrical performance under heat stress is crucial to system safety and longevity.

Evaluating Performance at Elevated Operating Temperatures

Mechanical Strength Retention

At elevated operating temperatures, G11 maintains exceptional mechanical integrity, outperforming FR4 in both flexural and tensile strength retention. This capability ensures that circuit boards or structural components made from G11 can endure continuous exposure to heat and mechanical loading without deformation or loss of rigidity. Its high modulus of elasticity allows it to resist bending and stress fatigue, which is essential in applications like aerospace, power electronics, and industrial control systems. This superior mechanical endurance makes G11 a preferred material for environments demanding both strength and thermal resilience.

Dimensional Stability

G11 sheet's outstanding dimensional stability under heat exposure allows it to maintain precise form and alignment even during prolonged thermal stress. With its lower coefficient of thermal expansion (CTE) compared to FR4, G11 experiences minimal warpage, shrinkage, or layer misalignment at high temperatures. This property is especially valuable in multilayer PCB assemblies and precision electronic systems, where even minor dimensional shifts can affect performance and reliability. The material's ability to retain flatness and consistent dimensions contributes significantly to maintaining tight tolerances and ensuring assembly accuracy under fluctuating thermal conditions.

Thermal Cycling Resistance

In environments where temperature cycles occur repeatedly, G11 exhibits far greater resistance to delamination, cracking, and fatigue than FR4. Its enhanced epoxy-glass bonding strength and thermal durability enable it to withstand rapid heating and cooling without structural degradation. This superior thermal cycling resistance translates into longer service life, reduced maintenance frequency, and sustained performance reliability. For applications such as military electronics, power converters, and industrial automation systems, G11's resilience ensures dependable operation despite constant temperature fluctuations and harsh working conditions.

Choosing the Right Material for High-Temperature PCB Design

Application-Specific Considerations

When determining whether G11 or FR4 is best suited for a high-temperature PCB design, engineers must evaluate operational demands such as peak temperature exposure, duty cycle duration, and mechanical load tolerance. G11's superior heat resistance, dielectric stability, and mechanical strength make it ideal for applications involving sustained or cyclic thermal stress, such as in aerospace avionics, automotive engine control units, and industrial power modules. By contrast, FR4 may suffice in moderate-temperature environments where thermal and electrical demands remain within conventional operating limits.

Cost-Benefit Analysis

Although G11 provides excellent long-term performance under extreme thermal conditions, its higher production cost compared to FR4 sheet can influence material selection. Engineers must carefully weigh the upfront expense against the expected service life, reliability, and reduced maintenance costs associated with G11. For mission-critical applications requiring consistent performance at elevated temperatures, the investment in G11 can be economically justified. Conversely, in cost-sensitive projects with limited heat exposure, FR4 may represent a more practical choice without compromising essential performance metrics.

Manufacturability and Availability

In terms of manufacturability, FR4 maintains a clear advantage due to its widespread industry adoption, established processing techniques, and global supply availability. This often results in shorter production lead times and lower fabrication costs. However, G11, though more specialized, offers enhanced process stability during high-temperature operations and can be fabricated with precision when handled by experienced manufacturers. For advanced electronic assemblies that demand superior durability and temperature endurance, the technical advantages of G11 often outweigh its comparatively limited availability and higher processing requirements.

Conclusion

In the battle of G11 sheet vs FR4 sheet for high-temperature electronic boards, G11 emerges as the superior choice for applications requiring exceptional thermal stability and electrical performance at elevated temperatures. Its higher glass transition temperature, better dimensional stability, and superior mechanical strength retention make it ideal for demanding environments. However, the decision between G11 and FR4 should always be based on a careful evaluation of specific application requirements, cost considerations, and performance needs. For standard applications operating within FR4's temperature range, it remains a cost-effective and reliable option.

FAQs

What is the maximum operating temperature for G11 sheets?

G11 sheets can typically operate continuously at temperatures up to 180°C, with short-term exposure capabilities up to 200°C.

Is G11 more difficult to machine than FR4?

G11 can be slightly more challenging to machine due to its higher glass content and density, but most PCB manufacturers are equipped to handle it effectively.

Can G11 be used for flexible PCBs?

G11 is primarily used for rigid PCBs due to its high stiffness. For flexible applications, other materials are more suitable.
