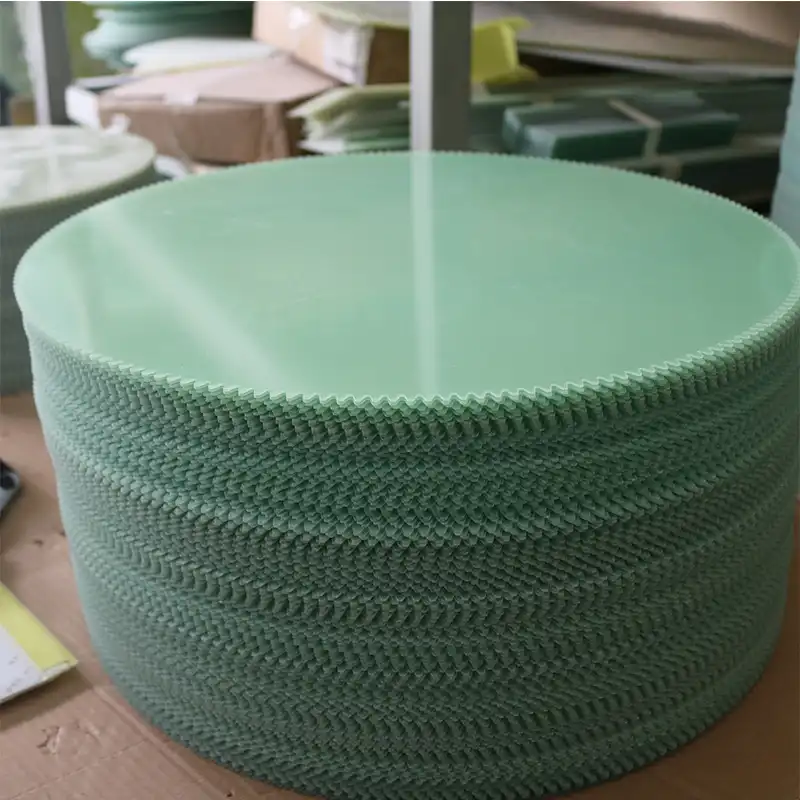

How Do Mechanical Properties Differ Between G10 and FR4?
Tensile Strength and Flexural Modulus
G10 and FR4 both exhibit exceptional tensile strength, but G10 typically edges out FR4 in this regard. G10 boasts a tensile strength ranging from 275 to 345 MPa, while FR4 generally falls between 240 and 310 MPa. This difference becomes crucial in applications where the material must withstand significant pulling forces without deformation.
The flexural modulus, which measures a material's resistance to bending, also differs between the two. G10 demonstrates a higher flexural modulus, typically around 18-22 GPa, compared to FR4's 17-20 GPa. This increased stiffness makes G10 an excellent choice for structural components that need to maintain their shape under load.
Impact Resistance and Toughness
When it comes to impact resistance, both materials perform admirably, but G10 sheet often takes the lead. Its superior toughness allows it to absorb and dissipate energy from sudden impacts more effectively than FR4. This characteristic makes G10 particularly valuable in applications where the material might be subjected to sudden shocks or vibrations.
FR4, while slightly less tough than G10, still offers excellent impact resistance for most applications. Its balanced properties make it a versatile choice for a wide range of uses, especially in the electronics industry where extreme impact resistance isn't always necessary.
Dimensional Stability Under Stress
Dimensional stability is crucial in many precision applications, and both G10 and FR4 excel in this area. However, G10 typically exhibits slightly better dimensional stability under stress. This means that G10 components are less likely to warp or change shape when subjected to mechanical loads over time.
FR4, while still offering good dimensional stability, may experience slightly more creep (gradual deformation under constant stress) compared to G10. This difference is often negligible in most applications but can become significant in high-precision, long-term use cases.
Comparative Thermal and Structural Performance
Heat Resistance and Thermal Expansion
When it comes to thermal performance, both G10 and FR4 demonstrate impressive capabilities, but with some notable differences. G10 generally exhibits higher heat resistance, maintaining its structural integrity at temperatures up to 180°C (356°F). FR4, while still heat-resistant, typically has a slightly lower maximum operating temperature of around 140°C (284°F).
The coefficient of thermal expansion (CTE) is another crucial factor to consider. G10 usually has a lower CTE compared to FR4, meaning it expands less when heated. This property makes G10 an excellent choice for applications where dimensional stability under varying temperatures is critical, such as in precision instrumentation or aerospace components.
Flame Retardancy and Fire Safety
FR4 gets its name from its flame-retardant properties, and it indeed excels in this area. FR4 is designed to self-extinguish when exposed to flames, making it an ideal choice for applications where fire safety is paramount. It typically meets UL94 V-0 standards, the highest level of flame retardancy for this class of materials.
G10, while not inherently as flame-retardant as FR4, can be manufactured with flame-retardant additives to improve its fire safety characteristics. However, in its standard form, G10 sheets may not meet the same stringent flame retardancy standards as FR4. This difference is crucial to consider in applications where fire safety regulations are strict.
Long-term Structural Integrity
Both G10 and FR4 are known for their excellent long-term structural integrity, but they excel in slightly different ways. G10 typically maintains its mechanical properties better over time, especially when exposed to harsh environmental conditions. Its resistance to moisture absorption and chemical degradation contributes to its longevity in demanding applications.
FR4, while still offering impressive long-term performance, may experience slightly more degradation over time compared to G10, particularly in high-humidity or chemically aggressive environments. However, for most standard applications, FR4's structural integrity remains more than adequate throughout its intended lifespan.
Industrial Applications Based on Material Strength
Electronics and Circuit Board Manufacturing
In the realm of electronics, both G10 and FR4 sheets find extensive use, but FR4 has become the industry standard for printed circuit board (PCB) substrates. FR4's balanced properties, including good electrical insulation, adequate mechanical strength, and excellent flame retardancy, make it ideal for most PCB applications. Its widespread adoption has also led to cost-effectiveness and standardization in the electronics industry.
G10, while less common in standard PCBs, finds its niche in high-performance electronic applications. Its superior mechanical strength and thermal stability make it an excellent choice for specialized circuit boards used in extreme environments, such as aerospace or military applications where reliability under harsh conditions is crucial.
Aerospace and High-Performance Components
The aerospace industry often turns to G10 for its exceptional strength-to-weight ratio and thermal stability. G10 components are frequently used in aircraft interiors, structural supports, and insulation panels. Its ability to maintain its properties at extreme temperatures and altitudes makes it invaluable in this sector.
FR4, while not as commonly used in primary aerospace structures, still finds applications in avionics and electronic systems within aircraft. Its flame-retardant properties are particularly valued in these safety-critical environments.
Industrial Machinery and Equipment
In industrial settings, both materials showcase their strengths in different applications. G10 is often the material of choice for high-wear components, such as bearings, gears, and sliding components in machinery. Its excellent mechanical properties and resistance to abrasion make it ideal for parts that need to withstand constant use and harsh conditions.
FR4, on the other hand, is frequently used in electrical insulation components within industrial equipment. Its combination of good mechanical properties and excellent electrical insulation makes it suitable for switchgear, transformers, and other electrical systems in industrial environments.
Conclusion
In the G10 vs FR4 sheet debate, there's no clear-cut winner – each material shines in its own right. G10 excels in high-strength, high-temperature applications, making it ideal for aerospace and specialized industrial uses. FR4, with its balanced properties and flame retardancy, remains the go-to choice for most electronic applications, especially in PCB manufacturing. The choice between G10 and FR4 ultimately depends on your specific application requirements, balancing factors like mechanical strength, thermal performance, fire safety, and cost-effectiveness. By understanding the unique strengths of each material, you can make an informed decision that ensures optimal performance and durability in your projects.
FAQs
What are the main differences between G10 and FR4?
G10 typically offers higher mechanical strength and better thermal stability, while FR4 excels in flame retardancy and is more widely used in PCB manufacturing.
Which material is better for high-temperature applications?
G10 generally has better heat resistance, maintaining its properties at higher temperatures compared to FR4.
Is FR4 more flame-retardant than G10?
Yes, FR4 is specifically designed to be flame-retardant and typically meets higher fire safety standards than standard G10.
