Tailoring Thickness, Copper Cladding, and Flame Retardancy
Customizing FR4 Sheet Thickness

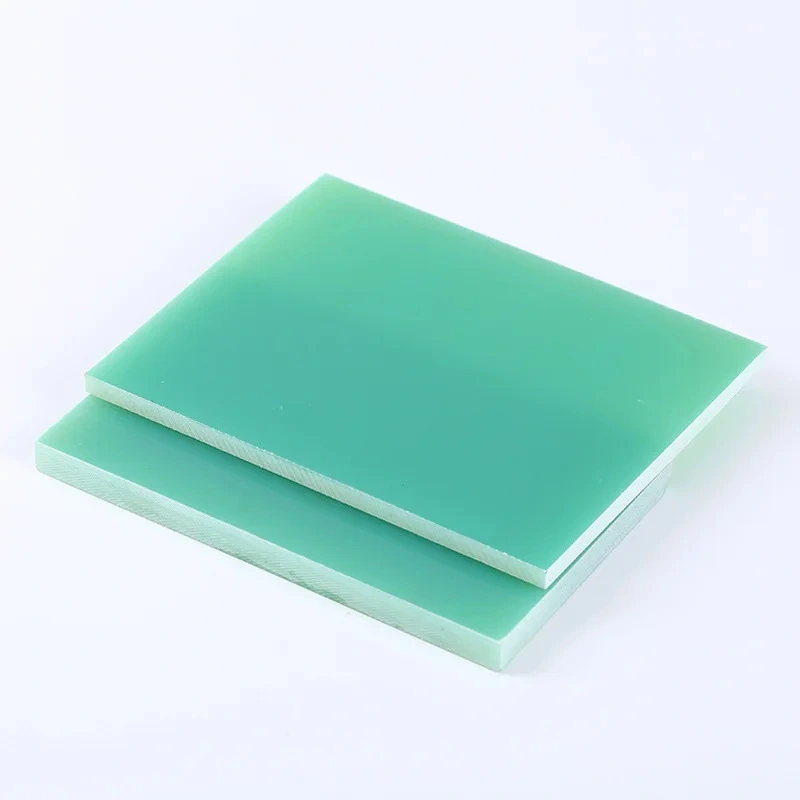

FR4 epoxy sheets can be manufactured in a wide range of thicknesses, typically ranging from 0.2mm to 3.2mm for standard PCB applications. However, specialized applications may require thicker or thinner sheets. Customizing thickness allows for precise control over board rigidity, weight, and thermal management properties. Thinner boards are ideal for compact devices, while thicker options provide enhanced structural integrity for high-stress environments.
Tailoring Copper Cladding
Copper cladding options for FR4 epoxy sheet sheets vary in thickness and distribution. Standard thicknesses include 1/2 oz, 1 oz, and 2 oz per square foot, but custom options can range from ultra-thin 1/4 oz to heavy-duty 10 oz cladding. Single-sided, double-sided, or multilayer configurations are available to suit specific circuit designs. The ability to customize copper thickness and layout enables optimal current-carrying capacity and signal integrity for diverse applications.
Adjusting Flame Retardancy Levels
While FR4 inherently possesses flame-retardant properties, the level of fire resistance can be tailored to meet specific industry standards or application requirements. Customization options include modifying the resin composition or incorporating additional flame-retardant additives. This allows manufacturers to achieve compliance with various UL94 flame ratings, from V-0 to V-1 or HB, ensuring safety in different operating environments without compromising other material properties.
How Can Custom Dielectric Properties Enhance Your PCB Performance?
Tailoring Dielectric Constant
The dielectric constant of FR4 epoxy sheets can be customized to optimize signal propagation and impedance control in high-frequency applications. By adjusting the resin formulation and glass-to-resin ratio, manufacturers can fine-tune the dielectric constant to values ranging from 3.8 to 5.0. This customization allows for improved signal integrity, reduced crosstalk, and enhanced overall PCB performance in telecommunications, aerospace, and other demanding sectors.
Minimizing Dissipation Factor
Custom FR4 formulations can achieve lower dissipation factors, reducing signal loss and heat generation in high-frequency circuits. By carefully selecting and blending resin components, manufacturers can produce FR4 sheets with dissipation factors as low as 0.008 at 1 MHz. This enhancement is particularly beneficial for applications in 5G infrastructure, radar systems, and other high-speed digital or RF designs where signal integrity is paramount.
Enhancing Moisture Resistance
For applications in humid or challenging environments, FR4 epoxy sheets can be customized to exhibit superior moisture resistance. Advanced resin systems and specialized manufacturing processes can reduce water absorption to less than 0.1% over 24 hours, maintaining stable dielectric properties and preventing delamination in harsh conditions. This customization is crucial for automotive, marine, and outdoor industrial applications where reliability under varying environmental conditions is essential.
Precision Machining and Fabrication for Specialized Industrial Assemblies
Advanced CNC Machining Capabilities
Customization of FR4 epoxy sheets extends beyond material properties to precision machining services. State-of-the-art CNC equipment allows for intricate drilling, milling, and routing operations with tolerances as tight as ±0.001 inches. This level of precision enables the creation of complex geometries, blind and buried vias, and specialized cutouts for unique industrial assemblies. Custom machining services cater to prototyping needs and small-to-medium production runs, offering flexibility in design iteration and optimization.
Surface Finish Options
FR4 sheets can be customized with various surface finishes to enhance performance and durability. Options include smooth, textured, or matte finishes, each offering distinct advantages for different applications. Specialized coatings can be applied to improve chemical resistance, enhance solderability, or provide additional insulation. These surface customizations play a crucial role in optimizing the FR4 sheet for specific assembly processes and operational requirements.
Integration of Embedded Components
Advanced fabrication techniques allow for the integration of embedded components directly within the FR4 substrate. This customization option enables the creation of highly compact and efficient assemblies by incorporating passive components, sensors, or even active devices within the board structure. Embedded component technology reduces overall board size, improves signal integrity, and enhances thermal management, making it ideal for applications where space is at a premium or where enhanced electromagnetic shielding is required.
Conclusion
The extensive customization options available for FR4 epoxy sheets have transformed the landscape of electronic design and manufacturing. By tailoring thickness, copper cladding, flame retardancy, dielectric properties, and fabrication techniques, engineers can optimize FR4 materials for a vast array of applications. These customization capabilities not only enhance performance and reliability but also drive innovation in compact, high-frequency, and harsh-environment electronics. As technology continues to advance, the ability to fine-tune FR4 properties will remain crucial in meeting the evolving demands of the electronics industry.
FAQs
What is the standard thickness range for FR4 epoxy sheets?
Standard FR4 sheets typically range from 0.2mm to 3.2mm thick.
Can FR4 sheets be customized for high-frequency applications?
Yes, FR4 can be tailored with specific dielectric constants and low dissipation factors for high-frequency use.
Is it possible to embed components within FR4 sheets?
Advanced fabrication techniques allow for embedding passive and some active components directly in FR4 substrates.
How does customizing FR4 affect its flame retardancy?
FR4 can be modified to meet various UL94 flame ratings without compromising other properties.
Experience the Versatility of Custom FR4 Epoxy Sheets with J&Q
At J&Q, we specialize in delivering tailor-made FR4 epoxy sheet solutions to meet your unique project requirements. With over two decades of manufacturing expertise and a decade of international trade experience, our team is equipped to provide top-quality, customized FR4 products. From adjustable thicknesses to specialized dielectric properties, we offer comprehensive customization options to enhance your PCB performance. Contact our expert team at info@jhd-material.com to discuss your specific FR4 epoxy sheet needs and experience our commitment to excellence in custom manufacturing.
