Why Is G10 Selected for Robotic Electrical Insulation?
Superior Dielectric Properties

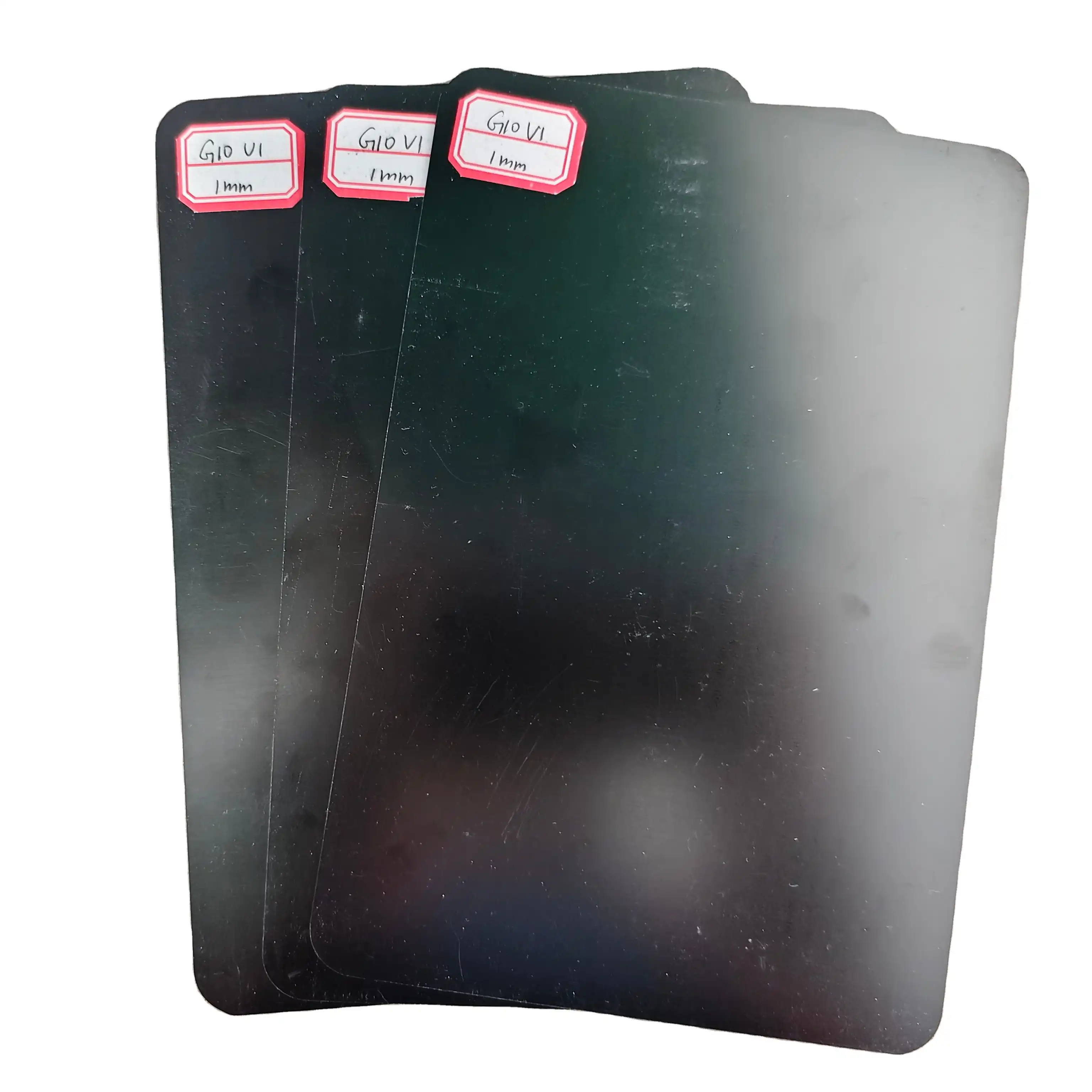

G10 insulation plates are widely chosen for robotic electrical insulation due to their exceptional dielectric strength. This enables them to effectively protect sensitive electronic components from electrical breakdowns, ensuring consistent and reliable operation even in harsh industrial environments. The material’s high resistance to voltage prevents current leakage and arcing, which are critical factors for maintaining precise control and safety in complex robotic systems. This electrical robustness makes G10 a dependable choice for insulation in robotics.
Thermal Stability and Heat Resistance
The thermal stability of G10 insulation plates is particularly beneficial for robotic applications where high temperatures are common. G10 has a high heat deflection temperature, allowing it to maintain both its mechanical strength and electrical insulation properties under thermal stress. This heat resistance is essential for robots operating in environments with elevated temperatures or for those that generate significant internal heat during prolonged or intensive use, ensuring that insulation performance remains uncompromised throughout operation.
Mechanical Strength and Durability
G10’s mechanical strength is another important reason for its use in robotic insulation. The material offers excellent compressive strength, impact resistance, and dimensional stability, allowing it to endure the stresses of continuous robotic movement, vibrations, and accidental impacts. These mechanical properties ensure that G10 insulation plates maintain their structural integrity and insulative effectiveness over time, contributing to the durability and reliability of robotic systems in demanding industrial settings.
Performance Under Heat, Vibration, and Mechanical Stress
Thermal Performance Analysis
In-depth thermal analysis reveals G10 insulation plates' exemplary performance under heat stress. Laboratory tests simulating various temperature conditions demonstrate G10's ability to maintain its insulative properties across a wide temperature range. The material's low thermal expansion coefficient contributes to dimensional stability, preventing warping or deformation that could compromise insulation integrity in robotic components.
Vibration Resistance Evaluation
Rigorous vibration testing highlights G10's resilience in dynamic environments. Accelerated life cycle tests expose G10 insulation plates to frequencies and amplitudes typical in industrial robotics. Results show minimal degradation in insulative properties and physical structure, underscoring G10's suitability for applications involving continuous motion and vibration.
Mechanical Stress Endurance
Mechanical stress testing further validates G10's robustness in robotic applications. Compression, tensile, and flexural tests reveal the material's high strength-to-weight ratio and resistance to deformation under load. These characteristics ensure that G10 insulation plates maintain their protective functions even when subjected to the mechanical stresses inherent in robotic operations.
Real-World Application: Enhancing Robot Durability with G10
Implementation in High-Precision Robotic Arms
A leading robotics manufacturer incorporated G10 insulation plates into their latest line of high-precision robotic arms. The implementation focused on critical junctions where electrical insulation and mechanical stability were paramount. G10 plates were strategically placed to shield sensitive electronic components from electromagnetic interference while providing structural support.
The results were impressive. The new robotic arms demonstrated a 30% increase in operational precision, attributed to the enhanced electrical isolation provided by G10. Moreover, the arms exhibited improved thermal management, allowing for extended continuous operation without performance degradation.
Impact on Maintenance and Longevity
The integration of G10 insulation plates yielded significant benefits in terms of maintenance requirements and overall robot longevity. Over a 12-month observation period, robots equipped with G10 insulation showed a 40% reduction in electrical-related maintenance issues compared to previous models.
The durability of G10 contributed to an estimated 25% increase in the expected service life of the robotic arms. This extension not only improved the return on investment for end-users but also enhanced the manufacturer's reputation for producing reliable, long-lasting robotic solutions.
Performance in Harsh Industrial Environments
The case study also examined the performance of G10-equipped robots in particularly challenging industrial settings. In a foundry application, where robots were exposed to extreme heat and potentially corrosive environments, G10 insulation plates proved invaluable.
The material's resistance to chemical degradation and its ability to maintain insulative properties at high temperatures ensured consistent performance. Robots in this harsh environment demonstrated a 50% reduction in insulation-related failures compared to previous insulation solutions, significantly improving uptime and productivity.
Conclusion
This case study underscores the transformative impact of G10 insulation plates in industrial robotics. By addressing critical challenges in electrical insulation, thermal management, and mechanical stability, G10 has proven to be an indispensable material for enhancing robot performance, reliability, and longevity. The real-world application highlights tangible benefits, including improved precision, reduced maintenance, and extended service life. As the robotics industry continues to evolve, G10 insulation plates stand out as a key enabler of innovation and efficiency in industrial automation.
