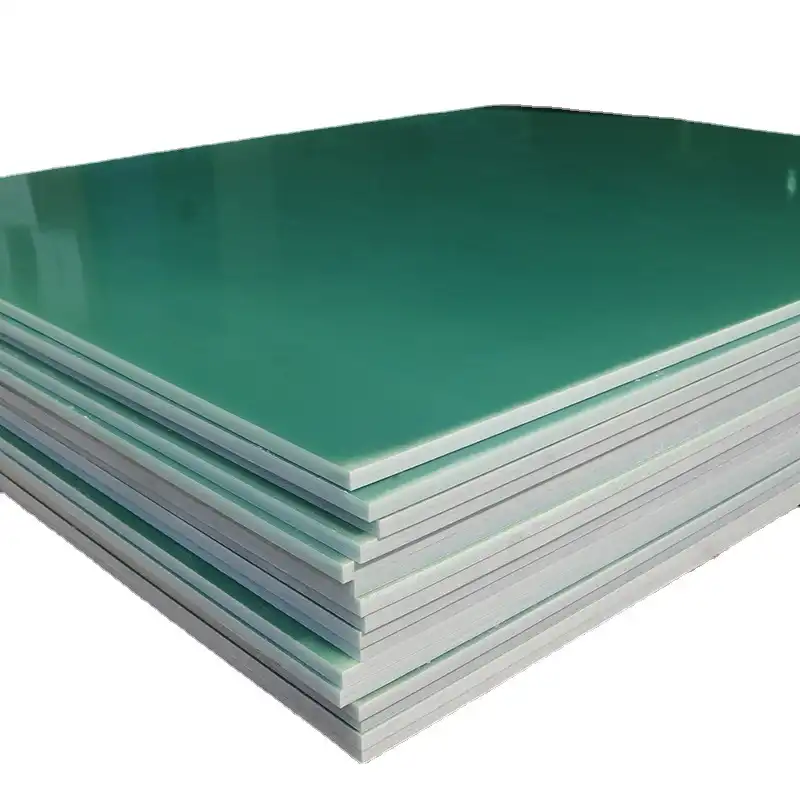

G10 Epoxy Sheet Certification Requirements for Aerospace Buyers

G10 epoxy sheet certification requirements for aerospace buyers involve rigorous standards and testing procedures to ensure the material meets the stringent demands of aircraft manufacturing. Aerospace-grade G10 must comply with industry-specific regulations like AS9100, ASTM D709, and MIL-I-24768. Buyers should verify that suppliers provide detailed material traceability documentation, including batch testing results and certificates of conformance. Key performance attributes such as dielectric strength, dimensional stability, and resistance to extreme temperatures must be validated through standardized testing methods. Additionally, aerospace manufacturers often require suppliers to maintain quality management systems certified to AS9100 standards to ensure consistent product quality and reliability throughout the supply chain.

Which Aerospace Standards Govern G10 Epoxy Sheet Qualification

AS9100 Quality Management System Requirements

AS9100 serves as the cornerstone for quality management in aerospace manufacturing. This standard encompasses ISO 9001 requirements while incorporating additional specifications tailored to the aviation, space, and defense industries. G10 epoxy sheet suppliers must demonstrate compliance with AS9100 to ensure their products meet the exacting standards demanded by aerospace applications. This certification validates the manufacturer's ability to consistently produce materials that conform to customer and regulatory requirements.

ASTM D709 Standard Specification for Laminated Thermosetting Materials

ASTM D709 outlines the specific requirements for laminated thermosetting materials used in electrical and electronic applications. This standard is particularly relevant for G10 epoxy sheets, as it defines the physical, electrical, and thermal properties that the material must exhibit. Aerospace buyers should ensure that G10 sheets comply with the appropriate grade and class specifications outlined in ASTM D709 to guarantee performance in critical aircraft systems.

MIL-I-24768 Military Specification for Insulation, Plastics, Laminated, Thermosetting

MIL-I-24768 is a military specification that sets stringent requirements for thermosetting laminated plastics used in military and aerospace applications. This standard covers various grades of materials, including G10 epoxy sheets. Compliance with MIL-I-24768 ensures that the G10 material meets the demanding performance criteria necessary for use in military and defense-related aerospace projects.

Material Traceability and Documentation Compliance in Aerospace Supply Chains

Batch Testing and Material Property Verification

Aerospace buyers must require comprehensive batch testing documentation for G10 epoxy sheets. This documentation should include detailed test results verifying key material properties such as tensile strength, flexural strength, dielectric breakdown voltage, and thermal conductivity. Each batch of G10 sheets should be accompanied by test reports demonstrating compliance with the specified aerospace standards and customer requirements.

Certificates of Conformance and Material Certifications

Suppliers of G10 epoxy sheets for aerospace applications must provide certificates of conformance (CoC) for each shipment. These CoCs serve as formal declarations that the material meets all applicable specifications and standards. Additionally, material certifications detailing the chemical composition, manufacturing process parameters, and quality control measures should be available upon request to ensure full transparency and traceability throughout the supply chain.

Raw Material Source Documentation

To maintain complete traceability, aerospace buyers should require documentation on the raw materials used in G10 epoxy sheet production. This includes information on the glass fiber reinforcement, epoxy resin system, and any additives or modifiers incorporated into the composite. Suppliers should be able to provide details on raw material sources, lot numbers, and any relevant certifications to demonstrate the pedigree of the finished G10 product.

Testing and Certification Procedures for Flight-Grade G10 Components

Mechanical Property Testing

Flight-grade G10 components undergo rigorous mechanical property testing to ensure they can withstand the extreme forces encountered during aerospace operations. These tests include tensile strength, compressive strength, flexural strength, and impact resistance evaluations. Specialized testing procedures, such as those outlined in ASTM D638 for tensile properties and ASTM D790 for flexural properties, are employed to characterize the material's performance under various loading conditions. The results of these tests must meet or exceed the minimum requirements specified for aerospace-grade G10 materials.

Electrical and Dielectric Property Verification

Given the critical nature of electrical systems in aircraft, G10 epoxy sheets used in aerospace applications must undergo comprehensive electrical and dielectric property testing. This includes measurements of dielectric strength, volume resistivity, surface resistivity, and arc resistance. Testing procedures adhere to standards such as ASTM D149 for dielectric breakdown voltage and ASTM D257 for DC resistance. The results of these tests are crucial in ensuring that G10 components can maintain their insulating properties under the diverse environmental conditions encountered during flight.

Environmental and Durability Testing

Aerospace G10 components must demonstrate resilience to extreme environmental conditions. Testing procedures include thermal cycling to simulate temperature fluctuations during flight, humidity exposure tests to assess moisture resistance, and salt spray testing to evaluate corrosion resistance. Additionally, flame resistance testing in accordance with FAR 25.853 may be required for certain applications. These environmental and durability tests help validate the long-term performance and reliability of G10 epoxy sheet components in aerospace systems.

Conclusion

G10 epoxy sheet certification requirements for aerospace buyers encompass a complex array of standards, testing procedures, and documentation protocols. Ensuring compliance with AS9100, ASTM D709, and MIL-I-24768 standards is paramount for aerospace-grade G10 materials. Rigorous batch testing, comprehensive material traceability, and detailed certification documentation are essential components of the qualification process. By adhering to these stringent requirements, aerospace manufacturers can confidently integrate G10 epoxy sheet components into their aircraft systems, knowing that the material meets the highest standards of quality, reliability, and performance demanded by the aerospace industry.

FAQs

1. What are the key properties of G10 epoxy sheets that make them suitable for aerospace applications?

G10 epoxy sheets offer high mechanical strength, excellent dielectric properties, thermal stability, and chemical resistance. These properties make them ideal for various aerospace components, including insulators, bushings, and structural parts.

2. How does G10 compare to FR4 in aerospace applications?

While both G10 and FR4 are glass-reinforced epoxy laminates, G10 typically offers superior mechanical and thermal properties, making it more suitable for demanding aerospace applications where high performance is critical.

3. Can G10 epoxy sheets be used in cryogenic aerospace applications?

Yes, certain variations of G10 epoxy sheets are specifically designed for cryogenic applications, offering excellent stability and performance at extremely low temperatures, making them suitable for use in aerospace systems operating in cold environments.

Trust J&Q for Your Aerospace-Grade G10 Epoxy Sheet Needs

At J&Q, we specialize in producing high-quality G10 epoxy sheets that meet the rigorous certification requirements for aerospace applications. With over 20 years of experience in manufacturing insulating sheets and 10 years in international trade, we offer unparalleled expertise and service. Our in-house logistics company ensures seamless delivery worldwide. For premium aerospace-grade G10 epoxy sheets and expert support, contact us at info@jhd-material.com.

References

Aerospace Materials Handbook: Composites and Advanced Materials, CRC Press, 2019

SAE International, "AS9100 Quality Management Systems - Requirements for Aviation, Space, and Defense Organizations", 2018 Revision

ASTM International, "ASTM D709 Standard Specification for Laminated Thermosetting Materials", 2017 Edition

Department of Defense, "MIL-I-24768 Military Specification: Insulation, Plastics, Laminated, Thermosetting", Latest Revision

Federal Aviation Administration, "Advisory Circular 20-107B, Composite Aircraft Structure", 2009

Journal of Aerospace Engineering, "Advanced Composite Materials in Modern Aircraft Structures", Volume 32, Issue 4, 2020
