The Composition and Manufacturing Process of FR4 Epoxy Sheet
Raw Materials and Their Roles

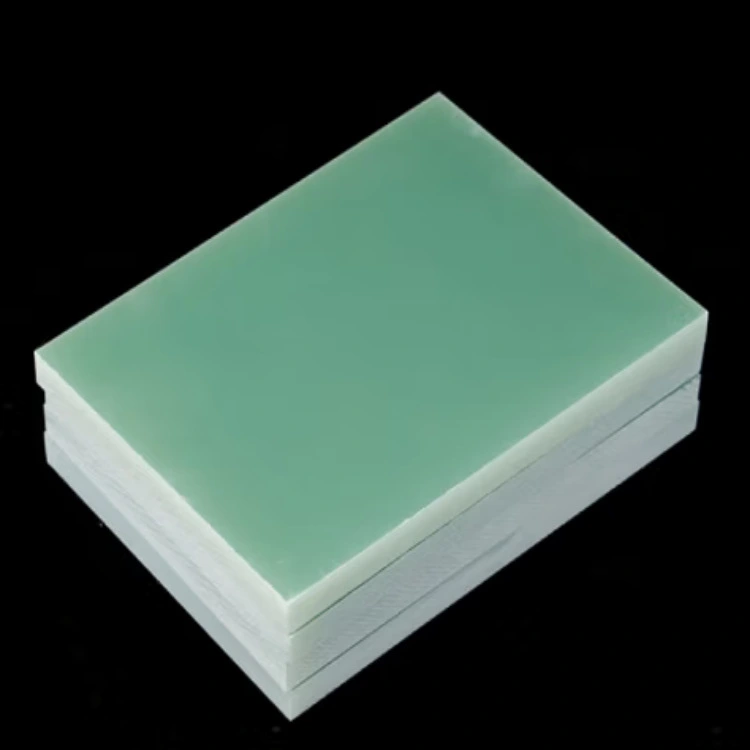

FR4 epoxy sheet is a composite material comprised of two primary components: fiberglass cloth and epoxy resin. The fiberglass cloth serves as the reinforcement, providing mechanical strength and dimensional stability. Woven from high-quality glass fibers, this cloth forms the backbone of the FR4 structure. The epoxy resin, on the other hand, acts as the binding agent, encapsulating the fiberglass and imparting excellent electrical insulation properties. This resin is typically a thermoset polymer, which means it undergoes an irreversible chemical reaction during curing, resulting in a highly durable and heat-resistant material.
Manufacturing Techniques
The production of FR4 epoxy sheet involves a meticulous process that ensures consistent quality and performance. Initially, the fiberglass cloth is impregnated with liquid epoxy resin in a controlled environment. This step, known as prepregging, involves carefully saturating the cloth with a precise amount of resin to achieve the desired resin-to-glass ratio. The prepreg sheets are then partially cured, reaching a state where they are tacky but still flexible, often referred to as B-stage.
Subsequently, multiple layers of these prepreg sheets are stacked together, with the number of layers determining the final thickness of the FR4 epoxy board. The stack is then subjected to high pressure and heat in a lamination press. This process causes the epoxy resin to flow and fully cure, bonding the layers into a single, homogeneous FR4 epoxy board sheet. The result is a dense, void-free material with excellent electrical and mechanical properties.
Quality Control and Grading
FR4 epoxy sheets undergo rigorous quality control measures to ensure they meet industry standards. Various tests are conducted to evaluate properties such as dielectric strength, glass transition temperature, and flame resistance. The material is typically graded based on these properties, with different grades suitable for specific applications. For instance, high-temperature grades of FR4 are designed for use in demanding environments, while standard grades are suitable for most consumer electronics applications.
Key Properties and Applications of FR4 Epoxy Sheet
Electrical Properties
The electrical characteristics of FR4 epoxy sheet are paramount to its widespread use in the electronics industry. It boasts a high dielectric strength, typically ranging from 20 to 80 kV/mm, which allows it to effectively insulate electronic components and prevent current leakage. The material's low dielectric constant (usually between 4.2 and 5.0 at 1 MHz) minimizes signal loss and crosstalk in high-frequency applications, making it ideal for use in high-speed digital circuits.
Moreover, FR4 epoxy sheet exhibits excellent electrical resistivity, both volume and surface, ensuring minimal current flow through the material itself. This property is crucial for maintaining signal integrity and preventing unwanted interactions between different parts of a circuit. The material's low dissipation factor further contributes to its suitability for high-frequency applications by minimizing energy loss in the form of heat.
Mechanical and Thermal Properties
Beyond its electrical prowess, FR4 epoxy sheet possesses remarkable mechanical and thermal characteristics. Its high flexural strength, typically exceeding 300 MPa, allows it to withstand the physical stresses encountered during assembly and operation of electronic devices. The material's dimensional stability across a wide temperature range is particularly valuable, as it helps maintain the integrity of complex circuit designs under varying environmental conditions.
Thermally, FR4 epoxy sheet demonstrates impressive performance. Its glass transition temperature (Tg) can range from 130°C to over 180°C for high-temperature grades, enabling it to maintain its properties in demanding thermal environments. The material's low coefficient of thermal expansion (CTE) helps minimize stress on components and solder joints during temperature fluctuations, enhancing the overall reliability of electronic assemblies.
Applications Across Industries
The versatility of FR4 epoxy board sheet has led to its adoption across a diverse range of industries and applications. In the realm of consumer electronics, it serves as the substrate for motherboards in computers, smartphones, and tablets. The automotive sector relies on FR4 epoxy board for engine control units and advanced driver assistance systems. In the aerospace industry, FR4 epoxy board sheets find use in avionics and satellite communications equipment, where reliability under extreme conditions is paramount.
FR4 epoxy sheet also plays a crucial role in industrial control systems, medical devices, and telecommunications infrastructure. Its ability to be precisely machined and drilled allows for the creation of complex multilayer PCBs, enabling the miniaturization and increased functionality of modern electronic devices. As the Internet of Things (IoT) continues to expand, FR4 boards are at the heart of countless sensors and connected devices, powering the smart technology revolution.
Innovations and Future Trends in FR4 Epoxy Sheet Technology
Advancements in Material Composition
The electronics industry's relentless pursuit of higher performance and miniaturization is driving continuous innovation in FR4 epoxy sheet technology. Recent advancements have focused on enhancing the material's thermal management capabilities, a critical factor as device power densities increase. Researchers are exploring the incorporation of thermally conductive fillers, such as ceramic particles or carbon nanotubes, into the epoxy matrix to improve heat dissipation without compromising electrical insulation properties.
Another area of innovation lies in the development of halogen-free FR4 epoxy board formulations. Traditional FR4 epoxy board materials often contain brominated flame retardants, which have raised environmental concerns. New, eco-friendly alternatives are being introduced that achieve the necessary flame resistance through the use of phosphorus-based compounds or inorganic fillers. These green FR4 epoxy board variants not only address environmental issues but also comply with increasingly stringent global regulations on hazardous substances in electronics.
High-Frequency and High-Speed Applications
As electronic devices operate at ever-higher frequencies, there is a growing demand for FR4 epoxy sheets optimized for high-frequency and high-speed applications. Materials scientists are working on formulations with lower dielectric constants and dissipation factors to minimize signal loss and improve signal integrity at frequencies above 1 GHz. These advanced FR4 variants often incorporate specialized resins and glass fabrics to achieve the desired electrical properties while maintaining the mechanical robustness and manufacturability that have made FR4 so popular.
The push towards 5G and beyond in telecommunications is particularly driving the development of high-performance FR4 materials. These next-generation boards must support higher data rates and lower latencies while maintaining signal integrity over longer distances. Innovations in this area include the use of low-loss materials and advanced laminate structures that can handle the demanding requirements of millimeter-wave frequencies.
Integration with Emerging Technologies
The future of FR4 epoxy sheet technology is closely intertwined with emerging trends in electronics manufacturing. One exciting area is the integration of FR4 with flexible and stretchable electronics. Researchers are exploring ways to create hybrid boards that combine the reliability of traditional FR4 with the flexibility of newer materials, enabling the development of conformable electronic devices for wearable technology and biomedical applications.
Another frontier is the incorporation of FR4 into additive manufacturing processes. While 3D printing of electronic circuits is still in its infancy, there are ongoing efforts to develop printable FR4-like materials that could revolutionize prototyping and small-scale production of electronic devices. These developments could lead to more agile manufacturing processes and enable the rapid iteration of complex electronic designs.
Conclusion
FR4 epoxy sheet stands as a testament to the enduring relevance of well-engineered materials in the fast-paced world of electronics. Its unique combination of electrical, mechanical, and thermal properties has made it the backbone of countless electronic devices that shape our modern world. As we look to the future, the ongoing innovations in FR4 technology promise to extend its utility, ensuring that this versatile material continues to play a pivotal role in the electronics industry for years to come. The adaptability of FR4 epoxy sheet to emerging technologies and evolving manufacturing processes underscores its position as a truly cornerstone material in electronics.
