Properties and Characteristics of FR4 Epoxy Sheet
Composition and Manufacturing Process

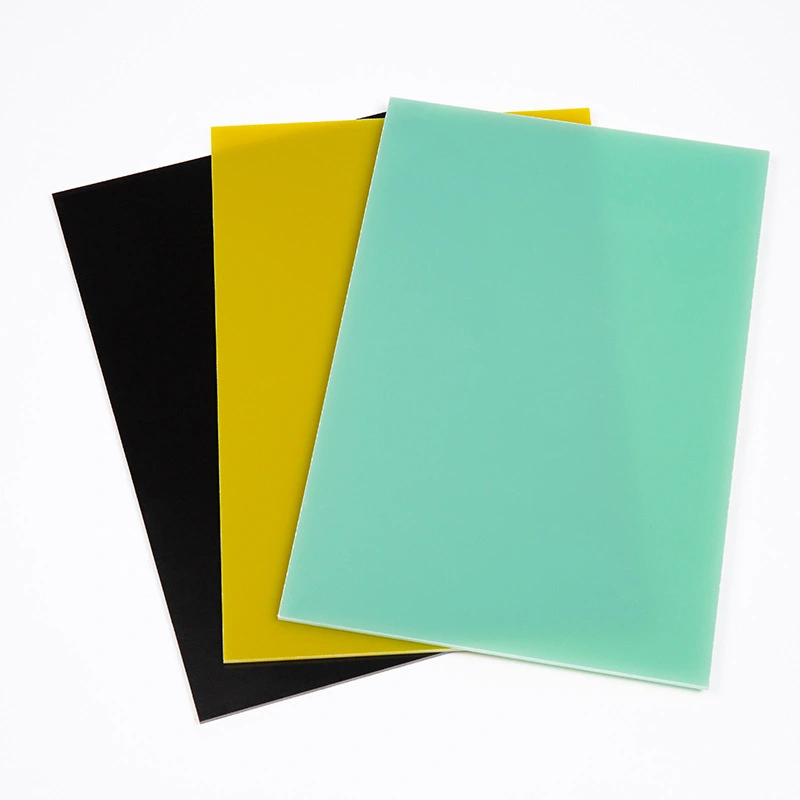

FR4 epoxy sheet is primarily composed of woven fiberglass cloth that is thoroughly impregnated with a specially formulated epoxy resin. The production involves stacking several layers of this prepreg material, which is partially cured fiberglass cloth with resin, and then applying both heat and pressure in an autoclave or press. This curing process bonds the layers into a rigid, dense laminate. The result is a material that is not only strong but also inherently flame retardant, which helps it self-extinguish when exposed to flames, making it a safe choice in electronic applications.
Electrical and Thermal Properties
This material is highly valued for its outstanding electrical insulation capabilities, crucial in preventing short circuits and ensuring signal clarity on printed circuit boards. FR4 epoxy board exhibits a low dielectric constant and minimal loss tangent, which helps maintain signal integrity, especially in high-frequency electronics. Additionally, its thermal performance is notable, withstanding continuous operating temperatures up to 130°C and short bursts up to 180°C. This thermal resilience allows it to maintain stable electrical characteristics and physical form under thermal stress.
Mechanical Strength and Durability
Thanks to its glass fiber reinforcement, FR4 epoxy sheet possesses excellent mechanical strength and superior dimensional stability. It resists deformation such as warping, twisting, or bending, even when subjected to changing humidity or temperature conditions. The material’s rigidity supports the delicate circuitry printed on it, ensuring longevity of electronic components. Furthermore, it can be easily machined—drilled, cut, and shaped—without cracking or chipping, making it highly suitable for intricate PCB designs and reliable in long-term use.
Polyimide: A High-Performance Alternative
Chemical Structure and Synthesis
Polyimide is a category of high-performance polymers defined by the presence of repeating imide groups along its molecular backbone. Its synthesis typically involves a two-step reaction: initially forming polyamic acid intermediates through the reaction of dianhydrides with diamines, followed by imidization, which is achieved either thermally or chemically to produce the final polymer structure. This robust chemical framework imparts exceptional mechanical strength, chemical resistance, and thermal stability. Polyimide materials are versatile and can be fabricated into films, sheets, coatings, and other forms to meet diverse industrial needs.
Thermal and Chemical Resistance
One of the most distinguishing features of polyimide, compared to FR4 epoxy sheet, is its remarkable thermal stability. It can maintain its properties at temperatures exceeding 250°C (482°F), with some formulations capable of withstanding short-term exposure to temperatures as high as 400°C (752°F). This extraordinary heat resistance makes polyimide invaluable in aerospace, automotive, and other high-temperature applications. Additionally, polyimide exhibits excellent resistance to a wide range of chemicals, solvents, and radiation, further expanding its utility in harsh environments.
Flexibility and Dimensional Stability
Unlike the relatively rigid FR4 epoxy sheet, polyimide offers an exceptional balance between flexibility and dimensional precision. It can be bent, twisted, or folded repeatedly without losing its mechanical strength or electrical insulating properties, which makes it ideal for flexible printed circuit boards and other adaptable electronic assemblies. Despite this pliability, polyimide maintains excellent dimensional stability over a broad temperature range, ensuring that its shape and size remain consistent, which is critical for applications that demand tight tolerances and reliable performance under thermal cycling.
Comparative Analysis: FR4 Epoxy Sheet vs. Polyimide
Cost and Availability
When comparing FR4 epoxy sheet and polyimide, cost is often a significant factor. FR4 epoxy board is generally more economical and widely available, making it the preferred choice for many standard PCB applications. The lower cost of FR4 is attributed to its simpler manufacturing process and more abundant raw materials. Polyimide, due to its specialized synthesis and superior properties, commands a higher price point. However, in applications where extreme performance is required, the additional cost of polyimide may be justified by its unique capabilities.
Performance in Extreme Conditions
While FR4 epoxy sheet performs admirably in many electronic applications, polyimide excels in extreme environments. In scenarios involving high temperatures, chemical exposure, or mechanical stress, polyimide often outperforms FR4. For instance, in aerospace or automotive under-hood applications, where temperatures can fluctuate dramatically, polyimide's thermal stability and resistance to degradation make it the material of choice. FR4, however, remains suitable for a wide range of standard operating conditions and continues to be the backbone of the PCB industry.
Application-Specific Considerations
The choice between FR4 epoxy sheet and polyimide often depends on specific application requirements. FR4 is well-suited for multi-layer PCBs, consumer electronics, and general-purpose electrical insulation. Its balance of properties and cost-effectiveness make it ideal for high-volume production. Polyimide, with its superior flexibility and thermal properties, finds applications in flexible circuits, aerospace components, and high-reliability electronics. In some cases, hybrid solutions incorporating both materials may be employed to leverage the strengths of each in different parts of a system.
Conclusion
The difference between FR4 epoxy sheet and polyimide lies in their unique properties and application suitability. FR4 epoxy board offers excellent electrical insulation, good mechanical strength, and cost-effectiveness, making it the go-to choice for standard PCB applications. Polyimide, with its superior thermal stability, chemical resistance, and flexibility, excels in extreme environments and specialized applications. Understanding these differences enables engineers and designers to make informed decisions, selecting the most appropriate material for their specific needs and ensuring optimal performance in diverse electronic applications.
