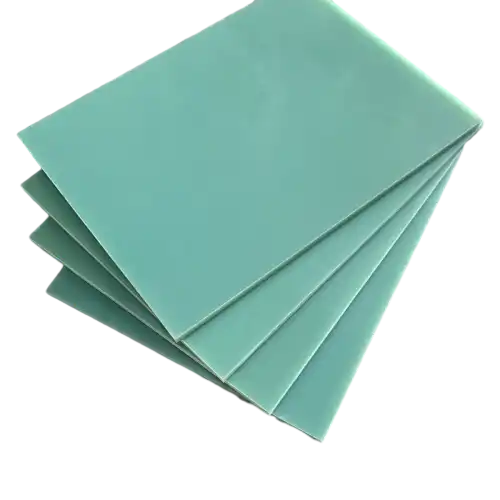

FR4 Epoxy Sheet Moisture Absorption and Stability

FR4 epoxy sheets are renowned for their exceptional moisture resistance and dimensional stability, making them a cornerstone material in the electronics industry. These fiberglass-reinforced epoxy laminates exhibit remarkably low water absorption rates, typically less than 0.1% after 24 hours of immersion. This impressive moisture resistance stems from the tightly cross-linked epoxy resin matrix and the hydrophobic nature of the glass fibers. The material's ability to maintain its electrical and mechanical properties in humid environments ensures the reliability and longevity of printed circuit boards (PCBs) and other electronic components. Understanding the nuances of FR4's moisture absorption characteristics is crucial for engineers and manufacturers seeking to optimize their product performance and durability.

How Does FR4 Epoxy Sheet React to Humidity?

Moisture Barrier Properties of FR4

FR4 epoxy sheets possess inherent moisture barrier properties that significantly contribute to their widespread use in electronic applications. The epoxy resin matrix forms a dense, cross-linked network that impedes water molecule penetration. This molecular structure acts as a formidable barrier against moisture ingress, protecting the internal fiberglass reinforcement and maintaining the material's overall integrity.

Humidity-Induced Dimensional Changes

Despite its excellent moisture resistance, FR4 can experience minimal dimensional changes when exposed to extreme humidity levels. These changes are typically in the range of 0.01% to 0.03% per 1% change in relative humidity. While seemingly small, these variations can be critical in high-precision applications, necessitating careful consideration during design and manufacturing processes.

Impact on Electrical Properties

Humidity exposure can subtly affect the electrical properties of FR4 epoxy sheets. Moisture absorption may lead to slight increases in dielectric constant and dissipation factor. However, these changes are generally negligible under normal operating conditions, thanks to FR4's robust moisture resistance. Engineers must consider these potential variations when designing sensitive high-frequency circuits or applications in extreme environments.

Water Absorption Rate and Dimensional Stability of FR4

Quantifying Water Absorption

The water absorption rate of FR4 epoxy sheets is a critical parameter that directly influences their performance in electronic applications. Standard testing methods, such as ASTM D570, are employed to measure this property. Typically, FR4 materials exhibit water absorption rates of less than 0.1% after 24 hours of immersion and around 0.3% to 0.5% after long-term exposure. These low values underscore FR4's excellent resistance to moisture-induced degradation.

Factors Affecting Dimensional Stability

Several factors contribute to the dimensional stability of FR4 epoxy sheets in the presence of moisture. The glass transition temperature (Tg) of the epoxy resin plays a crucial role, with higher Tg materials generally offering superior dimensional stability. Additionally, the glass fiber content and orientation within the laminate influence the material's response to humidity changes. Manufacturers often optimize these parameters to enhance the overall stability of FR4 products.

Long-Term Stability Considerations

The long-term dimensional stability of FR4 epoxy sheets is a paramount concern for applications requiring sustained performance. Cyclic humidity testing and accelerated aging studies are conducted to evaluate the material's behavior over extended periods. FR4 laminates typically maintain their dimensional integrity remarkably well, with minimal warpage or delamination even after prolonged exposure to fluctuating humidity levels. This long-term stability ensures the reliability of electronic assemblies throughout their intended service life.

Why Moisture Resistance Is Critical in PCB Performance?

Preventing Signal Integrity Issues

Moisture resistance is paramount in maintaining signal integrity within printed circuit boards. Water absorption in PCB substrates can lead to changes in dielectric properties, potentially causing impedance mismatches and signal reflections. FR4 epoxy sheet's low moisture absorption characteristics help preserve the designed impedance of transmission lines, ensuring consistent signal propagation even in humid environments. This stability is particularly crucial for high-speed digital circuits and RF applications where signal integrity is paramount.

Mitigating Delamination Risks

Delamination, the separation of PCB layers, is a serious concern that can be exacerbated by moisture ingress. FR4's moisture resistance plays a vital role in preventing delamination by minimizing water absorption at the interface between copper layers and the epoxy substrate. This resistance to moisture-induced stress helps maintain the structural integrity of multilayer PCBs, reducing the risk of failure during thermal cycling or mechanical stress.

Ensuring Reliability in Harsh Environments

Electronic devices often operate in challenging environments with varying humidity levels. FR4's robust moisture resistance ensures that PCBs can maintain their performance and reliability across a wide range of environmental conditions. This property is particularly valuable in automotive, aerospace, and industrial applications where exposure to humidity fluctuations is common. The stability of FR4 in these conditions contributes significantly to the overall reliability and longevity of electronic systems.

Conclusion

FR4 epoxy sheets stand out as a pinnacle of moisture resistance and stability in the realm of electronic materials. Their low water absorption rates, coupled with excellent dimensional stability, make them an indispensable choice for PCB manufacturing and various electronic applications. The material's ability to maintain its electrical and mechanical properties in the face of humidity challenges ensures the reliability and longevity of electronic devices across diverse operating environments. As the electronics industry continues to evolve, the moisture-resistant properties of FR4 will undoubtedly remain a critical factor in the design and production of high-performance, durable electronic systems.

FAQs

What is the typical water absorption rate of FR4 epoxy sheets?

FR4 epoxy sheets typically exhibit water absorption rates of less than 0.1% after 24 hours of immersion.

How does humidity affect the electrical properties of FR4?

Humidity can cause slight increases in the dielectric constant and dissipation factor of FR4, but these changes are generally negligible under normal operating conditions.

Why is FR4's moisture resistance important for PCB performance?

FR4's moisture resistance is crucial for maintaining signal integrity, preventing delamination, and ensuring reliability in harsh environments, all of which are essential for optimal PCB performance.

Experience the Superior Moisture Resistance of J&Q's FR4 Epoxy Sheets

At J&Q, we leverage over 20 years of experience in producing top-quality insulating sheets to offer FR4 epoxy sheets with exceptional moisture resistance and stability. Our products are engineered to meet the most demanding requirements of the electronics industry. With our extensive foreign trading experience and in-house logistics capabilities, we provide comprehensive solutions tailored to your specific needs. For more information about our FR4 epoxy sheets and how they can enhance your electronic applications, contact us at info@jhd-material.com.
