Composition and Manufacturing of FR4 Boards
Raw Materials and Their Properties

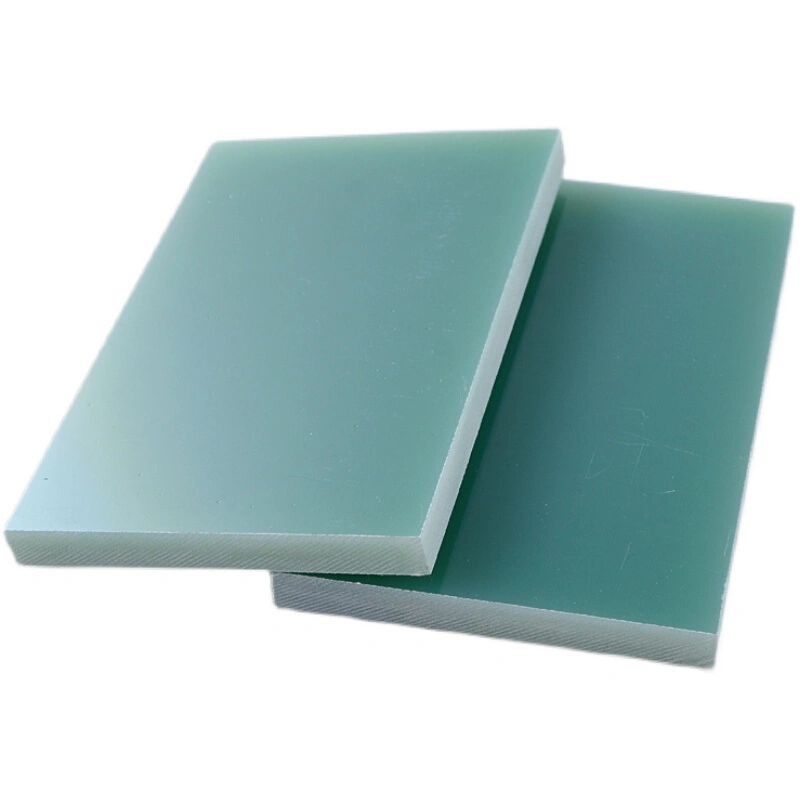

FR4 boards are crafted from a carefully selected blend of materials, each contributing to the final product's exceptional characteristics. The primary components include:
- Fiberglass: Woven glass fibers form the reinforcement structure, providing strength and dimensional stability.
- Epoxy Resin: This thermosetting polymer acts as the matrix, binding the fiberglass and imparting excellent electrical and thermal properties.
- Flame Retardants: Additives that enhance the material's fire-resistant qualities.
- Curing Agents: Catalysts that initiate and control the cross-linking process of the epoxy resin.
The synergy between these materials results in a composite that boasts superior mechanical and electrical properties, making FR4 epoxy sheets a preferred choice in many industries.
Manufacturing Process
The production of FR4 boards involves a meticulous process that ensures consistent quality and performance. Key steps include:
- Prepreg Preparation: Fiberglass cloth is impregnated with epoxy resin and partially cured to create prepreg sheets.
- Layering: Multiple prepreg sheets are stacked to achieve the desired thickness.
- Lamination: The stacked sheets are subjected to heat and pressure in a hydraulic press, fully curing the epoxy and bonding the layers.
- Cooling and Cutting: The laminated panels are cooled and cut to specification.
- Quality Control: Rigorous testing ensures the FR4 epoxy board meets industry standards.
Quality Control Measures
Maintaining the highest quality standards is paramount in FR4 board production. Manufacturers employ various quality control measures, including:
- Dielectric Strength Testing: Ensures the material's ability to withstand high voltages without breakdown.
- Thermal Stress Analysis: Verifies the board's performance under extreme temperature conditions.
- Dimensional Stability Checks: Confirms the material's resistance to warping and shrinkage.
- Chemical Resistance Evaluation: Assesses the board's resilience against various solvents and chemicals.
Characteristics and Properties of FR4 Boards
Electrical Properties
FR4 epoxy sheets excel in electrical applications due to their outstanding insulating properties:
- High Dielectric Strength: Typically ranging from 20 to 80 kV/mm, allowing for effective electrical isolation.
- Low Dielectric Constant: Usually between 4.0 and 4.8, facilitating faster signal propagation in high-frequency applications.
- Low Dissipation Factor: Minimizes energy loss in electrical systems, enhancing overall efficiency.
These electrical characteristics make FR4 boards indispensable in printed circuit board (PCB) manufacturing and other electronic applications requiring reliable insulation.
Mechanical Properties
The robust construction of FR4 epoxy boards imparts excellent mechanical properties:
- High Flexural Strength: Typically exceeding 300 MPa, ensuring resistance to bending and deformation.
- Excellent Tensile Strength: Often surpassing 250 MPa, providing durability under stress.
- Low Coefficient of Thermal Expansion: Minimizes dimensional changes due to temperature fluctuations.
- Good Machinability: Allows for easy drilling, cutting, and shaping without compromising structural integrity.
These mechanical attributes contribute to the FR4 sheet's versatility and reliability in various applications, from aerospace components to industrial machinery.
Thermal Properties
FR4 boards demonstrate remarkable thermal characteristics, making them suitable for high-temperature environments:
- High Glass Transition Temperature (Tg): Usually between 130°C and 180°C, maintaining stability at elevated temperatures.
- Flame Retardancy: Meets UL94 V-0 standards, providing excellent fire resistance.
- Low Thermal Conductivity: Typically around 0.25 W/mK, offering good thermal insulation properties.
- Thermal Endurance: Capable of withstanding continuous exposure to temperatures up to 130°C without significant degradation.
These thermal properties ensure that FR4 epoxy boards remain reliable and safe in applications involving high temperatures or potential fire hazards.
Applications of FR4 Boards
Electronics and PCB Manufacturing
The electronics industry is the primary consumer of FR4 boards, utilizing them extensively in:
- Printed Circuit Boards (PCBs): FR4 serves as the base material for multilayer and single-layer PCBs in various electronic devices.
- Insulating Barriers: Used to create separation between high-voltage components in power supplies and transformers.
- EMI/RFI Shielding: FR4 sheets can be metalized to provide electromagnetic interference protection in sensitive electronic equipment.
- Connector Housings: The material's electrical and mechanical properties make it ideal for manufacturing durable connector housings.
The reliability and performance of FR4 epoxy sheets in these applications have made them an industry standard in electronics manufacturing.
Aerospace and Aviation
The aerospace sector leverages the unique properties of FR4 boards in various critical applications:
- Avionics Enclosures: FR4 sheets provide lightweight, flame-retardant housings for sensitive aircraft electronics.
- Structural Components: Used in non-load-bearing structures where electrical insulation and fire resistance are crucial.
- Radomes: FR4 epoxy boards contribute to the construction of radar-transparent protective covers for antennas.
- Insulation Panels: Employed in aircraft interiors to provide thermal and electrical insulation.
The combination of lightweight construction and excellent electrical properties makes FR4 boards invaluable in aerospace applications where weight reduction and safety are paramount.
Industrial and Automotive Applications
FR4 epoxy sheets find numerous uses in industrial and automotive sectors:
- Electrical Switchgear: Used as insulating barriers and arc shields in high-voltage equipment.
- Motor Winding Insulation: Provides reliable insulation in electric motor manufacturing.
- Automotive Electronics: FR4 boards are used in various vehicle control modules and sensors.
- Industrial Machinery: Serves as insulating components in manufacturing equipment and robotics.
- Renewable Energy: Used in solar inverters and wind turbine control systems.
The versatility and durability of FR4 sheets make them an excellent choice for applications requiring both electrical insulation and mechanical strength in challenging industrial environments.
Conclusion
FR4 boards, with their unique composition of fiberglass and epoxy resin, offer an unparalleled combination of electrical, mechanical, and thermal properties. Their versatility makes them indispensable in electronics, aerospace, and industrial applications. As technology advances, the demand for high-performance materials like FR4 epoxy sheets continues to grow. Their ability to meet stringent requirements for insulation, strength, and flame retardancy ensures their continued relevance in cutting-edge industries. The ongoing development and refinement of FR4 board technology promise even greater capabilities and applications in the future, solidifying its position as a cornerstone material in modern manufacturing and engineering.
