Custom CNC Machined Parts Made from NEMA CE Sheets

Custom CNC machined parts made from NEMA CE sheets are an important option for electrical and industrial uses that need to meet high safety standards and work reliably. With the NEMA CE sheet designation, the strong properties of thermoset plastics are combined with strict certification standards. This makes sure that these parts meet both American NEMA standards and foreign compliance guidelines. These precisely made parts offer better electrical insulation, flame resistance, and mechanical stability in harsh industrial settings.

Understanding NEMA CE Sheets and Certification

Understanding the unique properties and approval standards of NEMA CE sheet materials is the first step in making great electrical insulation components. These special industrial-grade sheets are the result of cutting-edge material science and strict safety rules coming together.

Material Composition and Properties

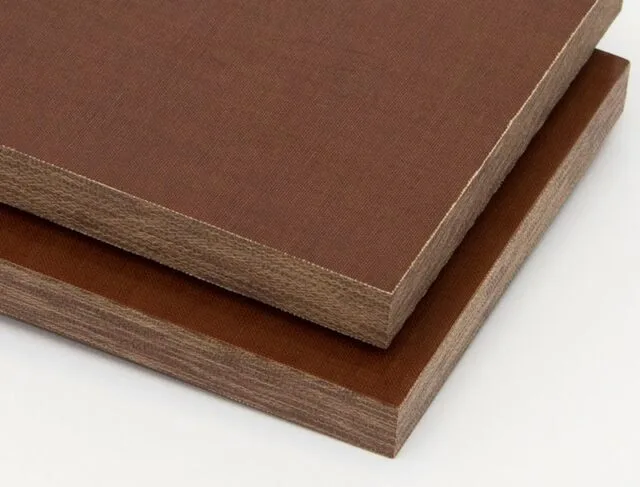

NEMA CE sheets are made of high-quality thermoset resins that are reinforced with glass fibers or cotton cloth. This makes a composite material that has great electrical and mechanical qualities. The resin core has great dielectric strength, and the support materials help keep the structure strong and the right size. Because these sheets are so good at resisting arcs, they are perfect for use in electrical enclosures where a broken part could cause dangerous electrical problems.

During curing, the manufacturing process requires careful control of temperature and pressure. This makes sure that the material qualities are the same in every sheet. When materials are made in this controlled environment, they have known machining properties. This means that finished parts can have tight tolerances and stable performance. These sheets are very good at resisting chemicals like oils, solvents, and cleaning products that are common in industrial settings.

Certification Standards and Compliance

It's important for buying workers who have to deal with complicated legal requirements to know the difference between the different certification standards. The National Electrical Manufacturers Association standards and the Conformité Européenne marking requirements are both covered by NEMA CE certification. This creates a dual-compliance system that makes it easier for products to be sold in foreign markets.

New changes to the licensing rules for 2024 have made it more important to test for flame spread and electrical tracking resistance. These higher standards make sure that approved materials keep their insulating qualities even in harsh conditions. This gives important uses more safety gaps. There are now stricter tests for external stress cracking and long-term thermal stability as part of the approval process.

Advantages of Custom CNC Machined Parts from NEMA CE Sheets

Modern CNC cutting technology unlocks the full potential of NEMA CE sheet materials, turning raw sheets into precise parts that are better made than anything that can be made by hand. This cutting-edge way of making things ensures uniform quality while getting the most out of the benefits of approved materials.

Superior Precision and Quality Control

When it comes to precision for NEMA CE sheet, CNC machining is unmatched. Tolerances of within thousandths of an inch are common, even for complicated shapes. This level of accuracy is very important for electrical parts, where a bad fit can damage the wiring or leave dangerous air holes. Because CNC methods are computer-controlled, they don't depend on human error. This means that every part meets the same specs, no matter how many are being made.

Advanced tool path programming figures out the best way to cut thermoset materials while generating the least amount of heat that could change the qualities of the material. By being careful, the electrical and material properties are kept intact during the machining process. This is what makes NEMA CE sheets useful for safety-critical uses.

Enhanced Material Performance

When CNC precision and NEMA CE sheet qualities are put together, they make parts that work better than expected. Machined edges keep their clean surfaces that don't let water or dirt in, which extends the life of parts in harsh settings. CNC cutting lets you precisely control the dimensions of an object, which makes sure that the material is distributed in the best way possible, increasing its mechanical strength while reducing its weight.

These speed benefits can be seen in a wide range of real-world uses. Companies that make electrical panels say that moving from traditionally made parts to CNC-machined ones cuts assembly time by a lot and improves dependability. Because the quality is always the same, extra processes like filing or drilling are not needed. This saves money on work and lowers the risk of quality problems.

How to Select and Procure NEMA CE Sheet-Based Custom CNC Parts?

To successfully buy approved CNC parts, you need to carefully evaluate sellers and fully understand the quality standards. The decision method affects not only the performance of the parts, but also the success of the project in the long run and compliance with regulations.

Supplier Evaluation Criteria

Checking the state of their certifications and quality management systems is the first step in finding qualified sources. Trustworthy makers keep their NEMA CE certifications up to date and show that they are following the rules by having third parties audit them on a frequent basis. Usually, these sellers give complete paperwork sets that have things like material certificates, dimensional inspection reports, and records of where the materials came from.

It's clear that the supplier knows what they're doing when they can help with engineering during the planning step. Suppliers with a lot of experience can suggest changes to the design that make it easier to make while still meeting performance standards. Costs are often cut and component performance is better when people work together.

Risk Management and Quality Assurance

When buying things, procurement teams for NEMA CE sheet have to carefully weigh the costs of using non-certified materials against the risks they might pose. When looking at prices, options that aren't approved may seem like a good deal, but the risks of liability and legal problems often outweigh any initial savings. In safety-critical uses, you must usually use properly certified parts because of insurance requirements and legal responsibilities.

Setting clear quality standards and testing procedures guards against variations in suppliers and ensures that parts always work as they should. Regular checks of suppliers and inspections of arriving goods help keep quality standards high throughout the supply chain. These proactive steps stop expensive production delays and possible safety problems that could happen because of parts that aren't up to par.

The Custom CNC Machining Process for NEMA CE Sheets

Through carefully controlled manufacturing processes that keep the purity of the material and meet exact measurement requirements, the machining journey turns raw NEMA CE sheets into precision parts. This change needs special skills and tools that are made to work with thermoset materials.

Design and Programming Optimization

Before starting to machine, a thorough study of the design is done to find any problems that might come up and to find the best tool paths for the thermoset material. To keep materials from breaking down during grinding, engineers have to think about things like how much heat is produced, which tools to use, and how fast to cut. When fixtures are designed correctly, they provide enough support while reducing stress concentrations that could lead to cracking or physical distortion.

Advanced CAM software lets you simulate the whole cutting process, which lets you find problems before they happen. This virtual proof cuts down on setup time and waste while making sure that results are the same from one production run to the next. During the planning process, specific cooling methods and cutting factors are also added to keep the material's properties stable during the machining cycle.

Quality Control and Documentation

Comprehensive quality assurance processes make sure that every part meets the requirements and can be fully traced back to its source materials. Using coordinate measuring tools for dimensional inspection makes sure that important features match up with engineering plans. Electrical testing makes sure that the insulation properties stay within the standards. Visual inspection methods find flaws or problems with the way something was machined that might affect its performance or dependability.

Each shipment comes with documentation packages that contain full records of material approvals, machine parameters, and inspection results. Customers can keep up with their own quality management systems with this paperwork, which also makes it easier for regulators to do checks and give approvals. Traceability goes from lots of raw materials to deliveries of finished parts, making sure that everyone is responsible throughout the whole production process.

Industry Applications and Trends for NEMA CE Sheet-Based Parts

NEMA CE sheet components are very important in many fields. They are used for everything from simple insulation barriers to complicated structural elements in high-performance systems. Knowing about these uses helps people who work in buying find ways to improve performance and cut costs.

Electrical and Electronics Manufacturing

Most of the NEMA CE sheet components are bought by the electrical equipment business. These sheets are used for motor mounting parts, switchgear insulation, and transformer barriers. These materials are great for situations where both electrical separation and structural support are needed because they are strong and don't conduct electricity.

Recent trends toward smaller equipment sizes and higher power levels have made more people want thinner sheet materials that work better in heat. In response, manufacturers are making new plastic mixtures that keep their electrical qualities while making it easier for heat to escape. These improvements make it possible to make electrical equipment smaller and more efficient without lowering its safety or dependability.

Industrial Machinery and Automation

More and more, companies that make industrial machinery depend on NEMA CE sheet parts for insulation barriers, bearing supports, and structural parts in automatic systems. These materials are very important in factory settings where cutting fluids and cleaning chemicals are often used because they stay the same size and don't react with chemicals.

Trends in automation are increasing the need for parts with tighter standards and more complicated shapes. With CNC cutting, companies can make complicated forms that would be hard or impossible to make any other way. The ability to change things around helps make it possible to make machines that work better and last longer.

Emerging Applications and Future Trends

There are more and more uses for NEMA CE sheets in green energy, especially in wind turbine electrical systems and solar panel mounting gear. For these uses, you need materials that can last for a long time in harsh environments while still keeping their electrical and mechanical qualities.

As material science continues to grow, better resin blends and strengthening materials will be able to do even better in the future. Advanced manufacturing methods, such as multi-axis CNC machining and mixed manufacturing processes, will make it possible to make parts that are more complicated and work better. These technology improvements will make more uses possible while lowering the overall cost of the system.

Conclusion

To meet the needs of businesses that need certified electrical insulation parts that work well, custom CNC machined parts made from NEMA CE sheets are important. When you combine advanced material qualities with strict certification standards and the ability to make parts with great accuracy, you get parts that are better in both performance and dependability than traditional options. As technology keeps getting better and rules change, it will become even more important that parts are properly approved and made correctly. This is why NEMA CE sheet materials are so important for safety-critical uses in many different industries.

FAQ

What distinguishes NEMA CE sheets from standard electrical insulation materials?

NEMA CE sheets blend American NEMA standards with European CE marking requirements to make materials that are dual-certified and meet foreign compliance standards. Standard insulation materials aren't tested as thoroughly as these sheets are for their electrical properties, heat resistance, and longevity in harsh environments. The dual approval makes it easier for products to be sold around the world and ensures better safety in important situations.

How long does the certification process typically take for custom components?

The certification timeline depends on component complexity and testing requirements, but typically ranges from four to eight weeks for standard applications. For thorough review, parts that need special testing or custom certification methods may need more time. Planning ahead for approval needs early on in the planning process helps avoid delays and makes sure the project is finished on time.

Can existing components be upgraded to meet NEMA CE compliance standards?

To make old parts NEMA CE compliant again, they usually need to be replaced instead of being modified, because the certification covers qualities of the materials that can't be changed after they've been made. But reverse engineering services can use approved materials to make new designs that work just like the old ones. This keeps the functionality while meeting compliance standards. This method works especially well for old technology that needs to meet new safety standards.

Partner with J&Q for Your NEMA CE Sheet Manufacturing Needs

J&Q offers precision-machined parts made from approved NEMA CE sheet materials. They have been making things for over 20 years and have full quality assurance and global shipping capabilities. Our experienced engineering team works with clients to make plans as easy to make as possible while still meeting all certification standards. As a reliable NEMA CE sheet provider, we take care of the whole project, from the original idea to the final delivery, making sure that your parts meet the highest safety and performance standards. Get in touch with us at info@jhd-material.com to talk about your needs and find out how our combined production and transportation services can make your supply chain run more smoothly while still providing the highest quality.
