Compressive Strength Standards for 3240 Epoxy Sheets

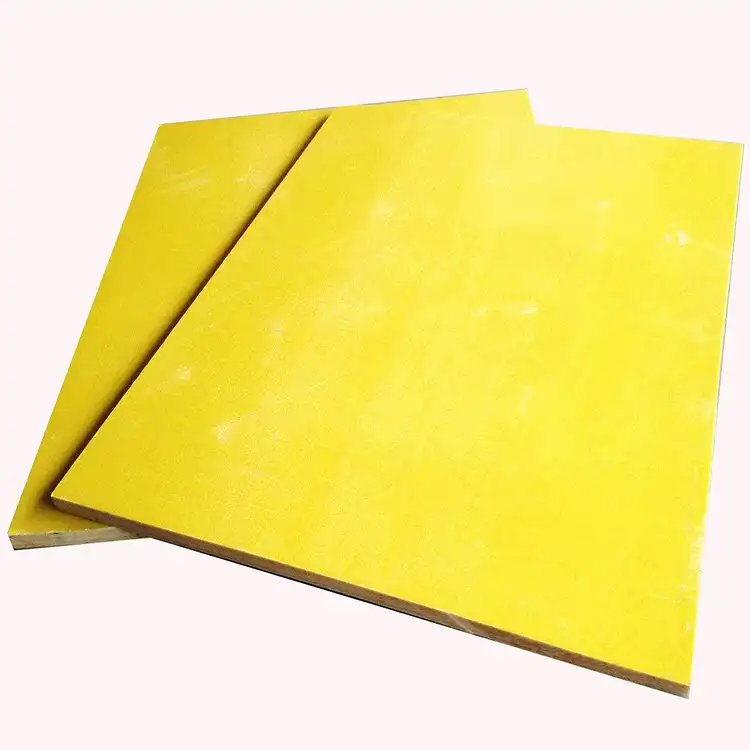

3240 epoxy sheets are renowned for their exceptional compressive strength, making them a top choice for applications requiring high mechanical performance. These sheets typically exhibit compressive strength values ranging from 350 to 450 MPa, depending on specific formulations and manufacturing processes. This impressive strength allows 3240 epoxy sheets to withstand substantial loads without deformation or failure, ensuring reliability in demanding industrial environments. The compressive strength of 3240 material is a critical factor in its widespread use across various sectors, from electrical insulation to structural components in aerospace and automotive industries.

What Is the Typical Compressive Strength of 3240 Material?

Factors Influencing Compressive Strength

The compressive strength of 3240 epoxy sheets is determined by multiple interrelated factors. The specific formulation of the epoxy resin affects the material’s bonding and curing characteristics, directly impacting strength. Additionally, the type and orientation of fiber reinforcement—often glass or carbon fibers—play a vital role in enhancing load-bearing capacity. Manufacturing processes, such as curing temperature and pressure, also influence the sheet’s internal structure and defect minimization. Together, these elements create a composite with optimized resistance to compressive forces, ensuring reliable performance in demanding industrial and structural applications.

Compressive Strength Testing Methods

Testing the compressive strength of 3240 epoxy sheets follows strict protocols established by standards organizations like ASTM International. The procedure involves subjecting a prepared specimen to gradually increasing compressive loads until structural failure occurs. The highest stress the sample withstands without permanent deformation or fracture is recorded as its compressive strength. These tests are performed under controlled environmental conditions to ensure repeatability and accuracy. Data from these evaluations provide critical information for quality control and material certification in engineering projects requiring dependable load resistance.

Comparative Analysis with Other Materials

When compared to other engineering materials such as metals or thermoplastics, 3240 epoxy sheets frequently exhibit a superior compressive strength-to-weight ratio. This means they can sustain high compressive loads while maintaining a lighter mass, an essential advantage in aerospace, automotive, and sporting equipment industries. The combination of toughness, stiffness, and lightweight characteristics positions 3240 epoxy sheets as a premium choice among high-performance composites. Their exceptional strength enables designers to optimize structures for both safety and efficiency without unnecessary material bulk.

Mechanical Load Testing According to IEC and GB Standards

IEC Standards for Electrical Insulation Materials

The International Electrotechnical Commission (IEC) provides comprehensive standards for testing electrical insulation materials, including 3240 epoxy sheets. These standards ensure that materials used in electrical applications meet rigorous safety and performance criteria. IEC 60243-1, for instance, outlines methods for determining dielectric breakdown under compressive stress, which is particularly relevant for 3240 epoxy sheets used in high-voltage applications.

GB Standards and Their Requirements

Chinese GB standards also play a significant role in defining the testing procedures and requirements for 3240 epoxy sheets. GB/T 1449 specifies the test methods for determining the compressive properties of rigid plastics, which includes epoxy-based materials. These standards ensure that 3240 epoxy sheets manufactured or used in China meet specific quality and performance benchmarks.

Correlation Between Standards and Real-World Performance

While standardized tests provide valuable data on material properties, it's essential to understand how these results translate to real-world performance. Engineers and designers must consider factors such as temperature fluctuations, environmental conditions, and long-term stress when applying 3240 epoxy sheets in various applications. The correlation between laboratory test results and actual performance under diverse operating conditions is crucial for ensuring the reliability and safety of components made from 3240 material.

Industrial Applications Requiring High Compressive Performance

Aerospace and Aviation Components

In the aerospace industry, 3240 epoxy sheets find extensive use in structural components that must withstand extreme compressive forces. From aircraft interiors to critical parts in engines and landing gear, the high compressive strength of 3240 material ensures durability and safety in flight. The ability to maintain performance under varying atmospheric pressures and temperatures makes these epoxy sheets indispensable in aviation applications.

Electrical Insulation in High-Stress Environments

The electrical sector heavily relies on 3240 epoxy sheets for insulation in high-stress environments. Transformers, switchgear, and other high-voltage equipment often incorporate these materials due to their excellent electrical properties combined with superior compressive strength. This combination ensures reliable operation and safety in power distribution systems, even under extreme mechanical and electrical stresses.

Automotive and Transportation Applications

In the automotive industry, 3240 epoxy sheets contribute to the development of lighter, stronger vehicles. These materials are used in various components, from structural reinforcements to underhood applications where high compressive strength is essential. The ability to withstand the vibrations and stresses associated with vehicle operation makes 3240 epoxy sheets a valuable material in modern automotive design and manufacturing.

Conclusion

The exceptional compressive strength of 3240 epoxy sheets makes them a versatile and reliable material for a wide range of industrial applications. From aerospace to electrical insulation, these sheets provide the necessary performance characteristics to meet the most demanding requirements. As technology advances and new challenges emerge, the role of 3240 epoxy sheets in engineering and manufacturing is likely to expand further, driven by their outstanding mechanical properties and adaptability to diverse operating conditions.
