CNC FR4 & G10 Material Machining and Fabrication

CNC machining of FR4 sheet and G10 laminates is the key to effective production in the electronics and industrial manufacturing worlds, where accuracy and longevity are important. These glass-reinforced epoxy materials are very good at insulating electricity, being strong, and staying stable at high temperatures. These are all very important qualities for a wide range of uses, from printed circuit boards to transformer insulation. When sourcing managers and engineering teams know how CNC machining can bring out the best in these materials, they can make decisions that improve product quality while keeping costs low in competitive markets.

Understanding FR4 and G10 Materials

What Makes FR4 and G10 Essential Industrial Laminates

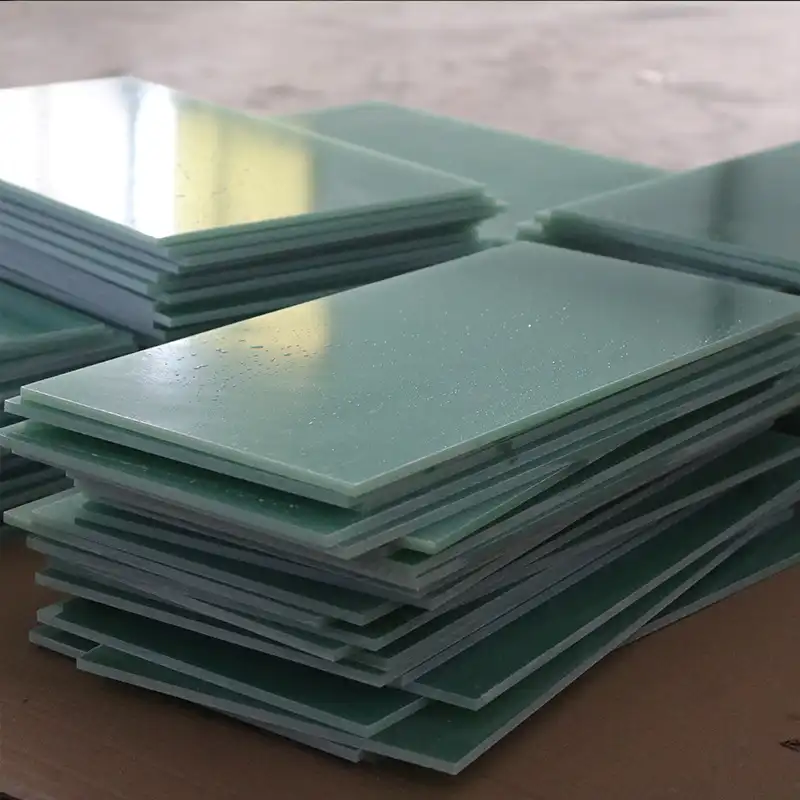

FR4 stands for Flame Retardant 4. It is a hybrid material made of woven fiberglass cloth that has an epoxy resin glue mixed into it. This material has set the standard for electrical protection and mechanical support in the technology industry around the world. The "FR" label makes it clear that it can put out fires on its own and meets UL94 V-0 flammability standards, which is a must for safety-critical uses.

The way that G10 and FR4 are made is similar: they both use continuous thread glass cloth and epoxy resin. Flame retardancy is the main difference. G10 doesn't have any brominated or halogen-free flame retardants, so it can be used in situations where mechanical performance is more important than fire resistance. Both materials have great physical stability over a wide range of temperatures, can withstand chemical contact well, and can keep their shape under heavy mechanical loads.

Core Physical and Electrical Characteristics

At 1 MHz frequency, the dielectric constant of these epoxy laminates is usually between 4.2 and 5.0, which means that the electrical performance is the same across circuits. This stability makes precise resistance control possible, which is important for sending high-frequency signals in electronics for telecommunications and spacecraft. The dissipation factor stays incredibly low, which keeps energy loss to a minimum while electrical signals travel and helps the device work efficiently.

The tensile strength of these materials is above 310 MPa and the bending strength is above 380 MPa. This means that they can handle a lot of force without deforming. The rate of water absorption stays below 0.1%, which means that the dielectric qualities stay fixed even in places with a lot of moisture, which is where many paper-based laminates fail. For constant use, the temperature range goes from -40°C to +130°C, and for short periods of time, it can hit 140°C.

In the manufacturing process, several pieces of glass cloth are stacked on top of each other, saturated with epoxy resin under controlled conditions, and left to cure under high temperature and pressure. This method makes a consistent, void-free hybrid whose features are the same from batch to batch. Standard electrical-grade laminates and high-CTI (Comparative Tracking Index) versions for power distribution tools are just a few of the different types that are available.

Thickness Options and Grade Selection

The thickness of most materials is between 0.5 mm and 100 mm, and 0.8 mm, 1.0 mm, 1.6 mm, and 2.4 mm are popular PCB thicknesses. Sheets that are between 6 mm and 50 mm thick are often used in industrial settings where they need to hold structures. For accurate CNC machining, thickness tolerance is becoming more and more important. Reliable sources keep tolerances within ±0.05 mm for FR4 sheet less than 3 mm thick and ±0.15 mm for bigger laminates.

The grade you choose relies on the standards of your application. Standard FR4 is good for most electronics uses, but high Tg (glass transition temperature) versions can handle temperatures higher than 170°C, making them useful for places like the under-hood of cars where temperatures are high. Low CTE grades keep the sizes of the parts from changing too much during temperature cycles, which is very important for the dependability of multi-layer PCBs. Halogen-free choices meet environmental standards and cut down on the release of harmful gases during fires.

CNC Machining Processes for FR4 and G10 Material Fabrication

Why CNC Precision Matters for Epoxy Laminates

With CNC machining, raw FR4 sheet are turned into precisely designed parts that meet very strict size requirements. Computer-controlled machining, on the other hand, can repeat measurements to within microns, so there is no room for error and every part fits the plan specs. When making a lot of power distribution equipment or car battery barriers, where differences in size could affect electrical isolation or mechanical fit, this stability is especially helpful.

The glass fiber support in these materials makes them harder to machine, but CNC machining systems are good at handling these problems. Standard ways of cutting often lead to flaws like fiber pull-out, delamination, or edge tearing, which lower the strength and electrical performance of the material. When the parameters are set up correctly, CNC machining routing and milling processes produce clean edges with little damage to the surface. This keeps the structural integrity needed for load-bearing uses in industrial machinery.

Critical Machining Parameters and Techniques

Because glass threads are rough, CNC machining milling processes for glass-reinforced epoxy laminates need carbide or diamond-coated tools. As the material thickness and surface finish are taken into account, spindle speeds are usually between 18,000 and 24,000 RPM and feed rates are between 1,500 and 3,000 mm/min. These factors find a balance between how well the material is cut and how much tool wear and heat buildup could damage the epoxy matrix.

Routing processes are very good at making the complicated shapes and internal holes that are needed for control panels and motor component housings. Up-cut spiral bits effectively remove chips, stopping material redeposition that could damage surface quality. When surface fibers are compressed by down-cut tooling, the edge quality on the viewable face of artistic or uncovered parts is better.

It takes special care to drill precisely controlled holes for putting PCBs, making electrical connections, or attaching things mechanically. When you use a standard twist drill, the entry and exit points delaminate too much. Dedicated PCB drill bits with carefully ground shapes keep the hole wall's integrity, which is important for the stability of plated-through-hole. Pecking cycles, in which the drill is pulled back over and over to clear out chips, keep the tool from getting too hot and extend its life.

Overcoming Fabrication Challenges

Making dust while grinding is bad for both your health and the quality of the work. Glass strands make particulates that are breathing-safe and need the right extraction devices. When dust builds up on machine parts, it can get in the way of precise actions and affect finished goods. This problem can be solved with integrated vacuum systems or sealed machining areas that keep the clean conditions needed for making circuits.

When working with rough materials, tool wear speeds up very quickly, which changes the accuracy of measurements and the finish of the surface. Setting the time between tool changes based on real cutting time instead of part count makes sure that quality stays the same throughout production runs. Monitoring systems that notice increases in cutting force can change tools automatically before the quality starts to go down.

Allowable errors depend on the thickness of the material and the complexity of the design. For general machining, linear measurements usually stay within ±0.1 mm. When precision grinding comes after the first cutting steps, they get tighter, to ±0.05 mm. Modern CNC machining drilling centers can accurately set holes to within 0.08 mm, which is good enough for multi-layer PCB registration and precise assembly fixings.

Real-World Application Success

A transformer maker had problems with coil insulation barriers that kept breaking because the dimensions weren't always the same because they were cut by hand. By switching to CNC machining routing with improved settings, the difference in sizes was cut by 73%, which almost completely eliminated field failures caused by insulation breakdown. Throughput went up by 40%, and scrap rates dropped from 8.5% to 1.2%. This shows that process control has a direct effect on both quality and cost efficiency.

For proper thermal management, a car electronics seller needed battery pack insulation frames with complicated shapes and close tolerances, often manufactured from high-performance materials such as FR4 sheet and G10 sheet. With CNC machining milling, features like integrated cooling channels, exact mounting boss locations, and contoured surfaces that match the order of battery cells were made possible that were not possible with traditional production. The new parts cut the time it took to put them together by 30% and made them 18% better at handling heat than the old ones.

Procurement Guide: Sourcing FR4 and G10 Materials and Services

Identifying Qualified Material Suppliers

Verification of the certification is the first step in qualifying a seller. When a product is recognized by UL, it means that it meets electricity safety standards that have been proven by independent testing. RoHS compliance makes sure that goods don't contain any restricted dangerous chemicals, which is important for selling them in North America and Europe. ISO 9001 certification means that there are well-established quality control systems that always produce the right properties for the materials.

Testing skills set sellers who do more than just recycle materials apart from those who check the qualities of goods before sending them out. We test supplied materials in-house for dielectric strength, flexural strength, and water absorption to make sure they are exactly what the description says they are. When problems happen in the field and the root cause needs to be found, suppliers who provide material certificates with real test results for each output lot make it possible to track down the problem.

Lead times and transportation costs are greatly affected by where things are located. For normal grades and thicknesses, domestic suppliers usually deliver within one to two weeks. For foreign sellers, delivery times can be up to eight weeks, based on the shipping method. Global suppliers can help close this gap with regional warehousing programs that give local businesses access to goods while also giving them the benefits of making on a larger scale.

Understanding Pricing Structures and Negotiation Strategies

The quality of the material has a big effect on the unit price. Standard electrical-grade laminates set the base price. High Tg versions cost 15–25% more, and halogen-free or low CTE materials cost 30–50% more than base prices. Different thicknesses have different price impacts. Common thicknesses gain from large production volumes, while non-standard measures come with setup fees and minimum order amounts.

When production plans allow for consolidated buying, volume discounts can help lower costs. When compared to spot sales, annual volume contracts usually lead to price cuts of 8–15%, and multi-year agreements can save 12–20%. When you have stable production plans, blanket purchase orders with scheduled releases are a great way to combine the costs of keeping inventory with the benefits of volume pricing.

Value goes beyond unit prices when relationships with suppliers are based on open communication and mutual gain. Getting involved early in the creation of a new product lets you choose the best materials before the designs lock in the specs. Partners are different from transactional sellers because they work together to solve problems when there are quality issues. When supply problems affect larger markets, long-term ties often give allocation priority to their FR4 sheet and G10 sheet orders.

Custom Machining Service Procurement Process

There are more requirements for technical drawings than just simple size requirements. Material call-outs should list exact grades and sizes, along with clear descriptions of other options that can be used. Tolerance standards should be based on practical needs, not arbitrary accuracy. Tolerances that are too tight add costs without adding value. The surface finish standards affect the factors used for machining as well as additional processes such as sanding and polishing.

Quote review is more than just figuring out the price per unit. Lead time promises affect how flexible production schedules can be and how much material is needed. Minimum order numbers decide whether it is still cost-effective to develop prototypes or make small amounts of products. Payment terms affect how cash flow is managed, especially for new businesses and small producers who don't have a lot of cash on hand.

Before purchase orders are sent out, the quality assurance methods should be known. Dimensional inspection methods, like first-article inspection, sample-based checking, or 100% proof, have a direct effect on the number of defects and the amount of work that needs to be done during inspection. Non-conforming material rules make it clear what to do when delivered parts don't meet the standards of the specification. Traceability tools that let you identify lots help with quality checks and following the rules.

Building Trust and Making Informed Decisions with Your FR4 & G10 Machining Partner

Verifying Material Quality and Certification

Documentation for material approval is the basis for quality assurance in important situations. UL approval shows that laminates meet strict standards for fire safety, electrical strength, and resistance to water damage, which are proven by a lot of testing. RoHS compliance certificates are needed for equipment sold in controlled markets to show that it doesn't contain lead, mercury, cadmium, or other restricted chemicals. Material safety data sheets tell you how to properly handle things and how to properly get rid of them in the world.

Performance testing makes sure that the materials you receive match the specs on the paper. During dielectric strength testing, a high voltage is applied between the electrodes until the insulation breaks. This shows that the insulation's ability to meet application standards and have a sufficient safety cushion. Measurements of flexural strength confirm that the structure is mechanically sound under stress conditions that are typical of the final use setting. Standardized testing for water absorption makes sure that the dimensions stay stable and the electrical properties stay the same in wet circumstances.

Third-party lab testing gets rid of the provider conflict of interest that comes with self-certification. Material traits that are checked by a third party provide objective proof for quality checks, customer approval requirements, and regulatory reports. Accredited labs that follow ISO/IEC 17025 standards make sure that test methods are true and that results are correct. This supports claims that an FR4 sheet and G10 sheet product works well and is safe.

Learning from Industry Success Stories

A company that makes power distribution equipment had a lot of problems with arc tracking failures on switchgear insulation panels. This meant that repairs in the field cost a lot more than the prices of the original parts. Material research showed that the provided laminates did not meet the required CTI ratings, even though the paperwork said they did. Switching to a provider with confirmed in-house CTI testing and batch-specific certification got rid of failures that kept happening, which cut warranty claims by 94% and made customers more confident.

A company that makes industrial machinery needed precisely machined insulation spacers with thickness tolerances of ±0.05 mm to make sure that high-voltage systems had enough electrical room. Previous providers sent packages with different sizes, which meant they had to be inspected carefully and were rejected a lot of the time. Through a partnership with a CNC machining expert who used statistical process control, variation in dimensions was constantly cut to within ±0.03 mm. This allowed for sampling-based inspections that cut new quality costs by 60% while also making the assembly line more efficient.

Why Experience and Expertise Matter

With more than 20 years of experience working with insulation materials, we have a deep knowledge of how they are used in a wide range of businesses. This setting lets you make correct material suggestions that take electrical, mechanical, thermal, and environmental factors into account at the same time. Engineering support helps procurement teams and design engineers find the best balance between performance needs and cost limits, making sure that specifications are optimized before choices about production are locked in.

Manufacturing knowledge gained from making millions of parts turns into process knowledge that stops common mistakes in manufacturing. Knowing how the choice of tool, cutting settings, and fixturing methods affect the quality of the edge, the accuracy of the dimensions, and the finish of the surface makes sure that the results are the same for all production amounts. This skill is especially useful when going from small prototypes to full production, because the yield rates and unit costs depend on how solid the process is.

Integrated transportation skills make the supply chain less complicated, especially when buying things from other countries that require customs clearance, freight planning, and different types of paperwork. A single point of contact for supplying materials, precision cutting, quality checking, and planning deliveries makes things easier for management while also making people more accountable. This full-service approach works well for small businesses that want to focus on their main skills instead of managing their supply chains.

Conclusion

CNC machining of glass-reinforced epoxy laminates is an important skill for companies that make electronics, industrial machinery, and power equipment that needs accuracy, consistency, and dependability. Choosing between standard and specialized types of materials affects how well they work, how much they cost, and how reliable they are over time in a wide range of working conditions. When you build relationships with suppliers based on quality checks, open communication, and technical know-how, you get value that goes far beyond transactional price. When companies use these principles to make purchasing choices, they set themselves up for successful manufacturing, lower total cost of ownership, and a competitive edge in markets that are very picky for their FR4 sheet requirements.

FAQ

How does FR4 differ from G10 material?

Both are made of knitted glass cloth and epoxy resin, so they are about the same in terms of how strong they are and how well they conduct electricity. Flame retardancy is the most important change. Glass-reinforced epoxy called FR4 sheet has brominated or non-halogenated flame retardant chemicals that make it UL94 V-0 self-extinguishing. Because it doesn't have these additives, G10 has slightly better engineering qualities but isn't naturally resistant to fire. Applications that have to follow electrical rules that require flame-retardant materials must use FR4 specification. On the other hand, industrial applications that value strength over fire performance may accept G10 specification. Material cost differences are still very small, usually less than 5%. This means that flame retardancy should be the main factor used for selection, not cost.

What machining parameters prevent delamination damage?

Sharp carbide or diamond-coated tools keep cutting cleanly without pulling out too much fiber. Spindle speeds between 18,000 and 24,000 RPM and modest feed rates keep heat from building up, which hurts epoxy bonding. Climb milling, in which the movement of the cutter fits the direction of the feed, makes better edges than regular milling. Recut chips can't damage polished surfaces as long as the flutes are designed correctly and there are enough clearing rounds. Supporting thin materials while they are being cut stops stress from building up at the cutting edges due to bending.

Which thickness suits typical PCB applications?

Standard thicknesses of 1.6 mm are most common for general-purpose PCB uses. These thicknesses balance mechanical strength with board weight and material cost. 0.8 mm or 1.0 mm laminates are often used in high-density consumer gadgets to make device dimensions that are small. 2.4 mm or 3.2 mm boards are used in industrial control systems and power circuits because they are more stable mechanically and give high-voltage lines more room to move. Thinner core materials (usually 0.2 mm to 0.4 mm) are bonded to prepreg layers during lamination on multi-layer boards. The final board width depends on the number of layers and the copper weight needs.

Partner with J&Q for Precision Machining Excellence

J&Q has been making FR4 sheet and doing precise CNC machining for more than 20 years, working with electrical makers, industrial equipment builders, and clients in the power sector all over North America. Our integrated powers, which include finding materials and making the end product, guarantee consistent quality, accurate measurements, and on-time delivery, which makes your supply chain run more smoothly. Our in-house quality systems check each batch against a list of properties, and our dedicated transportation team makes sure everything goes smoothly from placing your order to getting it at your dock. When engineering managers and procurement experts look for a trusted FR4 sheet supplier, they find a key partner that is dedicated to providing technical support, offering competitive prices, and producing high-quality products. You can email our team at info@jhd-material.com to talk about your unique needs, get prices for custom machining, or learn more about how our full-service model lowers your total cost of ownership while making your products more reliable.

References

National Electrical Manufacturers Association. "NEMA LI 1-1998: Industrial Laminating Thermosetting Products." Standards Publication for Electrical Insulation Materials, 1998.

Institute of Printed Circuits. "IPC-4101: Specification for Base Materials for Rigid and Multilayer Printed Boards." Electronics Industry Standards, 2021 Edition.

Underwriters Laboratories. "UL 94: Standard for Safety of Flammability of Plastic Materials for Parts in Devices and Appliances." Safety Certification Testing Protocols, 2023.

American Society for Testing and Materials. "ASTM D229: Standard Test Methods for Rigid Sheet and Plate Materials Used for Electrical Insulation." Material Property Testing Standards, 2020.

Coombs, Clyde F. "Printed Circuits Handbook, Seventh Edition." McGraw-Hill Professional Publishing, 2016.

Society of Manufacturing Engineers. "CNC Machining of Composite Materials: Best Practices for Glass-Reinforced Epoxy Laminates." Technical Paper Series ME-2022-148, 2022.
