Why is 3240 a Foundational Material for Power Generation and Distribution Equipment?
Superior Electrical Insulation Properties

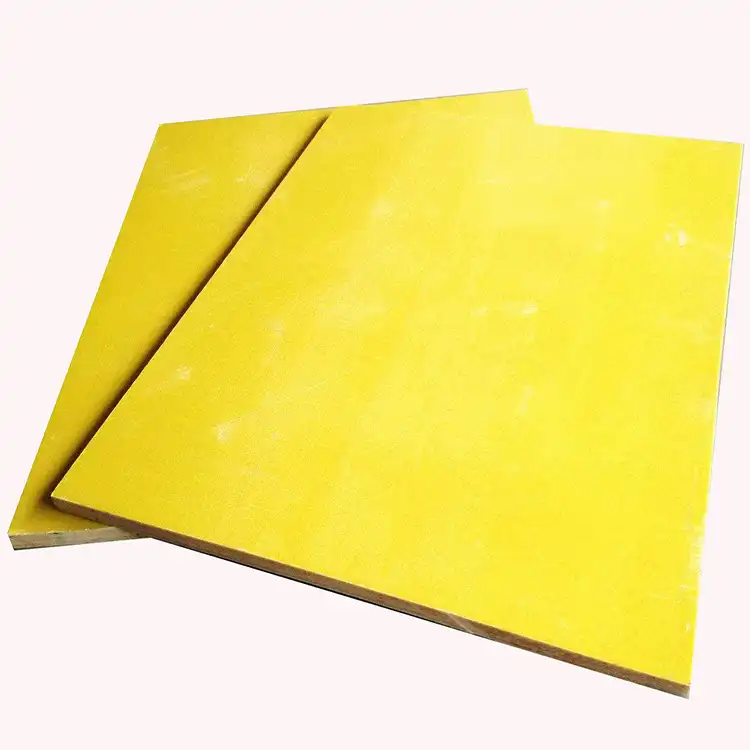

3240 epoxy board is highly valued for its outstanding dielectric strength, making it capable of enduring high voltages without electrical breakdown. Its low dielectric constant and dissipation factor minimize energy losses, improving efficiency in power transmission and distribution systems. The material's high volume and surface resistivity remain consistent even under fluctuating humidity or temperature conditions. This reliability ensures steady insulation performance and long-term stability, allowing 3240 epoxy board to serve as a trusted insulating material in demanding electrical environments.
Thermal and Mechanical Resilience
With a thermal class B rating, 3240 epoxy board maintains its electrical and mechanical integrity at continuous temperatures up to 130°C. This resilience is essential for power generation and distribution systems exposed to constant heat and mechanical stress. The material's impressive flexural and compressive strength provide sturdy support for transformer cores, coils, and windings. Furthermore, its low coefficient of thermal expansion helps prevent dimensional distortion, ensuring precise alignment and operational stability across extended service periods.
Chemical Resistance and Durability
3240 epoxy board offers excellent resistance to oils, solvents, and various corrosive agents frequently encountered in industrial and electrical settings. Its chemical inertness prevents surface degradation and preserves insulation properties over time. The board's low moisture absorption rate reduces the risk of dielectric failure caused by humidity or water exposure. Together, these characteristics enhance the material's durability, ensuring that electrical systems maintain reliability, longevity, and consistent performance even in harsh environmental conditions.
Providing Essential Mechanical Support and Electrical Insulation for Coils and Cores
Structural Integrity in Transformer Design
In modern transformer construction, 3240 epoxy board plays a vital role as a structural component for coil formers, end frames, and core clamps. Its high mechanical strength enables it to endure strong electromagnetic forces and mechanical stress during operation. The material also exhibits excellent dimensional stability under temperature variations. With its superior machinability, 3240 epoxy board can be precisely shaped into components with accurate tolerances, ensuring proper alignment, reduced vibration, and long-term mechanical reliability in transformer assemblies.
Insulation Barriers and Spacers
3240 epoxy board is widely used to manufacture insulation barriers and spacers that separate high-voltage and low-voltage windings in transformers. These components help maintain adequate clearances, preventing electrical arcing and insulation failure. The board's outstanding arc and tracking resistance make it ideal for ensuring long-term operational safety. Additionally, its rigidity and thermal endurance allow spacers and supports to retain their shape and position under heat and stress, reducing the risk of short circuits and ensuring stable transformer performance.
Coil Winding Insulation
During the coil winding process, 3240 epoxy board functions as a dependable interlayer and end insulation material. Its exceptional dielectric strength ensures secure electrical isolation between adjacent turns and layers within the winding assembly. The board's thermal resistance prevents warping, shrinkage, or cracking during resin curing and high-temperature service. By maintaining its insulation integrity over time, 3240 epoxy board helps protect coil windings from electrical stress and enhances the overall durability and efficiency of transformer systems.
Enhancing System Safety and Guaranteeing Long-Term Operational Stability
Flame Retardancy and Fire Safety
3240 epoxy board incorporates flame-retardant additives that significantly reduce the risk of fire propagation in electrical equipment. Its self-extinguishing properties and low smoke emission characteristics contribute to overall system safety. This is particularly crucial in enclosed spaces or areas with high fire risk, where the material's fire-resistant qualities can prevent catastrophic equipment failures and protect personnel.
Partial Discharge Resistance
The dense, void-free structure of 3240 epoxy board provides excellent resistance to partial discharges, which are localized electrical breakdowns within the insulation system. This resistance is vital in high-voltage applications, where partial discharges can lead to progressive degradation of insulation and eventual system failure. By mitigating these micro-discharges, 3240 epoxy board extends the operational lifespan of transformers and other power equipment.
Environmental Adaptability
3240 epoxy board maintains its electrical and mechanical properties across a wide range of environmental conditions. Its low moisture absorption rate and resistance to thermal cycling make it suitable for both indoor and outdoor applications. The material's stability in the presence of transformer oil and other dielectric fluids ensures long-term performance in oil-filled transformers and switchgear. This environmental versatility contributes to the reliability of power systems in diverse climates and operating environments.
Conclusion
3240 epoxy board stands as a cornerstone material in the realm of industrial transformers and power systems. Its unique combination of electrical insulation, mechanical strength, and thermal stability makes it indispensable for ensuring the safety, efficiency, and longevity of critical power equipment. As the demand for reliable and high-performance electrical infrastructure continues to grow, the role of 3240 epoxy board in shaping the future of power generation and distribution remains paramount.
FAQs
What are the key applications of 3240 epoxy board in transformers?
3240 epoxy board is used for coil formers, end frames, core clamps, insulation barriers, spacers, and interlayer insulation in transformer windings.
How does 3240 epoxy board contribute to transformer safety?
It provides excellent electrical insulation, flame retardancy, partial discharge resistance, and maintains its properties in harsh environments, enhancing overall system safety.
What makes 3240 epoxy board suitable for high-voltage applications?
Its high dielectric strength, low dielectric constant, and excellent arc resistance make it ideal for withstanding high voltages without breakdown.
