Composition and Manufacturing Process of Phenolic Cotton Sheets
Raw Materials and Their Properties

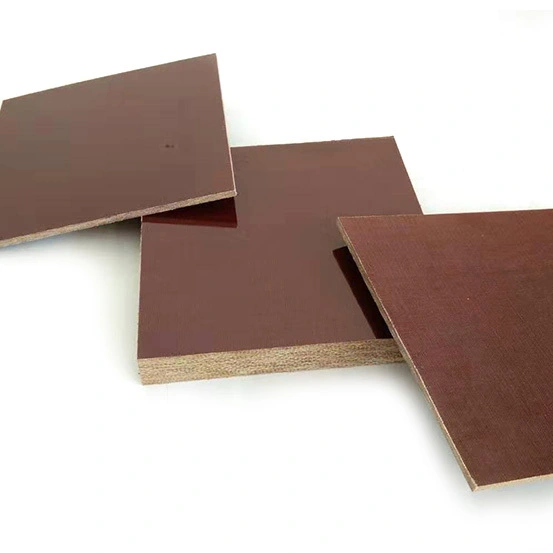

Phenolic cotton sheets, also known as phenolic cotton cloth boards, are composed of carefully selected materials that contribute to their exceptional insulative properties. The primary components include:
- Cotton Fabric: Serves as the base material, providing strength and flexibility.
- Phenolic Resin: A thermosetting polymer that imparts heat resistance and electrical insulation.
- Additives: Various compounds may be incorporated to enhance specific properties such as flame retardancy or moisture resistance.
The cotton fabric utilized in these sheets is typically a high-quality, tightly woven material that offers excellent tensile strength and durability. The phenolic resin, derived from phenol and formaldehyde, undergoes a curing process that results in a cross-linked polymer structure. This structure is responsible for the material's heat resistance and dimensional stability.
Manufacturing Techniques
The production of phenolic cotton sheets involves a meticulous process that ensures the uniform distribution of resin throughout the cotton fabric. The key steps in the manufacturing process include:
- Impregnation: The cotton fabric is saturated with liquid phenolic resin under controlled conditions.
- Drying: Excess resin is removed, and the impregnated fabric is partially dried.
- Layering: Multiple layers of impregnated fabric are stacked to achieve the desired thickness.
- Compression: The layered material is subjected to high pressure and heat in hydraulic presses.
- Curing: The sheets undergo a carefully controlled curing process to fully polymerize the resin.
- Finishing: The cured sheets are trimmed, sanded, and inspected for quality assurance.
This manufacturing process results in a homogeneous material, known as phenolic cotton cloth board, with consistent properties throughout its thickness, ensuring reliable performance in electrical insulation applications.
Quality Control Measures
To maintain the high standards required for electrical insulation materials, rigorous quality control measures are implemented throughout the production process. These include:
- Raw material testing to verify the purity and properties of cotton fabric and phenolic resin.
- In-process monitoring of temperature, pressure, and curing time during manufacturing.
- Non-destructive testing techniques such as ultrasonic inspection to detect internal defects.
- Electrical property testing, including dielectric strength and insulation resistance measurements.
- Physical property assessments, such as tensile strength, flexural strength, and hardness tests.
- Dimensional accuracy checks to ensure consistent thickness and flatness.
These quality control measures ensure that each phenolic cotton sheet meets or exceeds industry standards for electrical insulation materials.
Unique Properties and Advantages of Phenolic Cotton Sheets
Electrical Insulation Characteristics
Phenolic cotton sheets exhibit exceptional electrical insulation properties that make them ideal for a wide range of applications. Some key characteristics include:
- High Dielectric Strength: The ability to withstand strong electric fields without breakdown.
- Low Dielectric Loss: Minimal energy dissipation when subjected to alternating electric fields.
- Volume and Surface Resistivity: Excellent resistance to current flow both through and along the surface of the material.
- Arc Resistance: The capability to resist electrical arcing and tracking.
These properties ensure that phenolic cotton sheets provide reliable insulation in various electrical systems, from low-voltage applications to high-power equipment.
Thermal and Mechanical Properties
In addition to their electrical insulation capabilities, phenolic cotton sheets boast impressive thermal and mechanical properties:
- Heat Resistance: Ability to maintain structural integrity and insulative properties at elevated temperatures.
- Dimensional Stability: Minimal expansion or contraction under varying temperature conditions.
- Mechanical Strength: High tensile, compressive, and flexural strength for durability in demanding environments.
- Machinability: Can be easily cut, drilled, and shaped without compromising insulative properties.
- Low Thermal Conductivity: Effective barrier against heat transfer in electrical systems.
These attributes contribute to the longevity and reliability of electrical components and systems that utilize phenolic cotton sheets for insulation.
Chemical and Environmental Resistance
Phenolic cotton sheets demonstrate remarkable resistance to various chemical and environmental factors:
- Moisture Resistance: Low water absorption rates, maintaining insulative properties in humid conditions.
- Chemical Inertness: Resistance to oils, solvents, and many common chemicals encountered in industrial settings.
- Flame Retardancy: Inherent resistance to flame propagation, enhancing safety in electrical applications.
- UV Stability: Minimal degradation when exposed to ultraviolet radiation, suitable for outdoor installations.
- Fungal and Bacterial Resistance: Inhibits growth of microorganisms, preserving material integrity over time.
These properties ensure that phenolic cotton sheets maintain their performance and structural integrity even in challenging environmental conditions, contributing to the overall reliability and safety of electrical systems.
Applications and Industry Standards for Phenolic Cotton Sheets
Diverse Applications in Electrical Systems
Phenolic cotton sheets find extensive use across various sectors of the electrical industry:
- Power Generation: Insulation in generators, turbines, and switchgear components.
- Transformers: Core insulation, spacers, and barriers in oil-filled and dry-type transformers.
- Motors and Generators: Slot liners, phase separators, and end laminations.
- Switchboards: Insulating panels and barriers in low and medium voltage switchboards.
- Circuit Breakers: Arc chutes and insulating components in both air and oil circuit breakers.
- Electrical Panels: Mounting boards for electrical components and bus bar insulation.
- Aerospace and Defense: Insulation in avionics and military electrical systems.
- Railway Traction: Insulation in traction motors and control equipment.
The versatility of phenolic cotton sheets, also known as phenolic cotton cloth board, enables their use in both high-voltage and low-voltage applications, contributing to the safety and efficiency of electrical systems across industries.
Industry Standards and Certifications
Phenolic cotton sheets are manufactured and tested to meet stringent industry standards, ensuring their reliability and performance in electrical insulation applications. Key standards and certifications include:
- IEC 60893: International standard for industrial rigid laminated sheets based on thermosetting resins for electrical purposes.
- NEMA LI 1: Standard for industrial laminated thermosetting products.
- ASTM D709: Standard specification for laminated thermosetting materials.
- UL 94: Standard for tests for flammability of plastic materials for parts in devices and appliances.
- IEEE Std 1: IEEE Standard for General Principles for Temperature Limits in the Rating of Electric Equipment and for the Evaluation of Electrical Insulation.
- RoHS Compliance: Restriction of Hazardous Substances directive for electrical and electronic equipment.
Adherence to these standards ensures that phenolic cotton sheets meet or exceed the performance and safety requirements for electrical insulation materials across various applications and industries.
Future Trends and Innovations
The field of electrical insulation materials, including phenolic cotton sheets, continues to evolve with emerging technologies and industry demands:
- Enhanced Thermal Management: Development of phenolic cotton sheets with improved heat dissipation properties for high-power density applications.
- Nanocomposite Integration: Incorporation of nanoparticles to enhance specific properties such as thermal conductivity or dielectric strength.
- Smart Insulation Systems: Integration of sensors for real-time monitoring of insulation health and performance.
- Eco-friendly Formulations: Research into bio-based resins and sustainable cotton sources to reduce environmental impact.
- Tailored Solutions: Customized phenolic cotton sheets with application-specific properties for specialized electrical systems.
- Advanced Manufacturing Techniques: Exploration of additive manufacturing and precision layering methods for complex geometries.
These advancements aim to further improve the performance, reliability, and sustainability of phenolic cotton sheets in electrical insulation applications, meeting the evolving needs of the industry.
Conclusion
Phenolic cotton sheets stand out as an exceptional choice for electrical insulation, offering a unique combination of electrical, thermal, and mechanical properties. Their versatility, durability, and compliance with industry standards make them indispensable in a wide range of electrical applications. As the electrical industry continues to evolve, phenolic cotton sheets adapt to meet new challenges, incorporating innovations that enhance their performance and sustainability. By choosing phenolic cotton sheets for electrical insulation, manufacturers and engineers can ensure the safety, reliability, and efficiency of their electrical systems, contributing to the advancement of technology across diverse sectors.
