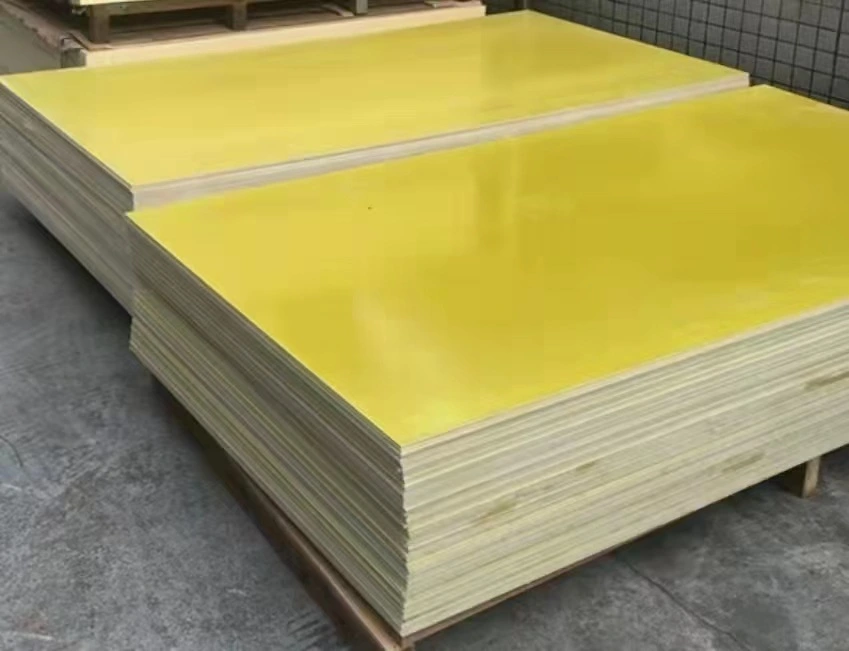

Why 3240 Epoxy Sheet Is Suitable for Transformer Components?

3240 epoxy sheet stands out as an exceptional material for transformer components due to its unique combination of electrical, mechanical, and thermal properties. This high-performance composite excels in providing superior electrical insulation, crucial for preventing breakdowns in high-voltage environments. Its remarkable mechanical strength ensures durability and reliability, even under the constant stress transformers endure. Furthermore, the sheet's excellent thermal stability allows it to maintain its integrity and performance in the heat-intensive conditions typical of transformer operations. These attributes, coupled with its resistance to moisture and chemicals, make 3240 epoxy sheet an ideal choice for enhancing transformer efficiency, longevity, and safety across various industrial applications.

How Does 3240 Epoxy Sheet Enhance Transformer Performance?

Electrical Insulation Excellence

3240 epoxy sheet significantly boosts transformer performance through its exceptional electrical insulation properties. The material's high dielectric strength effectively prevents current leakage and electrical breakdowns, even under extreme voltage conditions. This robust insulation capability ensures the transformer operates at peak efficiency, minimizing energy losses and enhancing overall reliability. Moreover, the sheet's low dielectric constant contributes to reduced capacitive coupling between windings, thereby improving signal integrity and reducing electromagnetic interference within the transformer assembly.

Mechanical Strength and Durability

The mechanical robustness of 3240 epoxy sheet plays a crucial role in enhancing transformer longevity and performance. Its high tensile and flexural strength allow it to withstand the mechanical stresses induced by electromagnetic forces within the transformer. This resilience prevents deformation and maintains the precise positioning of transformer components, ensuring consistent electrical characteristics over time. Additionally, the sheet's excellent dimensional stability across varying temperatures helps maintain the structural integrity of the transformer, preventing issues like core shifting or winding displacement that could compromise performance.

Thermal Management Capabilities

Effective thermal management is paramount in transformer operation, and 3240 epoxy sheet excels in this aspect. Its superior heat resistance allows it to maintain its structural and electrical properties even at elevated temperatures typically encountered in transformer environments. The material's low thermal expansion coefficient minimizes stress on adjacent components during temperature fluctuations, preserving the transformer's internal geometry. Furthermore, its ability to dissipate heat efficiently aids in preventing hotspots, thereby extending the lifespan of the transformer and maintaining its operational efficiency under varying load conditions.

Electrical Insulation and Thermal Stability Advantages

Dielectric Strength and Voltage Endurance

The electrical insulation advantages of 3240 epoxy sheet are particularly noteworthy in transformer applications. Its exceptionally high dielectric strength, typically exceeding 20 kV/mm, provides a robust barrier against electrical breakdown. This property is crucial in high-voltage transformers where insulation failure can lead to catastrophic consequences. The sheet's ability to maintain its dielectric properties over extended periods, even under continuous electrical stress, contributes significantly to the transformer's long-term reliability. This voltage endurance characteristic ensures that the transformer can operate consistently at its rated voltage without degradation of its insulative properties.

Thermal Class and Heat Resistance

3240 epoxy sheet boasts impressive thermal stability, typically classified as a Class B insulation material according to IEC standards. This classification indicates its ability to withstand continuous operation at temperatures up to 130°C without significant degradation. The material's excellent heat resistance is crucial in transformer applications where heat generation is inevitable. It helps maintain the structural integrity of transformer components and prevents thermal runaway scenarios. The sheet's low thermal expansion coefficient, often less than 20 ppm/°C, further enhances its suitability for transformer applications by minimizing mechanical stress on windings and other components during thermal cycling.

Moisture and Chemical Resistance

Another significant advantage of 3240 epoxy sheet is its resistance to moisture and various chemicals commonly encountered in transformer environments. The material's low water absorption rate, typically less than 0.1%, helps maintain its electrical and mechanical properties even in humid conditions. This characteristic is particularly valuable in outdoor or high-humidity installations where moisture ingress can compromise insulation effectiveness. Additionally, the sheet's resistance to transformer oils and other dielectric fluids ensures long-term stability in oil-filled transformers. This chemical resistance also extends to various cleaning agents and solvents used in transformer maintenance, further contributing to the longevity and reliability of the transformer components.

Industrial Examples in Power Transformers and Switchgear

Application in High-Voltage Power Transformers

In high-voltage power transformers, 3240 epoxy sheet finds extensive use as insulation barriers between windings and in the construction of spacers and support structures. Its high dielectric strength allows for compact transformer designs without compromising insulation integrity. For instance, in a 500 kV transformer, 3240 epoxy sheets are often used to create insulation barriers between primary and secondary windings, effectively preventing voltage creepage and partial discharges. The material's excellent mechanical properties also make it ideal for fabricating support structures that maintain winding geometry under electromagnetic stresses, ensuring consistent transformer performance even during fault conditions.

Role in Switchgear Insulation

Switchgear systems, crucial for power distribution and control, heavily rely on 3240 epoxy sheets for insulation purposes. In medium-voltage switchgear, typically operating between 1 kV and 36 kV, these sheets are used to construct insulating barriers and bushings. Their high tracking resistance and arc quenching properties make them particularly suitable for circuit breaker components. For example, in a 33 kV gas-insulated switchgear (GIS), 3240 epoxy sheets are often employed to create phase separators and support insulators. The material's ability to maintain its insulative properties in the presence of SF6 gas, commonly used in GIS, further underscores its versatility and reliability in switchgear applications.

Dry-Type Transformer Components

Dry-type transformers, increasingly popular due to their environmental friendliness and reduced fire risk, extensively utilize 3240 epoxy sheets. In these transformers, the sheet serves multiple functions, including insulation, structural support, and heat dissipation. For instance, in a 2500 kVA dry-type distribution transformer, 3240 epoxy sheets are often used to create the coil formers and inter-layer insulation. The material's excellent thermal conductivity, combined with its insulative properties, helps in efficient heat dissipation from the windings. This dual functionality allows for more compact transformer designs without compromising on cooling efficiency or electrical safety, making 3240 epoxy sheets an integral component in modern dry-type transformer construction.

Conclusion

3240 epoxy sheet has proven to be an indispensable material in the realm of transformer components, offering a unique blend of electrical insulation excellence, mechanical robustness, and thermal stability. Its superior dielectric properties, coupled with outstanding resistance to environmental factors, make it an ideal choice for enhancing transformer performance and longevity. As the power industry continues to evolve, demanding more efficient and reliable transformer solutions, the role of 3240 epoxy sheet in transformer design and construction is likely to grow, further cementing its status as a critical component in modern electrical infrastructure.

FAQs

What makes 3240 epoxy sheet suitable for transformer components?

3240 epoxy sheet is ideal for transformers due to its high dielectric strength, excellent mechanical properties, and thermal stability, ensuring reliable insulation and durability in high-voltage environments.

Can 3240 epoxy sheet withstand high temperatures in transformers?

Yes, 3240 epoxy sheet can withstand continuous operation at temperatures up to 130°C, making it suitable for the heat-intensive conditions in transformers.

How does 3240 epoxy sheet contribute to transformer efficiency?

It enhances efficiency by providing superior electrical insulation, reducing energy losses, and maintaining consistent performance under varying operating conditions.

Choose J&Q for Premium 3240 Epoxy Sheet Transformer Components

J&Q, with over 20 years of experience in producing and selling insulating sheets, offers superior 3240 epoxy sheets for transformer components. Our expertise in foreign trade and logistics ensures seamless service and product delivery worldwide. For high-quality, reliable 3240 epoxy sheets that enhance transformer performance, contact J&Q at info@jhd-material.com.
