Why 3240 Epoxy Board Is Essential for Electronic Test Equipment?

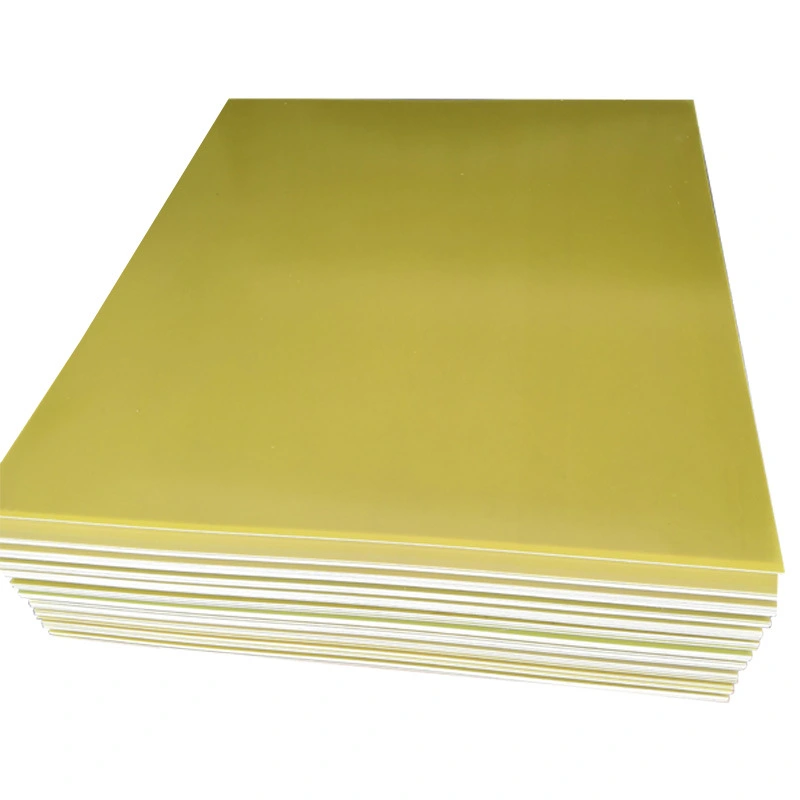

3240 epoxy board is a critical component in electronic test equipment due to its unique combination of mechanical durability and superior electrical insulation properties. This high-performance material provides a robust foundation for structural supports, enclosures, and terminal boards in various testing instruments. Its exceptional resistance to heat, chemicals, and moisture ensures long-term reliability and safety in demanding test environments. The versatility and stability of 3240 epoxy board make it an indispensable material for manufacturers seeking to create precise, dependable, and long-lasting electronic test equipment that can withstand the rigors of continuous use and harsh conditions.

How Does It Balance Mechanical Durability with Superior Electrical Insulation?

Composition and Structure

The 3240 epoxy board's exceptional balance of mechanical strength and electrical insulation stems from its carefully engineered composition. This material combines epoxy resin with fiberglass reinforcement, creating a synergistic blend that capitalizes on the strengths of both components. The epoxy resin provides excellent electrical insulation properties, while the fiberglass reinforcement contributes to the board's mechanical durability and dimensional stability.

Mechanical Properties

The mechanical durability of 3240 epoxy board is truly remarkable. It boasts high tensile and flexural strength, allowing it to withstand significant physical stress without deformation or failure. This resilience is crucial in electronic test equipment, where components may be subjected to vibrations, impacts, or other mechanical forces during operation or transportation. The material's excellent machinability also allows for precise cutting, drilling, and shaping, enabling manufacturers to create intricate designs and custom components for specialized test equipment.

Electrical Insulation Characteristics

While maintaining its mechanical prowess, 3240 epoxy board simultaneously excels in electrical insulation. It exhibits high dielectric strength, low dielectric constant, and excellent volume resistivity. These properties ensure that the material can effectively prevent current leakage and maintain signal integrity in electronic circuits. The board's ability to withstand high voltages without breakdown is particularly valuable in test equipment designed for power electronics or high-frequency applications. Additionally, its low moisture absorption rate helps maintain consistent electrical properties even in humid environments, further enhancing its reliability as an insulator.

A Foundation for Structural Supports, Enclosures, and Terminal Boards

Structural Integrity in Test Equipment Design

3240 epoxy board serves as an excellent foundation for structural supports in electronic test equipment. Its high strength-to-weight ratio allows designers to create robust yet lightweight frames and chassis for various instruments. This property is particularly beneficial in portable test equipment, where minimizing weight without compromising durability is crucial. The material's dimensional stability ensures that structural components maintain their shape and alignment over time, preserving the accuracy and reliability of the test equipment.

Enclosure Solutions for Diverse Testing Environments

When it comes to enclosures for electronic test equipment, 3240 epoxy board offers a versatile solution. Its excellent machinability allows for the creation of custom-shaped enclosures that can house complex assemblies of electronic components. The material's inherent flame retardancy enhances safety in high-power testing applications. Moreover, its resistance to chemicals and solvents makes it suitable for test equipment used in laboratory environments where exposure to corrosive substances is possible. The board's low outgassing properties also make it ideal for enclosures in sensitive testing environments where contamination must be minimized.

Optimized Terminal Board Design

Terminal boards are critical components in electronic test equipment, serving as interface points for various electrical connections. 3240 epoxy board excels in this application due to its superior electrical insulation properties and mechanical strength. The material can be easily machined to accommodate different terminal configurations, allowing for customized layouts that optimize signal routing and minimize crosstalk. Its high arc resistance and tracking resistance ensure the longevity and reliability of terminal boards, even under high-voltage testing conditions. The board's thermal stability also helps maintain the integrity of electrical connections over a wide range of operating temperatures.

Ensuring the Long-Term Reliability and Safety of Test Instruments

Thermal Management and Stability

One of the key factors in ensuring the long-term reliability of electronic test equipment is effective thermal management. 3240 epoxy board plays a crucial role in this aspect due to its excellent thermal properties. The material exhibits low thermal expansion, which helps maintain dimensional stability and prevents warping or distortion of components under varying temperature conditions. Its good heat resistance allows it to withstand elevated temperatures without degradation, making it suitable for use in high-power test equipment where heat dissipation is a concern. The board's thermal conductivity can also be tailored through the addition of fillers, enabling designers to optimize heat distribution within the instrument.

Chemical and Environmental Resistance

The longevity of test instruments often depends on their ability to withstand exposure to various chemicals and environmental factors. 3240 epoxy board demonstrates exceptional resistance to a wide range of chemicals, including acids, alkalis, and organic solvents. This property is particularly valuable in laboratory settings where test equipment may come into contact with corrosive substances. The material's low moisture absorption rate helps prevent degradation in humid environments, ensuring consistent performance over time. Additionally, its resistance to fungal growth makes it suitable for use in tropical climates or other moisture-prone environments, further enhancing the equipment's durability and reliability.

Safety Considerations in Test Equipment Design

Safety is paramount in the design and operation of electronic test equipment, and 3240 epoxy board contributes significantly to this aspect. Its high dielectric strength and excellent insulation properties help prevent electrical hazards by effectively isolating high-voltage components. The material's inherent flame retardancy adds an extra layer of safety, reducing the risk of fire in the event of electrical faults. Moreover, the board's ability to maintain its properties over a wide temperature range ensures consistent safety performance under various operating conditions. Its low toxicity and minimal outgassing also make it a safer choice for test equipment used in enclosed or sensitive environments.

Conclusion

3240 epoxy board stands as an indispensable material in the realm of electronic test equipment, offering a unique combination of mechanical durability, electrical insulation, and long-term reliability. Its versatility in structural supports, enclosures, and terminal boards, coupled with its resistance to thermal, chemical, and environmental stressors, makes it an ideal choice for manufacturers seeking to create high-performance, safe, and long-lasting test instruments. As the demands on electronic test equipment continue to evolve, the adaptability and robustness of 3240 epoxy board ensure its continued relevance in this critical industry.

FAQs

What are the key advantages of using 3240 epoxy board in electronic test equipment?

3240 epoxy board offers excellent mechanical strength, superior electrical insulation, thermal stability, and chemical resistance. It provides a durable foundation for structural supports, enclosures, and terminal boards while ensuring long-term reliability and safety in diverse testing environments.

Can 3240 epoxy board be customized for specific test equipment requirements?

Yes, 3240 epoxy board is highly machinable and can be easily customized to meet specific design requirements. It can be cut, drilled, and shaped precisely, allowing for the creation of intricate components and custom layouts in electronic test equipment.

How does 3240 epoxy board contribute to the safety of electronic test instruments?

3240 epoxy board enhances safety through its high dielectric strength, flame retardancy, and consistent performance across various operating conditions. It effectively isolates high-voltage components, reduces fire risks, and maintains its properties in challenging environments, ensuring safer operation of test equipment.

Choose J&Q for Your 3240 Epoxy Board Needs

At J&Q, we leverage over 20 years of experience in producing and selling insulating sheets to provide top-quality 3240 epoxy board for electronic test equipment manufacturers worldwide. Our extensive knowledge, coupled with our own logistics company, allows us to offer seamless, one-stop service from production to delivery. For more information about our 3240 epoxy board products and how they can enhance your electronic test equipment, please contact us at info@jhd-material.com.
