What Testing Standards verify G10's Electrical Performance?

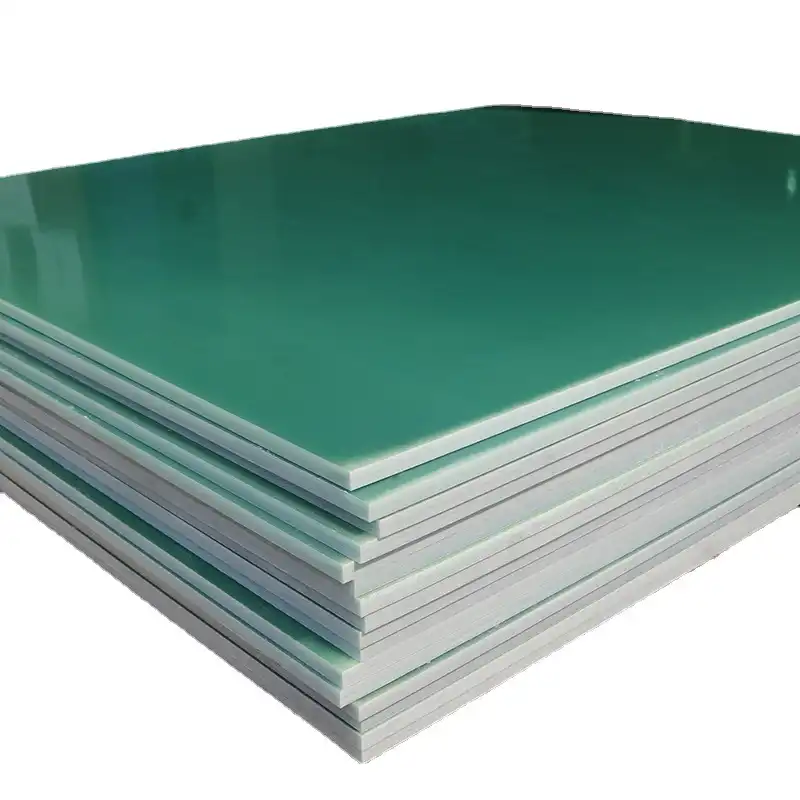

G10 epoxy sheet's electrical performance is verified through rigorous testing standards set by various international organizations. These standards ensure the material's reliability in electrical applications. Key tests include dielectric strength (ASTM D149), volume and surface resistivity (ASTM D257), and arc resistance (ASTM D495). Additionally, UL 94 flammability testing and IEC 60243-1 for electrical breakdown are crucial. These comprehensive evaluations confirm G10's exceptional insulating properties, making it a top choice for electrical components in diverse industries.

Overview Of Dielectric Strength And Insulation Resistance Tests

Dielectric Strength Testing Procedures

Dielectric strength testing is a critical evaluation for G10 epoxy sheets. This test measures the maximum electric field the material can withstand without breaking down. Technicians typically use ASTM D149 standard, applying increasing voltage across the sample until failure occurs. The results, often expressed in volts per mil or kilovolts per millimeter, provide crucial insights into G10's insulating capabilities.

Insulation Resistance Measurement Techniques

Insulation resistance tests assess G10's ability to resist current flow under high voltage conditions. ASTM D257 is the go-to standard for this evaluation. It involves applying a known voltage across the material and measuring the resulting current. The ratio of voltage to current yields the insulation resistance, typically expressed in ohms. High values indicate superior insulating properties, a hallmark of quality G10 epoxy sheets.

Importance Of Volume And Surface Resistivity

Volume and surface resistivity tests, also conducted under ASTM D257, provide additional insights into G10's electrical performance. Volume resistivity measures the material's internal resistance to current flow, while surface resistivity assesses its ability to prevent current flow across its surface. These parameters are crucial for applications where G10 sheets must maintain their insulating properties under various environmental conditions.

Standards For Tracking Resistance And Electrical Breakdown

Comparative Tracking Index (CTI) Evaluation

The Comparative Tracking Index (CTI) is a vital measure of G10's resistance to electrical breakdown along its surface. This test, conducted according to IEC 60112, involves subjecting the material to electrical stress and contamination. Higher CTI values indicate better performance in preventing surface tracking, a common cause of electrical failure in insulating materials. G10 epoxy sheets typically exhibit excellent CTI ratings, contributing to their reliability in high-voltage applications.

Arc Resistance Testing Methods

Arc resistance testing, performed using ASTM D495, evaluates G10 epoxy sheets' ability to withstand high-voltage electrical discharges. This test simulates conditions where electrical arcing may occur, such as in switchgear or circuit breakers. The time taken for the material to form a conductive path during arcing is measured. G10's robust performance in this test underscores its suitability for applications where electrical arcing is a concern.

High Voltage Breakdown Analysis

High voltage breakdown analysis, often conducted using IEC 60243-1 standard, assesses G10's ability to withstand extreme electrical stress. This test involves gradually increasing the voltage across a sample until it fails. The breakdown voltage provides critical information about the material's maximum operating limits. G10 epoxy sheets typically demonstrate high breakdown voltages, reflecting their excellent insulating properties and reliability in high-voltage environments.

Compliance With International Electrical Safety Certifications

UL 94 Flammability Classification

UL 94, the Standard for Safety of Flammability of Plastic Materials for Parts in Devices and Appliances, is a crucial certification for G10 epoxy sheets. This test evaluates the material's reaction to small-scale flame sources. G10 typically achieves high ratings in this test, often meeting the V-0 or V-1 classifications. These ratings indicate excellent flame-retardant properties, enhancing the safety profile of G10 in electrical applications where fire resistance is paramount.

IEC 60085 Thermal Classification

The International Electrotechnical Commission's IEC 60085 standard provides a thermal classification system for electrical insulating materials. This standard is vital for assessing G10 epoxy sheets' performance under various temperature conditions. G10 epoxy sheets often achieve high thermal classes, typically Class F (155°C) or H (180°C). This classification confirms G10 epoxy sheets' ability to maintain its electrical and mechanical properties at elevated temperatures, crucial for many industrial applications.

IEEE 1127 Dielectric Test Standards

IEEE 1127, the Guide for the Design, Construction, and Operation of Electric Power Substations for Community Acceptance and Environmental Compatibility, includes important dielectric test standards. While not specific to G10, these standards provide a framework for evaluating insulating materials in power systems. G10's compliance with these standards further validates its suitability for high-voltage applications, particularly in power distribution and transmission systems.

Conclusion

The rigorous testing standards applied to G10 epoxy sheets ensure their reliable performance in electrical applications. From dielectric strength and insulation resistance to tracking resistance and flammability, G10 consistently demonstrates superior properties. These comprehensive evaluations, conducted by reputable international organizations, provide users with confidence in G10's electrical performance. As technology advances, these standards continue to evolve, pushing the boundaries of material capabilities and ensuring G10 remains at the forefront of electrical insulation solutions.

FAQs

What makes G10 epoxy sheet an ideal choice for electrical applications?

G10 epoxy sheet's excellent dielectric properties, high mechanical strength, and thermal stability make it ideal for electrical applications. It offers superior insulation, resists tracking, and maintains its properties under various environmental conditions.

How does G10 perform in high-temperature environments?

G10 performs exceptionally well in high-temperature environments, typically maintaining its properties up to 155°C. Some specialized grades can even withstand higher temperatures.

Is G10 suitable for outdoor electrical applications?

While G10 has good resistance to moisture and chemicals, prolonged exposure to UV light can affect its performance. For outdoor applications, additional protective measures may be necessary.

High-Quality G10 Epoxy Sheet for Sale from J&Q

At J&Q, we leverage over 20 years of experience in producing and selling insulating sheets to provide premium G10 epoxy sheets for a wide range of industrial applications. Our G10 epoxy sheet for sale meets and exceeds industry standards for dielectric strength, insulation resistance, and thermal performance. With our expertise, global reach, and in-house logistics capabilities, we ensure reliable delivery and consistent quality. For more information about our testing processes or products, contact us at info@jhd-material.com.

References

ASTM International. (2020). "ASTM D149 - Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Commercial Power Frequencies."

International Electrotechnical Commission. (2018). "IEC 60112 - Method for the determination of the proof and the comparative tracking indices of solid insulating materials."

Underwriters Laboratories. (2019). "UL 94 - Standard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances."

IEEE. (2017). "IEEE 1127 - Guide for the Design, Construction, and Operation of Electric Power Substations for Community Acceptance and Environmental Compatibility."

ASTM International. (2021). "ASTM D257 - Standard Test Methods for DC Resistance or Conductance of Insulating Materials."

International Electrotechnical Commission. (2019). "IEC 60243-1 - Electrical strength of insulating materials - Test methods - Part 1: Tests at power frequencies."
