Which Machining Methods Are Best Suited for FR4 Modification?
CNC Routing for Precise FR4 Sheet Shaping
CNC routing stands out as a premier method for FR4 sheet customization. This computer-controlled technique enables highly accurate cuts and shapes, crucial for creating intricate PCB layouts. The precision of CNC routing allows for tight tolerances, essential in producing complex electronic components. Moreover, its repeatability ensures consistent quality across large production runs, making it ideal for high-volume manufacturing of customized FR4 sheets.
Water Jet Cutting: A Cool Alternative for FR4 Modification
Water jet cutting offers a unique advantage in FR4 sheet processing. By using high-pressure water, often mixed with abrasive particles, this method cuts through FR4 without generating heat. This thermal-free approach prevents warping or delamination of the material, preserving its crucial electrical properties. Water jet cutting excels in creating complex shapes and is particularly useful for thicker FR4 sheets where other methods might struggle.
Laser Cutting for High-Precision FR4 Customization
Laser cutting technology provides unparalleled precision in FR4 sheet modification. It allows for extremely fine cuts and intricate designs, essential for miniaturized electronic components. The non-contact nature of laser cutting minimizes material stress and produces clean edges, reducing the need for post-processing. This method is especially valuable for prototyping and small-scale production of highly specialized FR4 components.
Drilling, Milling, and Cutting Processes for Precise FR4 Shaping
High-Speed Drilling Techniques for FR4 Perforation
High-speed drilling plays a crucial role in FR4 sheet customization, particularly in creating vias and mounting holes for PCBs. Advanced drilling systems equipped with carbide or diamond-tipped bits ensure clean, accurate holes even in multi-layer FR4 boards. The precision of these drills is vital for maintaining the integrity of the FR4's electrical properties and ensuring proper component alignment in complex electronic assemblies.
Milling Processes for Crafting FR4 Sheet Profiles
Milling offers versatility in shaping FR4 sheets, allowing for the creation of complex three-dimensional profiles. This subtractive manufacturing process can produce features like pockets, channels, and stepped surfaces on FR4 sheets. Advanced milling techniques, such as high-speed milling, enable the production of intricate designs while maintaining the material's structural integrity, crucial for specialized electronic enclosures and custom insulating components.
Precision Cutting Methods for FR4 Sheet Sizing
Precision cutting techniques are essential for sizing FR4 sheets to exact specifications. Methods like shearing and die-cutting provide clean, accurate cuts for large-scale production. For more specialized applications, technologies such as ultrasonic cutting offer the advantage of minimal material deformation and reduced tool wear. These cutting processes ensure dimensional accuracy, critical for maintaining the electrical and mechanical properties of FR4 in final products.
Surface Treatments and Finishing Techniques for Enhanced FR4 Performance
Chemical Etching for Intricate FR4 Surface Patterns
Chemical etching is a sophisticated technique used to create complex surface patterns on FR4 sheets. This process involves selectively removing material using chemical agents, allowing for the production of extremely fine features and circuitry. The precision of chemical etching makes it invaluable for manufacturing high-density interconnect (HDI) boards and flexible circuits. It offers the advantage of creating uniform etch depths across large surface areas, crucial for maintaining consistent electrical properties in FR4-based electronic components.
Surface Plating to Enhance FR4 Conductivity
Surface plating significantly enhances the functionality of FR4 sheets in electronic applications. Techniques such as electroless copper plating and electrolytic gold plating improve conductivity and corrosion resistance. These processes are essential for creating reliable electrical connections and protecting exposed FR4 surfaces. Advanced plating methods, including selective plating, allow for customized conductivity patterns, enabling the production of high-performance, multi-layer PCBs with optimized signal integrity.
Coating Applications for FR4 Environmental Protection
Protective coatings play a vital role in extending the lifespan and reliability of FR4-based products. Conformal coatings, such as acrylic or silicone-based formulations, provide excellent protection against moisture, dust, and chemical contaminants. For more demanding environments, specialized coatings like parylene offer superior barrier properties. These coating techniques not only enhance the durability of FR4 sheets but also maintain their electrical characteristics under challenging operational conditions, crucial for applications in aerospace, automotive, and industrial electronics.
Conclusion
The diverse array of processing techniques available for customizing FR4 sheets underscores their versatility in electronic manufacturing. From precision machining methods like CNC routing and laser cutting to advanced surface treatments such as chemical etching and protective coatings, each technique offers unique benefits for tailoring FR4 to specific applications. The choice of method depends on factors including design complexity, production volume, and performance requirements. By leveraging these cutting-edge customization techniques, manufacturers can optimize FR4 sheets to meet the ever-evolving demands of modern electronics, ensuring superior performance, reliability, and innovation in their products.
FAQs
What is FR4 sheet and why is it important in electronics?

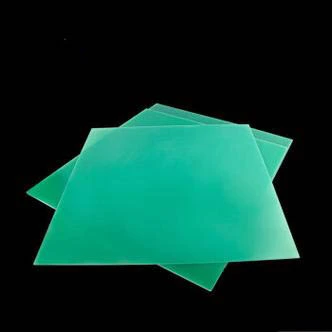

FR4 sheet is a versatile epoxy material widely used in the electronics industry, particularly for printed circuit boards (PCBs). It's crucial due to its excellent combination of mechanical strength, electrical insulation properties, and affordability. FR4 sheets provide the backbone for many electronic devices, offering reliability and performance in various operational conditions.
Can FR4 sheets be customized for specific applications?
Yes, FR4 sheets can be extensively customized using various processing techniques such as CNC routing, laser cutting, drilling, milling, and surface treatments. These methods allow for precise shaping, intricate designs, and enhanced performance characteristics tailored to specific electronic applications.
Expert FR4 Sheet Customization Solutions from J&Q
At J&Q, we specialize in providing top-quality FR4 sheet customization solutions. As a trusted FR4 sheet manufacturer with over 20 years of experience in insulating sheet production and a decade in international trade, we offer unparalleled expertise in FR4 processing. Our state-of-the-art facilities and skilled technicians ensure precision in every customization technique, from CNC routing to advanced surface treatments. For comprehensive FR4 sheet solutions tailored to your specific needs, contact us at info@jhd-material.com.
