Composition and Structure of G10 Sheet
Raw Materials Used in G10 Manufacturing

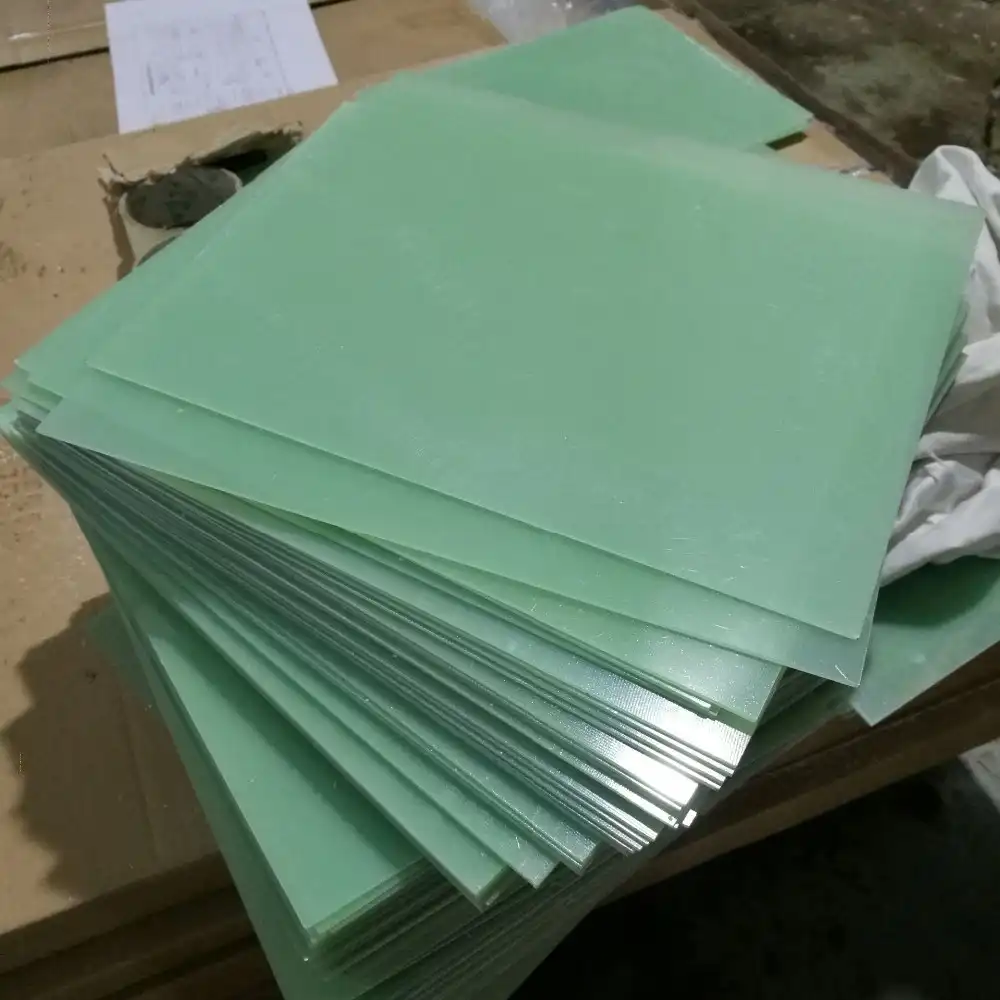

G10 sheet is a composite material crafted from carefully selected raw materials. The primary components include high-quality glass fibers and epoxy resin. The glass fibers, typically E-glass, provide strength and dimensional stability to the material. Epoxy resin, known for its excellent adhesive properties and chemical resistance, serves as the matrix that binds the glass fibers together. This combination results in a material with superior mechanical and electrical properties.
Manufacturing Process of G10 Sheet
The manufacturing process of G10 sheet involves several intricate steps. Initially, layers of glass fabric are impregnated with epoxy resin. These layers are then stacked in a specific orientation to achieve the desired thickness and properties. The stacked layers undergo a controlled curing process under high pressure and temperature. This process, known as compression molding, ensures the proper bonding of the glass fibers and epoxy resin, resulting in a dense, void-free material with uniform properties throughout its thickness.
Microstructure and Its Impact on Electrical Properties
The microstructure of G10 sheet plays a crucial role in its electrical insulation properties. The glass fibers, uniformly distributed within the epoxy matrix, create a complex network that impedes the flow of electrical current. The epoxy resin fills the spaces between the fibers, eliminating air pockets that could potentially compromise the insulation properties. This tightly packed structure results in a high dielectric strength, making G10 sheet an excellent electrical insulator. The microstructure also contributes to the material's low moisture absorption, further enhancing its insulating capabilities.
Electrical Properties of G10 Sheet
Dielectric Strength and Its Significance
One of the most critical electrical properties of G10 sheet is its high dielectric strength. Dielectric strength, measured in volts per unit thickness, represents the maximum electric field a material can withstand without breaking down. G10 sheet boasts an impressive dielectric strength, typically ranging from 500 to 700 volts per mil (0.001 inch). This high dielectric strength allows G10 to effectively prevent electrical breakdown even under intense electric fields, making it suitable for high-voltage applications. The material's ability to maintain its dielectric properties over time and under various environmental conditions further enhances its reliability as an electrical insulator.
Volume and Surface Resistivity
G10 sheet exhibits excellent volume and surface resistivity, contributing to its superior insulating properties. Volume resistivity, which measures the material's resistance to current flow through its bulk, is typically in the range of 10^15 to 10^16 ohm-cm for G10. This high volume resistivity ensures minimal current leakage through the material. Surface resistivity, measuring the resistance to current flow across the material's surface, is equally impressive for G10 sheet. These properties are crucial in preventing unwanted current paths and maintaining the integrity of electrical systems, especially in high-humidity environments or when exposed to contaminants.
Arc Resistance and Tracking Resistance
Arc resistance and tracking resistance are two additional properties that make G10 sheet an exceptional electrical insulator. Arc resistance refers to the material's ability to withstand electrical arcing without degradation. G10 demonstrates high arc resistance, preventing the formation of conductive paths due to surface carbonization. Tracking resistance, on the other hand, measures the material's ability to resist the formation of conductive paths on its surface when exposed to electrical stress and contamination. G10's excellent tracking resistance ensures long-term reliability in harsh environments where moisture and contaminants may be present, maintaining its insulating properties over extended periods.
Mechanical and Thermal Properties Enhancing Insulation
Mechanical Strength and Dimensional Stability
G10 sheet's mechanical properties significantly contribute to its effectiveness as an electrical insulator. The material exhibits high tensile, compressive, and flexural strength, allowing it to maintain its structural integrity under mechanical stress. This strength is crucial in applications where the insulating material may be subjected to physical forces. Furthermore, G10 sheet demonstrates excellent dimensional stability across a wide range of temperatures and humidity levels. This stability ensures that the material maintains its insulating properties and doesn't warp or deform, which could potentially compromise its electrical performance. The combination of strength and stability makes G10 sheet a reliable choice for long-term insulation applications in diverse environments.
Thermal Properties and Their Impact on Insulation
The thermal properties of G10 sheet play a vital role in its insulation performance. G10 has a relatively low thermal conductivity, which helps prevent heat transfer that could potentially affect the electrical properties of the material or the components it's insulating. The material also exhibits a high heat deflection temperature, typically around 140°C (284°F), allowing it to maintain its shape and insulating properties even at elevated temperatures. Additionally, G10 sheet has a low coefficient of thermal expansion, ensuring minimal dimensional changes with temperature fluctuations. These thermal characteristics contribute to the material's reliability as an electrical insulator across a wide temperature range, making it suitable for applications in various thermal environments.
Chemical Resistance and Environmental Durability
G10 sheet's chemical resistance and environmental durability further enhance its suitability as an electrical insulator. The material demonstrates excellent resistance to a wide range of chemicals, including oils, solvents, and mild acids. This chemical resistance prevents degradation of the material's electrical properties when exposed to potentially corrosive substances. G10 also exhibits low moisture absorption, typically less than 0.1% by weight, which helps maintain its insulating properties in humid environments. The material's resistance to fungal growth and its ability to withstand outdoor exposure without significant degradation contribute to its long-term reliability. These properties ensure that G10 sheet maintains its insulating capabilities even in challenging environmental conditions, making it a versatile choice for various industrial and outdoor applications.
Conclusion
G10 sheet's exceptional electrical insulation properties stem from its unique composition, structure, and a combination of electrical, mechanical, and thermal characteristics. Its high dielectric strength, excellent resistivity, and superior arc and tracking resistance make it an outstanding electrical insulator. The material's mechanical strength, dimensional stability, thermal properties, and environmental durability further enhance its insulating capabilities. These attributes, coupled with its versatility and reliability, position G10 sheet as a premier choice for electrical insulation across various industries and applications.
