How Does 3240 Epoxy Sheet Differ from Standard G10 Sheets?
Composition and Manufacturing Process

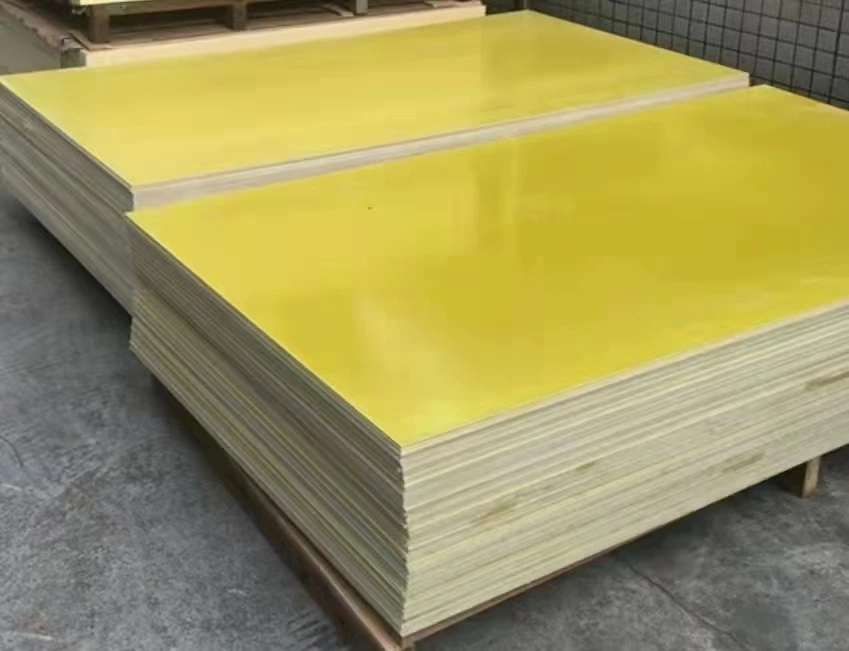

3240 epoxy sheet and standard G10 sheets share similarities in their base materials, but key differences set them apart. While both utilize fiberglass reinforcement and epoxy resin, 3240 epoxy sheet incorporates additional phenolic resin, enhancing its overall performance. The manufacturing process for 3240 epoxy sheet involves a more rigorous heat and pressure treatment, resulting in a denser, more tightly bonded material structure.
Mechanical Properties Comparison
When comparing mechanical properties, 3240 epoxy sheet typically exhibits superior strength and durability. Its unique composition allows for higher flexural and tensile strength compared to standard G10 sheets. This enhanced mechanical performance makes 3240 epoxy sheet more suitable for applications requiring extreme reliability under high stress conditions.
Electrical and Thermal Characteristics
In terms of electrical properties, 3240 epoxy sheet often outperforms standard G10 sheets, particularly in high-voltage and high-humidity environments. Its superior moisture resistance and stable dielectric performance make it an excellent choice for challenging electrical applications. Thermally, 3240 epoxy sheet generally demonstrates better heat resistance and dimensional stability at elevated temperatures, expanding its range of potential applications beyond that of standard G10 sheets.
Key Mechanical, Thermal, and Electrical Properties of 3240 Epoxy Sheet
Mechanical Strength and Durability
3240 epoxy sheet boasts impressive mechanical properties that contribute to its widespread industrial use. Its high tensile strength, typically ranging from 300 to 400 MPa, allows it to withstand significant loads without failure. The material's exceptional flexural strength, often exceeding 400 MPa, ensures resistance to bending and deformation under stress. Additionally, 3240 epoxy sheet exhibits remarkable compressive strength, usually above 350 MPa, making it suitable for applications involving high pressure or impact forces.
Thermal Resistance and Stability
The thermal properties of 3240 epoxy sheet are equally impressive. With a heat deflection temperature often exceeding 140°C, it maintains its structural integrity under elevated temperatures. The material's low coefficient of thermal expansion, typically around 11-14 × 10^-6/°C in the x-y plane, ensures dimensional stability across a wide temperature range. This thermal stability is crucial for applications where precise tolerances must be maintained despite temperature fluctuations.
Electrical Insulation Capabilities
3240 epoxy sheet excels in electrical applications due to its superior insulating properties. Its dielectric strength, often surpassing 20 kV/mm, provides excellent protection against electrical breakdown. The material's low dielectric constant, usually between 4.5 and 5.5, minimizes signal loss in high-frequency applications. Moreover, its volume resistivity, typically exceeding 10^14 ohm-cm, ensures minimal current leakage, making it an ideal choice for high-voltage insulation systems.
Industrial Applications and Advantages of Using 3240 Epoxy Sheet
Electrical and Electronics Industry Usage
In the electrical and electronics sector, 3240 epoxy sheet finds extensive use in various applications. It serves as an excellent insulating material in transformers, switchgear, and circuit breakers, where its high dielectric strength and moisture resistance are crucial. The material is also widely used in the manufacture of printed circuit boards (PCBs), particularly for high-frequency and high-reliability applications. Its stability in humid environments makes it ideal for outdoor electrical equipment, ensuring consistent performance in challenging weather conditions.
Aerospace and Automotive Applications
The aerospace and automotive industries leverage the unique properties of 3240 epoxy sheet for numerous applications. In aircraft construction, it is used for structural components, interior panels, and insulation systems, where its lightweight nature and high strength-to-weight ratio are particularly advantageous. Automotive manufacturers utilize 3240 epoxy sheet in electrical systems, underhood components, and structural reinforcements, benefiting from its thermal stability and mechanical strength. The material's resistance to chemicals and oils also makes it suitable for use in engine compartments and fuel systems.
Industrial Machinery and Equipment
3240 epoxy sheet plays a vital role in industrial machinery and equipment manufacturing. Its high wear resistance and mechanical strength make it an excellent choice for bushings, bearings, and gears in heavy machinery. The material is also used in the production of industrial rollers, conveyor components, and cutting tools, where its durability and dimensional stability under varying conditions are essential. In the renewable energy sector, 3240 epoxy sheet is utilized in wind turbine components and solar panel structures, contributing to the longevity and efficiency of these sustainable energy systems.
Conclusion
3240 epoxy sheet stands out as a versatile and high-performance material, offering a unique combination of mechanical strength, thermal stability, and electrical insulation properties. Its superior characteristics compared to standard G10 sheets make it an excellent choice for demanding applications across various industries. From electrical insulation to aerospace components, 3240 epoxy sheet continues to prove its worth in challenging environments, providing reliability, durability, and efficiency. As industries evolve and demand ever-higher performance materials, 3240 epoxy sheet remains at the forefront, meeting and exceeding the stringent requirements of modern engineering and manufacturing.
