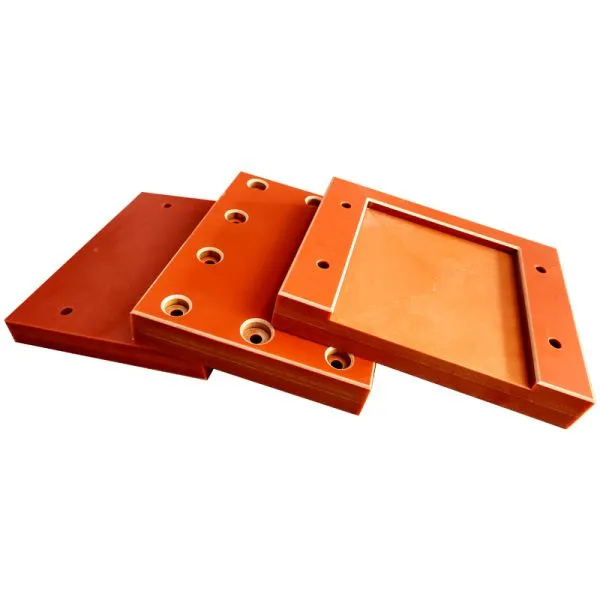

Properties and Characteristics of Bakelite Sheets
Composition and Manufacturing Process of Bakelite
Bakelite sheets are primarily made from phenol formaldehyde resin, a thermosetting polymer formed through a condensation reaction between phenol and formaldehyde. This reaction creates a highly cross-linked, three-dimensional network, which imparts Bakelite with its characteristic hardness and heat resistance. During manufacturing, the resin mixture is subjected to controlled heat and pressure, which cures the material and molds it into sheets of various thicknesses. The process ensures consistent density and uniformity, making Bakelite sheets reliable for electrical and mechanical applications.
Thermal and Electrical Properties of Bakelite
Bakelite sheets exhibit excellent thermal resistance, capable of withstanding temperatures up to around 300°C without losing structural integrity. This thermal stability makes them ideal for use in environments with fluctuating or high heat. Electrically, Bakelite is an outstanding insulator due to its low electrical conductivity and high dielectric strength, which prevent current leakage and enhance safety. These properties allow Bakelite sheets to be widely used in electrical insulation, circuit boards, and components requiring reliable thermal and electrical performance.
Mechanical Strength and Durability of Bakelite
Mechanically, Bakelite sheets offer significant strength, especially in compression, and demonstrate good resistance to impacts and wear. They resist scratches, abrasions, and many chemical agents, which prolongs their service life in demanding industrial environments. However, the material tends to be brittle and can crack or shatter under severe mechanical stress or sudden impacts. Therefore, while Bakelite sheets are durable for many applications, careful consideration is needed in scenarios where flexibility or high impact resistance is critical.
Features and Applications of 3240 Epoxy Board
Composition and Manufacturing of 3240 Epoxy Board
The 3240 epoxy board is a high-performance composite material made by reinforcing epoxy resin with woven glass cloth. During manufacturing, multiple layers of glass cloth are thoroughly impregnated with epoxy resin and then subjected to controlled heat and pressure. This curing process bonds the layers into a rigid laminate that exhibits outstanding mechanical strength and electrical insulation. The precise control of temperature and pressure during production ensures consistent quality and uniform thickness, making 3240 epoxy board ideal for demanding electrical and structural applications.
Mechanical and Thermal Properties of 3240 Epoxy Board
3240 epoxy board provides excellent mechanical properties, including superior flexural strength and rigidity compared to traditional materials like Bakelite. It demonstrates excellent dimensional stability, maintaining its shape and size even under mechanical stress or temperature changes. The board operates reliably within a broad temperature range, typically from -65°C to 130°C, thanks to the reinforcement of woven glass cloth. This enhances its resistance to warping, cracking, and deformation, ensuring durability in challenging environmental conditions.
Electrical Insulation and Moisture Resistance of 3240 Epoxy Board
While the electrical insulation performance of 3240 epoxy board may not fully match that of Bakelite at extremely high temperatures, it remains highly effective for most practical applications. A key advantage of the 3240 epoxy board is its excellent moisture resistance, which protects it from degradation in humid or wet environments. This characteristic makes it especially suitable for electrical devices and components exposed to moisture, ensuring long-term reliability and performance even in challenging conditions.
Comparative Analysis: Bakelite Sheets vs. 3240 Epoxy Board
Performance in High-Temperature Environments
Bakelite sheets are well-known for their exceptional ability to withstand very high temperatures without significant loss of mechanical or electrical properties. Typically, they can tolerate heat up to 300°C, making them ideal for applications exposed to extreme heat, such as automotive engine parts or industrial machinery components. In contrast, 3240 epoxy board generally has a lower maximum operating temperature, around 130°C, which limits its use in such harsh thermal environments, giving Bakelite a clear advantage for high-temperature applications.
Machinability and Fabrication Considerations
When it comes to fabrication, 3240 epoxy board excels due to its superior machinability. Unlike Bakelite sheets, which are brittle and prone to chipping or cracking during cutting or drilling, 3240 epoxy board can be more easily shaped into complex forms without compromising its structural integrity. This advantage allows manufacturers to create intricate and precise components, making the epoxy board more suitable for applications requiring detailed machining and customization, thereby enhancing design flexibility.
Cost-effectiveness and Long-term Durability
While Bakelite sheets often have a lower upfront cost, their brittleness and lower moisture resistance may lead to higher maintenance or replacement costs over time. Conversely, 3240 epoxy board, though potentially more expensive initially, offers better long-term durability due to its resistance to moisture, mechanical stress, and environmental degradation. This often results in lower lifecycle costs, making 3240 epoxy board a more cost-effective choice for applications where longevity and reduced maintenance are critical considerations.
Conclusion
The choice between Bakelite sheets and 3240 epoxy board ultimately depends on the specific requirements of the application. Bakelite excels in high-temperature environments and offers superior electrical insulation, making it ideal for certain electrical and automotive applications. On the other hand, 3240 epoxy board provides better mechanical strength, dimensional stability, and moisture resistance, making it suitable for a wide range of industrial and electronic applications. By understanding the unique properties and characteristics of each material, engineers and manufacturers can make informed decisions to optimize their products' performance and longevity.
