What Do the Different FR4 Electrical Grades Mean?

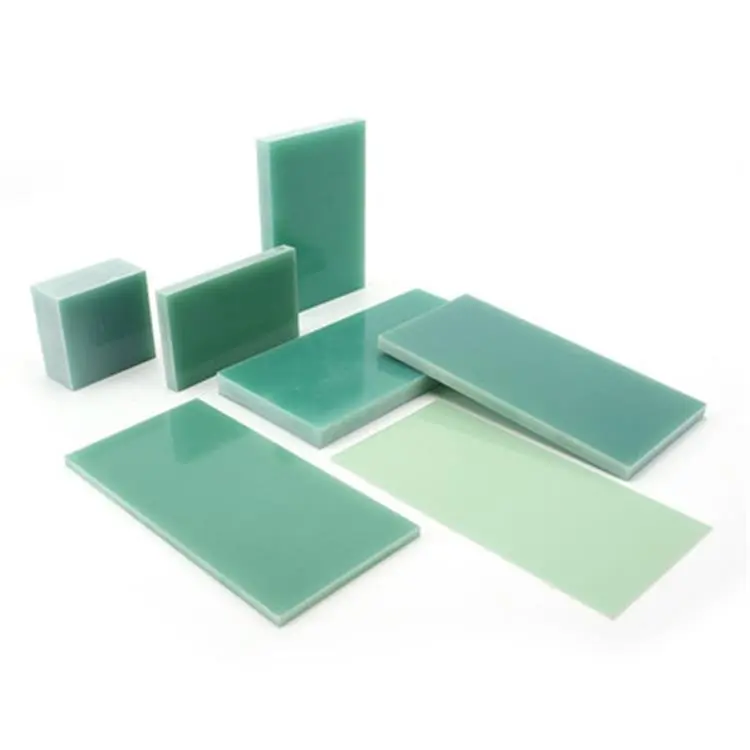

FR4 epoxy sheets are classified into various electrical grades, each denoting specific properties and performance characteristics. These grades are essential in determining the suitability of the material for different applications in the electronics industry.
Standard FR4 Grades
The most common FR4 grades include G10, G11, and FR4 itself, each offering different properties tailored to general use. G10 is considered the base grade, valued for its solid mechanical strength and reliable electrical insulation. G11 builds upon this by providing improved thermal resistance, making it suitable for higher-temperature applications. FR4 combines the core advantages of both G10 and G11, with the added benefit of flame retardancy, making it the most widely used and versatile material for general PCB applications.
High-Performance Grades
High-performance FR4 epoxy sheet grades such as FR5 and G30 are designed for more demanding environments. These advanced materials offer exceptional thermal stability, maintaining mechanical and electrical integrity under elevated temperatures. Their superior dielectric properties also make them ideal for use in high-frequency circuits and power electronics. These grades are often selected for aerospace, automotive, and telecommunications applications where standard FR4 might fail to meet performance expectations. The enhanced characteristics justify their use despite the higher material and processing costs.
Specialized Grades
Specialized FR4 grades are tailored to meet specific industry and environmental requirements. Halogen-free FR4 variants are developed to comply with stringent environmental and fire safety regulations, making them suitable for applications requiring low smoke and toxicity. Meanwhile, low-loss FR4 grades are optimized for high-speed digital and RF circuit designs, where signal integrity is crucial. These specialized formulations provide targeted performance enhancements, allowing engineers to select the most appropriate material based on the unique challenges of their design or industry sector.
Dielectric Strength and Electrical Insulation Performance
The dielectric strength and electrical insulation performance of FR4 epoxy sheets are critical factors in their application within the electronics industry. These properties determine how effectively the material can prevent current flow between conductors.
Measuring Dielectric Strength
Dielectric strength is a critical property that quantifies a material’s ability to resist electrical breakdown. It is typically measured in volts per mil or volts per millimeter, indicating the voltage a material can withstand before failing. Higher dielectric strength values reflect better insulation performance. FR4 materials usually fall within the range of 800 to 1000 volts per mil, making them suitable for a wide variety of electrical and electronic applications where robust insulation is necessary to ensure safe and reliable operation.
Factors Affecting Insulation Performance
Insulation performance of FR4 sheets can be influenced by several external and operational factors. Environmental conditions like elevated temperatures and high humidity levels may reduce dielectric strength over time. Likewise, the frequency of the applied voltage plays a significant role, as performance may degrade at higher frequencies. Higher-grade FR4 variants are engineered to maintain consistent insulation properties despite such variations. Therefore, understanding how these factors impact insulation helps in selecting the right FR4 material for stable, long-term functionality.
Importance in PCB Design
Dielectric strength and overall insulation performance are vital considerations in PCB design, especially for high-voltage circuits or applications requiring signal integrity. Choosing a material with sufficient dielectric strength ensures that electrical isolation is maintained between conductive layers and components, minimizing the risk of arcing, short circuits, or signal loss. By selecting the appropriate FR4 grade based on expected voltage levels and environmental stresses, designers can significantly enhance the reliability, safety, and longevity of the final electronic product.
Selecting the Right FR4 Grade for Your PCB Design
Choosing the appropriate FR4 epoxy sheet grade for your PCB design is a critical decision that can significantly impact the performance and reliability of your electronic device. Several factors must be considered to ensure the optimal selection.
Application Requirements
Consider the specific requirements of your application when selecting FR4 material. For high-frequency circuits such as RF modules or 5G devices, low-loss FR4 grades are essential to minimize signal attenuation and ensure optimal performance. In contrast, applications involving sustained heat exposure, such as power supplies or industrial controllers, may benefit more from thermally enhanced FR4 variants. Understanding the functional and performance expectations of your PCB helps in choosing the right FR4 type for long-term reliability and efficiency.
Environmental Factors
Assessing the environmental conditions your PCB will encounter is crucial for material selection. If the device will be exposed to high humidity, frequent temperature fluctuations, or aggressive chemicals, the FR4 used must provide strong resistance to moisture ingress, thermal cycling, and corrosion. These factors significantly impact the board’s lifespan and performance. A careful evaluation ensures that the FR4 material can withstand harsh environments without degradation, delamination, or performance loss over time.
Cost-Benefit Analysis
While premium FR4 grades offer enhanced electrical, thermal, or mechanical properties, they typically come at a higher price point. It's important to weigh these benefits against your project's budget and performance requirements. In applications where advanced features are not critical, a standard FR4 variant might be more cost-effective. Conducting a detailed cost-benefit analysis helps determine whether the improved characteristics of higher-grade FR4 materials provide sufficient value to justify their increased cost in your specific context.
Conclusion
Understanding the electrical grades of FR4 epoxy sheets is paramount for anyone involved in PCB design and manufacturing. These grades offer a spectrum of properties that cater to diverse application needs, from standard consumer electronics to high-performance aerospace systems. By carefully considering factors such as dielectric strength, insulation performance, and specific application requirements, engineers can make informed decisions that optimize their PCB designs. As technology continues to advance, staying abreast of developments in FR4 materials will remain crucial for creating innovative and reliable electronic products.
