Composition and Manufacturing of Phenolic Cotton Sheets
Raw Materials and Their Properties
Phenolic cotton sheets are crafted from a carefully selected blend of materials. The primary components include high-quality cotton fabric and phenolic resin. The cotton fabric serves as a robust base, providing strength and flexibility to the final product. Phenolic resin, derived from phenol and formaldehyde, imparts excellent electrical insulation properties and heat resistance. The synergy between these materials results in a composite that excels in challenging electrical environments.
Manufacturing Process
The production of phenolic cotton sheets, also known as phenolic cotton cloth board, involves a meticulous process. Initially, the cotton fabric is impregnated with phenolic resin using specialized equipment. This impregnation ensures uniform distribution of the resin throughout the fabric. Subsequently, the impregnated sheets undergo a controlled heating and pressing process. This crucial step allows the resin to cure and bond with the cotton fibers, creating a homogeneous and durable material. The precise control of temperature, pressure, and curing time is essential for achieving the desired properties in the final product.
Quality Control Measures
Maintaining consistent quality in phenolic cotton sheets is paramount for their reliability in electrical applications. Manufacturers implement rigorous quality control measures throughout the production process. These measures include testing the raw materials for purity and consistency, monitoring the impregnation process for uniform resin distribution, and conducting thorough inspections of the cured sheets. Advanced testing equipment is utilized to verify the electrical, mechanical, and thermal properties of each batch, ensuring that the sheets meet or exceed industry standards.
Applications and Benefits in Electrical Systems
Insulation in High-Voltage Equipment
Phenolic cotton sheets excel in high-voltage insulation applications. Their superior dielectric strength makes them ideal for use in transformers, switchgear, and other high-voltage apparatus. These sheets effectively prevent electrical breakdown and arcing, even under extreme conditions. The inherent stability of phenolic cotton sheets ensures that their insulating properties remain consistent over time, contributing to the longevity and reliability of electrical equipment.
Thermal Management Solutions
The exceptional heat resistance of phenolic cotton sheets makes them valuable in thermal management applications. In electrical systems where heat dissipation is crucial, these sheets serve as effective barriers, preventing thermal damage to sensitive components. Their ability to withstand high temperatures without degradation or outgassing ensures the integrity of electrical systems in demanding environments, such as industrial machinery and power distribution equipment.
Structural Support in Electrical Assemblies

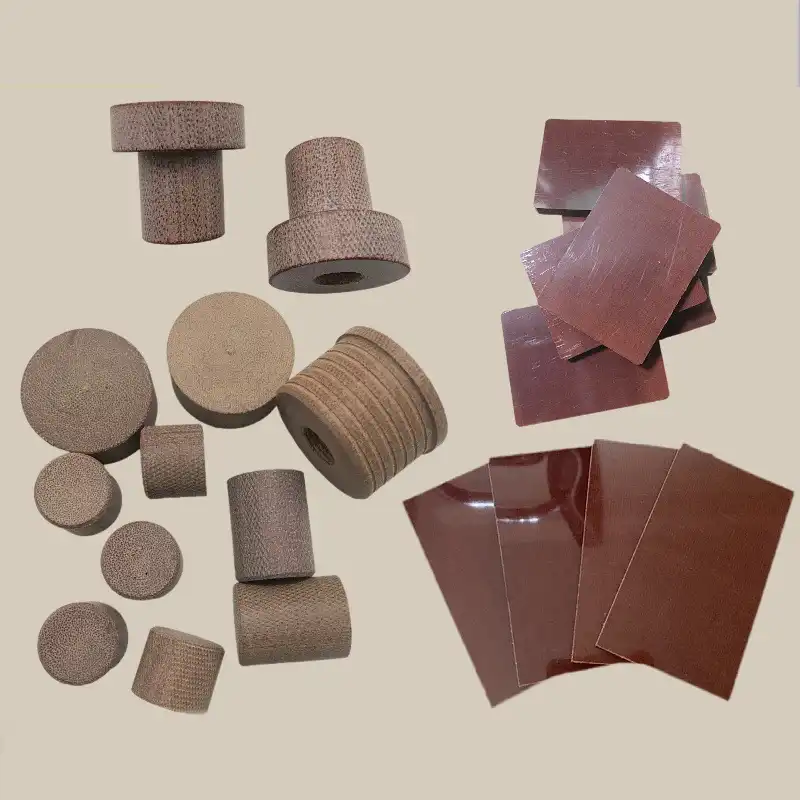

Beyond their insulating properties, phenolic cotton sheets provide structural support in various electrical assemblies. Their mechanical strength and dimensional stability make them suitable for fabricating components like terminal boards, busbar supports, and insulating spacers. The versatility of these sheets allows for easy machining and fabrication, enabling custom solutions for specific electrical design requirements. This multifunctionality reduces the need for multiple materials, simplifying assembly processes and enhancing overall system reliability.
Selection Criteria and Best Practices
Understanding Grade Classifications
Phenolic cotton sheets, also known as phenolic cotton cloth board, are available in various grades, each tailored to specific applications. Understanding these classifications is crucial for selecting the appropriate material for a given electrical system. Common grades include NEMA X, XX, XXX, and C, each with distinct properties in terms of mechanical strength, electrical resistance, and heat tolerance. Electrical professionals should familiarize themselves with these grades and their corresponding standards to ensure optimal performance and compliance with industry regulations.
Evaluating Electrical and Mechanical Properties
When selecting phenolic cotton sheets, it's essential to evaluate both their electrical and mechanical properties. Key electrical parameters include dielectric strength, volume resistivity, and dissipation factor. Mechanical properties such as flexural strength, compressive strength, and impact resistance are equally important, particularly in applications where the material serves a dual purpose of insulation and structural support. Consulting detailed technical datasheets and working closely with manufacturers can help in making informed decisions based on specific project requirements.
Installation and Maintenance Considerations
Proper installation and maintenance of phenolic cotton sheets are crucial for maximizing their performance and lifespan. When installing these sheets, it's important to consider factors such as thermal expansion, moisture resistance, and compatibility with adjacent materials. Proper cutting, drilling, and fastening techniques should be employed to prevent delamination or cracking. Regular inspection and maintenance routines should be established to monitor the condition of the sheets over time, ensuring they continue to provide reliable insulation and support throughout the lifespan of the electrical system.
Conclusion
Phenolic cotton sheets are indispensable components in modern electrical systems, offering a unique combination of electrical insulation, thermal resistance, and mechanical strength. By understanding their composition, applications, and selection criteria, electrical professionals can harness the full potential of these versatile materials. As the electrical industry continues to evolve, phenolic cotton sheets remain at the forefront of insulation technology, enabling the development of more efficient, reliable, and compact electrical systems. Their continued importance underscores the need for ongoing research and innovation in this field.
