What Specifications Define NEMA CE Sheet Quality?
Composition and Manufacturing Process

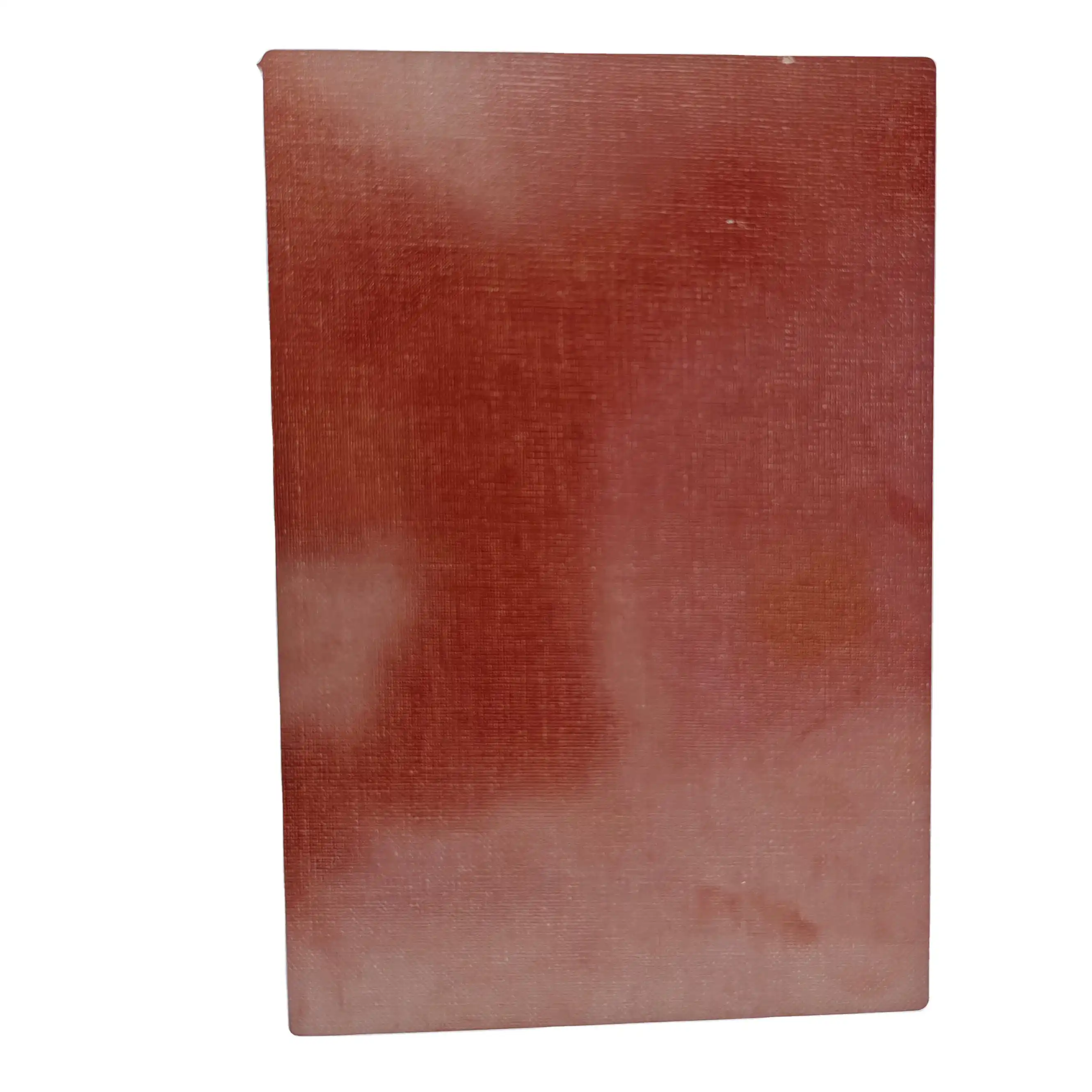

NEMA CE sheets are produced from multiple layers of cotton fabric impregnated with phenolic resin, creating a strong and versatile composite material. During manufacturing, the layers are carefully stacked and subjected to heat and pressure in a controlled thermoset curing process. This method ensures thorough resin penetration and uniform bonding between fabric layers, resulting in a sheet with high mechanical integrity, dimensional stability, and consistent electrical insulation properties. Such meticulous manufacturing guarantees that each NEMA CE sheet meets the rigorous standards required for industrial applications.
NEMA Grade Classifications
The NEMA LI 1 standard provides a framework for classifying insulating laminates based on performance criteria, ensuring consistent quality and suitability for specific applications. CE grade sheets belong to the cotton fabric-reinforced phenolic laminate category, distinguished by a combination of mechanical durability and reliable electrical insulation. Within this classification, CE sheets are designed to balance strength, thermal resistance, and machinability, making them versatile for general-purpose industrial, electrical, and mechanical applications. This standardized grading system allows engineers to select materials with predictable performance outcomes.
Key Material Properties
NEMA CE sheets exhibit a range of essential properties that define their quality and functionality. They possess high mechanical strength, enabling them to withstand stress and impact without deformation. Electrical insulation is excellent, ensuring safety and reliability in electrical components. Dimensional stability maintains shape under thermal and environmental fluctuations, while resistance to moisture absorption prevents swelling or weakening. Additionally, inherent flame retardancy provides a safety advantage in high-temperature or electrical environments. Collectively, these attributes make NEMA CE sheets a dependable choice for diverse industrial and engineering applications.
Mechanical, Thermal, and Electrical Performance Metrics
Mechanical Performance
NEMA CE sheets display exceptional mechanical properties that make them highly suitable for demanding industrial applications. Tensile strength typically ranges from 60 to 70 MPa, providing resistance to stretching forces, while flexural strength often exceeds 100 MPa, ensuring rigidity under bending loads. Compressive strength generally lies between 150 and 200 MPa, allowing the material to withstand significant pressing forces. Additionally, impact strength offers reliable resistance to sudden shocks or loads. Together, these mechanical characteristics ensure that components made from NEMA CE sheets maintain integrity, durability, and long-term reliability in challenging operational environments.
Thermal Performance
The thermal performance of NEMA CE sheets is critical for applications exposed to elevated temperatures. Heat Deflection Temperature (HDT) is generally above 150°C, allowing the material to resist deformation under load at high temperatures. Continuous operating temperatures typically reach up to 120°C without compromising mechanical or electrical properties. The low coefficient of thermal expansion ensures dimensional stability across fluctuating temperature ranges, preventing warping or misalignment. These thermal attributes allow NEMA CE sheets to perform consistently and reliably in environments where heat and thermal cycling are frequent challenges.
Electrical Performance
NEMA CE sheets are highly valued for their electrical insulation capabilities. Dielectric strength often exceeds 20 kV/mm, providing robust resistance to electrical breakdown. Volume resistivity typically surpasses 10¹² ohm-cm, and surface resistivity is usually greater than 10¹⁰ ohms, ensuring minimal leakage currents. Arc resistance is excellent, frequently exceeding 120 seconds, making these sheets safe and reliable under high-voltage conditions. These electrical properties make NEMA CE sheets ideal for insulating components in power distribution, switchgear, transformers, and electronic devices, maintaining both safety and performance across diverse industrial applications.
Selecting the Right NEMA CE Sheet for Industrial Needs
Assessing Application Requirements
Choosing the appropriate NEMA CE sheet begins with a thorough assessment of the application's requirements. Factors such as mechanical stress, operating temperature ranges, electrical insulation needs, and exposure to environmental conditions like moisture or chemicals must be considered. Regulatory compliance and industry standards are also critical for ensuring safe and reliable performance. By carefully evaluating these aspects, engineers can select a NEMA CE sheet that not only meets the technical demands of the application but also provides long-term durability and operational efficiency in industrial settings.
Customization Options
NEMA CE sheets offer versatile customization to address specific industrial needs. Variations in thickness allow adaptation to mechanical and electrical requirements, while surface finishes - smooth, matte, or textured - can optimize handling and integration. Color options may assist in identification or branding, and specialized resin formulations can enhance properties such as chemical resistance, flame retardancy, or dimensional stability. Collaborating with a reputable manufacturer ensures that customizations align with project specifications, maximizing the material's performance and suitability for specialized industrial applications.
Cost-Benefit Analysis
Although the initial investment for NEMA CE sheets may be higher than alternative materials, the long-term benefits often outweigh the upfront costs. Extended service life reduces the frequency of replacement, while durability minimizes maintenance and downtime. Enhanced safety, electrical reliability, and potential energy efficiency improvements contribute to operational savings. Evaluating the total cost of ownership, rather than just purchase price, helps industries make informed decisions, ensuring that the selection of NEMA CE sheets delivers optimal value and consistent performance across demanding industrial environments.
Conclusion
Understanding NEMA CE sheet material specifications is crucial for making informed decisions in industrial applications. These versatile materials offer a unique combination of mechanical strength, electrical insulation, and thermal resistance, making them indispensable in various sectors. By carefully considering the mechanical, thermal, and electrical performance metrics, along with specific application requirements, engineers and procurement specialists can select the optimal NEMA CE sheet for their projects. This knowledge not only ensures compliance with industry standards but also contributes to the overall efficiency, safety, and longevity of industrial equipment and systems.
