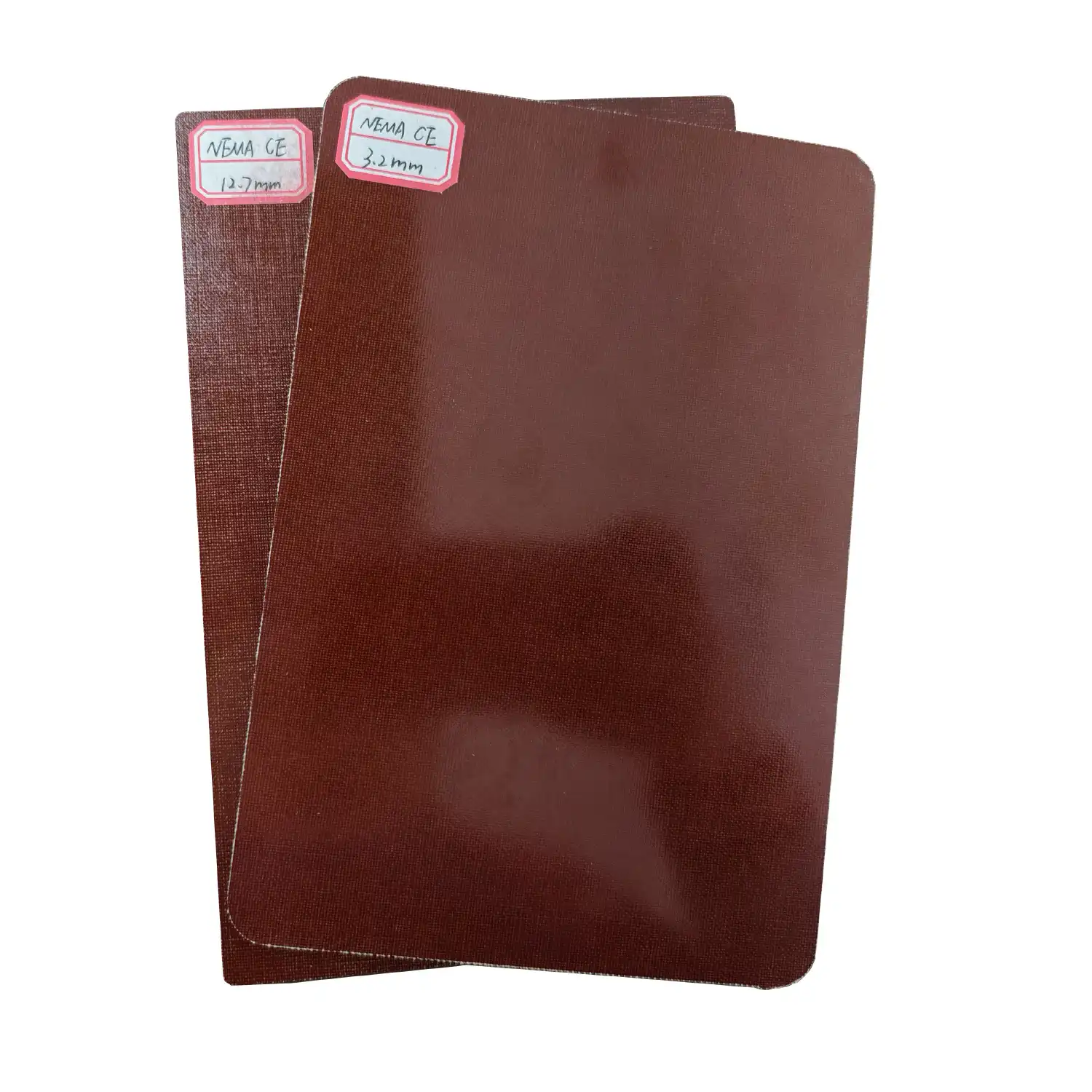

Electrical Insulation Components Using NEMA CE Sheets
Transformer and Motor Insulation
NEMA CE sheets provide excellent insulation for transformers and motors, where reliable performance is essential. Their strong dielectric properties help prevent short circuits and electrical leakage, ensuring stable operation under demanding voltage conditions. In addition, these sheets maintain dimensional stability even when exposed to fluctuating temperatures and mechanical stresses, which extends the service life of equipment. This combination of electrical and thermal reliability makes them a trusted choice for both large industrial machines and smaller electrical devices.
Switchgear and Panel Boards
In switchgear and panel board applications, NEMA CE sheets act as dependable insulating barriers that enhance both safety and performance. They are highly resistant to electrical arcing, reducing the risk of system failures and protecting equipment from damage during operation. Thanks to their machinability, the sheets can be precisely shaped to meet complex design requirements, ensuring smooth installation. Their durability and ability to endure high voltages make them especially well-suited for modern power distribution and control systems.
Terminal Blocks and Busbar Supports
NEMA CE sheets are widely used for terminal blocks and busbar supports, where both electrical insulation and mechanical strength are critical. They ensure reliable separation of conductive parts, reducing risks of short circuits while maintaining structural stability under load. Their resistance to tracking and surface erosion further improves system safety, even in challenging environments with high humidity or contaminants. These qualities make NEMA CE sheets a practical and long-lasting material solution for electrical distribution infrastructure and industrial assemblies.
Mechanical and Structural Applications in Industrial Equipment
Gears and Bearings
NEMA CE sheets are ideal for manufacturing gears and bearings due to their exceptional mechanical strength and wear resistance. These sheets maintain dimensional stability even under continuous load and high-stress conditions, ensuring smooth operation and long-term reliability. Some grades also offer self-lubricating properties, reducing friction and wear over time. This combination of durability, precision, and low maintenance makes NEMA CE sheets a preferred choice for critical moving components in industrial machinery.
Pumps and Valves
The chemical resistance, moisture tolerance, and robust mechanical properties of NEMA CE sheets make them well-suited for pump and valve components. They retain their structural integrity in fluid-handling systems, preventing deformation or failure under pressure. This ensures consistent performance and minimizes downtime caused by component wear. Additionally, the material’s stability in harsh operating environments extends the lifespan of pumps and valves, making it a cost-effective and reliable solution for industrial fluid systems.
Structural Supports and Spacers
NEMA CE sheets serve as dependable materials for structural supports and spacers in industrial equipment. Their high compressive strength allows them to bear significant loads without deformation, while dimensional stability ensures components fit precisely over time. Machinability enables the creation of custom shapes to meet specific design needs, enhancing versatility. By combining mechanical resilience with ease of fabrication, NEMA CE sheets provide long-lasting support in complex industrial assemblies, ensuring both safety and operational efficiency.
High-Temperature and High-Stress Scenarios for NEMA CE Materials
Heat-Resistant Components
NEMA CE sheets exhibit excellent heat resistance, making them ideal for applications exposed to elevated temperatures. They are widely used in industrial ovens, furnaces, and heat treatment systems, where they maintain structural integrity and insulation properties despite prolonged thermal exposure. Their low thermal expansion coefficient ensures dimensional stability during temperature fluctuations, preventing warping or deformation. This combination of thermal resilience and mechanical strength allows NEMA CE materials to reliably support sensitive components, maintain electrical insulation, and provide long-term durability in environments where heat stress is a constant operational challenge.
Chemical Processing Equipment
The outstanding chemical resistance of NEMA CE sheets makes them highly suitable for demanding chemical processing applications. These materials are employed in the fabrication of tank linings, pipe fittings, gaskets, and other components exposed to corrosive liquids or gases. Their ability to resist chemical attack prolongs the lifespan of equipment, reduces maintenance requirements, and enhances operational safety. By maintaining structural and functional integrity under harsh chemical conditions, NEMA CE sheets ensure reliable performance in industrial plants, laboratories, and processing facilities, safeguarding both personnel and costly machinery from potential chemical hazards.
Aerospace and Defense Applications
In aerospace and defense industries, NEMA CE sheets are used in high-stress, high-performance scenarios requiring a combination of strength, lightweight construction, and flame resistance. These materials are incorporated into aircraft components, military hardware, and protective enclosures where durability under extreme mechanical and thermal conditions is critical. The high strength-to-weight ratio, combined with flame-retardant and thermal stability properties, allows NEMA CE sheets to perform reliably under demanding operational stresses. Their resilience ensures safety, long-term functionality, and structural integrity in challenging environments encountered in both aerospace and defense applications.
Conclusion
NEMA CE sheets demonstrate remarkable versatility across various industrial applications. Their unique combination of electrical insulation, mechanical strength, and thermal resistance makes them indispensable in sectors ranging from electrical manufacturing to aerospace engineering. As industries continue to evolve, the adaptability of NEMA CE materials ensures their ongoing relevance in addressing complex engineering challenges. By offering reliable performance in diverse operational environments, these sheets continue to play a crucial role in enhancing the efficiency, safety, and durability of industrial equipment and components.
FAQs
What makes NEMA CE sheets suitable for electrical insulation?
NEMA CE sheets offer high dielectric strength and excellent electrical resistance, making them ideal for insulation in various electrical components.
Can NEMA CE sheets withstand high temperatures?
Yes, NEMA CE sheets have good heat resistance, making them suitable for high-temperature applications in industrial settings.
Are NEMA CE sheets chemically resistant?
NEMA CE sheets exhibit good resistance to many chemicals, making them valuable in chemical processing industries.
What are the mechanical properties of NEMA CE sheets?
NEMA CE sheets offer high mechanical strength, good dimensional stability, and wear resistance, making them suitable for various mechanical applications.
Can NEMA CE sheets be easily machined?
Yes, NEMA CE sheets have good machinability, allowing for easy cutting, drilling, and shaping to meet specific design requirements.
