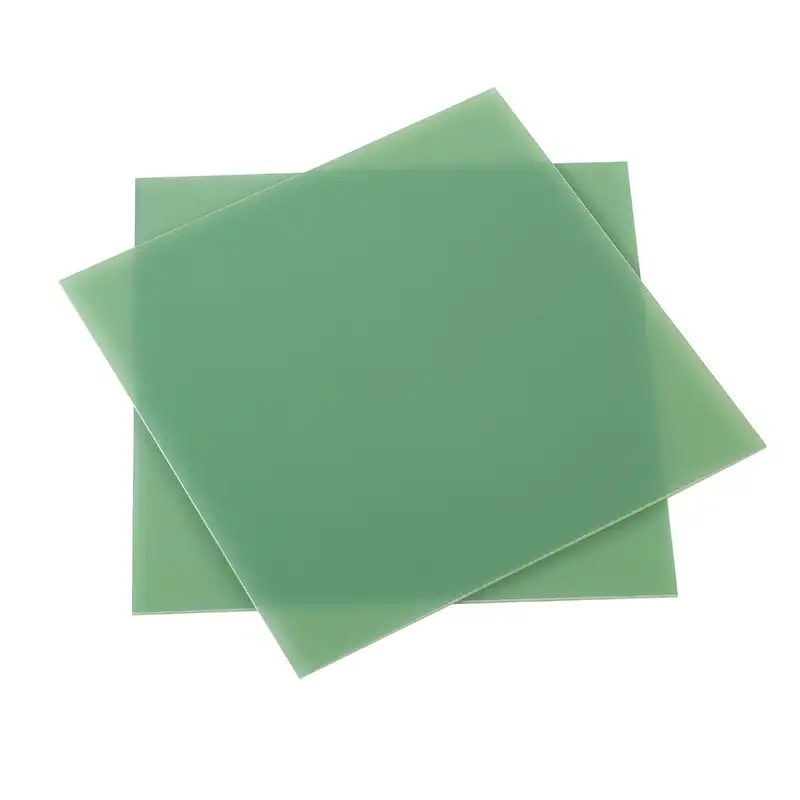

How Is G10 Epoxy Sheet Produced Step by Step?
Raw Material Preparation
The production of G10 epoxy sheet begins with the careful selection of raw materials. High-quality glass fibers, typically E-glass, are chosen for their excellent strength and electrical properties. The epoxy resin system is formulated to provide optimal performance characteristics. Additives may be incorporated to enhance specific properties such as flame retardancy or UV resistance.
Fabric Weaving and Impregnation
Glass fibers are woven into a fabric using specialized machinery. The weave pattern is crucial in determining the final properties of the G10 sheet. Once woven, the fabric undergoes an impregnation process where it is saturated with the epoxy resin. This step requires precise control of resin viscosity and temperature to ensure thorough penetration of the fabric.
Layering and Prepreg Formation
The resin-impregnated fabric, known as prepreg, is carefully layered to achieve the desired thickness. Multiple layers are stacked, with attention paid to orientation to optimize strength in different directions. The layered prepreg is then partially cured to create a stable, handleable material ready for the final curing process.
Key Materials and Curing Techniques in G10 Epoxy Sheet Manufacturing
Glass Fiber Selection
In the production of G10 epoxy sheets, the choice of glass fiber is fundamental to determining performance. E-glass fibers are most commonly used because they provide an excellent balance of tensile strength, electrical insulation, moisture resistance, and overall cost efficiency. These properties make them suitable for a wide range of industrial and electrical applications. In highly specialized sectors such as aerospace or defense, S-glass fibers may be selected instead, offering even greater strength and durability where critical structural performance is required.
Epoxy Resin Formulation
The epoxy resin system defines many of the essential characteristics of G10 epoxy sheets. Manufacturers carefully formulate resins to deliver thermal stability, high adhesion to glass fibers, and strong resistance to chemical attack. Additives such as hardeners, accelerators, and stabilizers are incorporated to fine-tune curing rates and optimize final mechanical properties. By adjusting resin chemistry, producers can tailor G10 sheets for specific end uses, ensuring they meet demanding requirements in electrical insulation, mechanical strength, and environmental resistance across different industries.
Advanced Curing Processes
Curing is the critical stage in which G10 epoxy sheets acquire their final structural and electrical properties. The process typically employs controlled heat and pressure through autoclaves, heated presses, or other specialized equipment. Carefully programmed curing cycles ensure complete cross-linking of the resin matrix, eliminating voids, enhancing adhesion, and maximizing strength. Some manufacturers adopt multi-stage curing methods or post-curing treatments to further refine dielectric performance, thermal stability, or dimensional accuracy. This meticulous approach guarantees consistent quality and reliability in high-performance applications.
Quality Control and Consistency in G10 Epoxy Sheet Production
In-Process Monitoring
During G10 epoxy sheet production, in-process monitoring is essential to guarantee uniformity and adherence to strict quality standards. Key factors such as resin viscosity, fabric alignment, prepreg resin content, and curing temperature are tracked at every stage. Modern manufacturing lines integrate advanced sensors, automated controls, and data logging systems that provide real-time feedback and enable precise adjustments. This high level of monitoring not only ensures consistency but also offers complete traceability, which is critical for meeting industrial and regulatory requirements.
Physical and Mechanical Testing
Upon completion, G10 epoxy sheets undergo a comprehensive series of physical and mechanical tests designed to confirm reliability. These tests evaluate properties such as tensile strength, flexural strength, impact resistance, and dimensional stability. For electrical applications, dielectric strength and arc resistance are particularly crucial, ensuring safe and effective performance in demanding conditions. In addition, accelerated aging and environmental conditioning tests are often performed to simulate long-term exposure, verifying the sheet’s ability to maintain stability under thermal, mechanical, and environmental stresses.
Continuous Improvement Protocols
Manufacturers of G10 epoxy sheets employ continuous improvement protocols to ensure ongoing product advancement. This includes systematic analysis of production data, customer feedback, and evolving industry standards to identify areas for enhancement. Advanced statistical process control methods are applied to optimize raw material selection, refine process parameters, and improve quality assurance systems. By fostering a culture of innovation and refinement, producers are able to deliver highly consistent, reliable G10 sheets that meet the increasing performance expectations of electrical, aerospace, and industrial applications worldwide.
Conclusion
The manufacturing process of G10 epoxy sheet is a complex interplay of material science and precision engineering. From the careful selection of glass fibers and epoxy resins to the controlled layering and curing processes, each step contributes to the exceptional properties of the final product. Rigorous quality control measures ensure consistency and reliability, making G10 epoxy sheets a trusted material across various industries. As manufacturing technologies continue to evolve, we can expect further refinements in the production process, potentially leading to G10 sheets with even more impressive capabilities.
FAQs
What are the main applications of G10 epoxy sheets?
G10 epoxy sheets are widely used in electrical insulation, printed circuit boards, aerospace components, and high-performance machinery parts.
How does G10 compare to other composite materials?
G10 offers an excellent balance of strength, electrical properties, and chemical resistance, often outperforming many other composites in these areas.
Can G10 epoxy sheets be customized for specific applications?
Yes, manufacturers can adjust the resin formulation, fiber orientation, and curing process to tailor G10 sheets for specific requirements.
Experience the Superior Quality of G10 Epoxy Sheets from J&Q
At J&Q, we leverage over two decades of expertise in producing top-tier insulating sheets, including G10 epoxy sheets. Our state-of-the-art manufacturing process ensures unparalleled quality and consistency. With our integrated logistics solutions, we offer seamless, one-stop service to meet your specific needs. Experience the J&Q difference in G10 epoxy sheets. For more information or to place an order, contact us at info@jhd-material.com.
