The Differences Between Phenolic Cotton Sheet and Bakelite Sheet

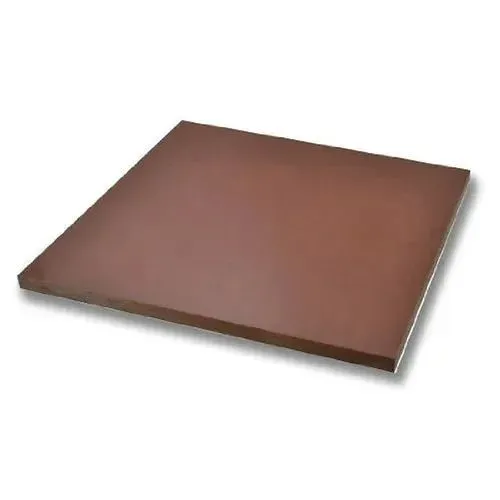

Phenolic cotton sheet and Bakelite sheet are both popular insulating materials used in various industries, but they have distinct characteristics that set them apart. Phenolic cotton sheet is made from layers of cotton fabric impregnated with phenolic resin, resulting in a lightweight, flexible, and heat-resistant material. On the other hand, Bakelite sheet is a synthetic plastic made from phenol and formaldehyde, known for its high strength, rigidity, and electrical insulation properties. While phenolic cotton sheet offers better machinability and impact resistance, Bakelite sheet excels in heat resistance and dimensional stability. Understanding these differences is crucial for selecting the right material for specific applications in electrical, mechanical, and industrial settings.

Composition and Manufacturing Process

Raw Materials Used in Production

The composition of phenolic cotton sheet and Bakelite sheet differs significantly, impacting their properties and applications. Phenolic cotton sheet comprises layers of cotton fabric infused with phenolic resin. The cotton fabric serves as a reinforcing material, enhancing the sheet's strength and flexibility. In contrast, Bakelite sheet is a synthetic plastic made primarily from phenol and formaldehyde. These raw materials undergo a chemical reaction called condensation polymerization to form the final product.

Production Techniques

The manufacturing processes for these two materials diverge considerably. Phenolic cotton sheet production involves impregnating cotton fabric layers with phenolic resin, followed by stacking and compressing these layers under heat and pressure. This process creates a laminated structure with excellent mechanical properties. Bakelite sheet, however, is produced through a molding process. The phenol-formaldehyde mixture is heated and pressurized in molds, resulting in a solid, uniform material with high dimensional stability.

Curing and Post-Processing

The curing process plays a crucial role in determining the final properties of both materials. Phenolic cotton sheets undergo a carefully controlled curing cycle to ensure optimal bonding between the resin and cotton fibers. This process enhances the material's strength and heat resistance. Bakelite sheets require a more extended curing period, often involving multiple stages to achieve the desired level of polymerization. Post-processing for phenolic cotton sheets may include trimming and finishing operations, while Bakelite sheets might require machining or polishing to achieve the desired shape and surface finish.

Physical and Mechanical Properties

Density and Weight

The density of phenolic cotton sheet and Bakelite sheet varies due to their different compositions. Phenolic cotton sheet typically has a lower density, ranging from 1.3 to 1.4 g/cm³, making it a lightweight option for various applications. Bakelite sheet, being a more compact and homogeneous material, has a higher density of approximately 1.36 to 1.42 g/cm³. This difference in density affects the weight of components made from these materials, with phenolic cotton sheet offering a slight advantage in weight-sensitive applications.

Strength and Durability

Both materials exhibit impressive strength and durability, but their performance differs in specific aspects. Phenolic cotton sheet demonstrates excellent tensile strength due to its reinforced structure, with values ranging from 100 to 150 MPa. It also shows superior impact resistance, making it suitable for applications requiring shock absorption. Bakelite sheet, while having a lower tensile strength of 40 to 60 MPa, excels in compressive strength, typically ranging from 200 to 300 MPa. This high compressive strength makes Bakelite sheet ideal for applications involving heavy loads or high pressure.

Flexibility and Machinability

The flexibility of phenolic cotton sheet is one of its distinguishing features. The layered structure allows for some degree of bending without compromising the material's integrity, making it suitable for curved or contoured applications. This flexibility also contributes to its excellent machinability, allowing for easy cutting, drilling, and shaping without the risk of cracking or chipping. Bakelite sheet, being a more rigid material, offers less flexibility but provides exceptional dimensional stability. While it can be machined, Bakelite requires more careful handling during processing to prevent cracking or chipping.

Thermal and Electrical Properties

Heat Resistance and Thermal Conductivity

Heat resistance is a crucial factor in many industrial applications. Phenolic cotton sheet exhibits good heat resistance, maintaining its properties at temperatures up to 130°C (266°F) for continuous use. Its thermal conductivity is relatively low, typically ranging from 0.2 to 0.3 W/(m·K), making it an effective thermal insulator. Bakelite sheet surpasses phenolic cotton sheet in heat resistance, withstanding temperatures up to 150°C (302°F) for continuous use and even higher for short periods. Its thermal conductivity is slightly higher, around 0.23 to 0.29 W/(m·K), but still provides excellent thermal insulation properties.

Electrical Insulation Capabilities

Both materials are renowned for their electrical insulation properties, but they excel in different aspects. Phenolic cotton sheet offers high dielectric strength, typically ranging from 15 to 20 kV/mm, making it suitable for various electrical applications. Its volume resistivity is generally in the order of 10^10 to 10^12 ohm·cm. Bakelite sheet, however, demonstrates superior electrical insulation properties with a dielectric strength of 20 to 25 kV/mm and volume resistivity in the range of 10^13 to 10^15 ohm·cm. These exceptional electrical properties make Bakelite sheet a preferred choice for high-voltage applications and precision electrical components.

Thermal Expansion and Stability

Thermal expansion is an important consideration in applications where dimensional stability is crucial. Phenolic cotton sheet has a coefficient of thermal expansion (CTE) ranging from 20 to 25 × 10^-6/K, which is relatively low compared to many other materials. This low CTE helps maintain dimensional stability across a range of temperatures. Bakelite sheet, however, exhibits even lower thermal expansion, with a CTE typically between 15 and 20 × 10^-6/K. This exceptional dimensional stability under varying temperatures makes Bakelite sheet particularly suitable for precision components and applications requiring tight tolerances.

Conclusion

Phenolic cotton sheet and Bakelite sheet, while both valuable insulating materials, possess distinct characteristics that make them suitable for different applications. Phenolic cotton sheet offers advantages in terms of lightweight construction, flexibility, and impact resistance, making it ideal for applications requiring these properties. Bakelite sheet, with its superior heat resistance, dimensional stability, and exceptional electrical insulation properties, is well-suited for high-performance electrical and mechanical components. By understanding these differences, engineers and manufacturers can make informed decisions when selecting the most appropriate material for their specific needs, ensuring optimal performance and longevity in their products.

Contact Us

Are you looking for high-quality insulating sheets for your next project? With over 20 years of experience in producing and selling insulating sheets, we can provide expert guidance and top-notch products tailored to your needs. Contact us today at info@jhd-material.com to discuss your requirements and discover how our extensive range of insulating materials can benefit your applications.
