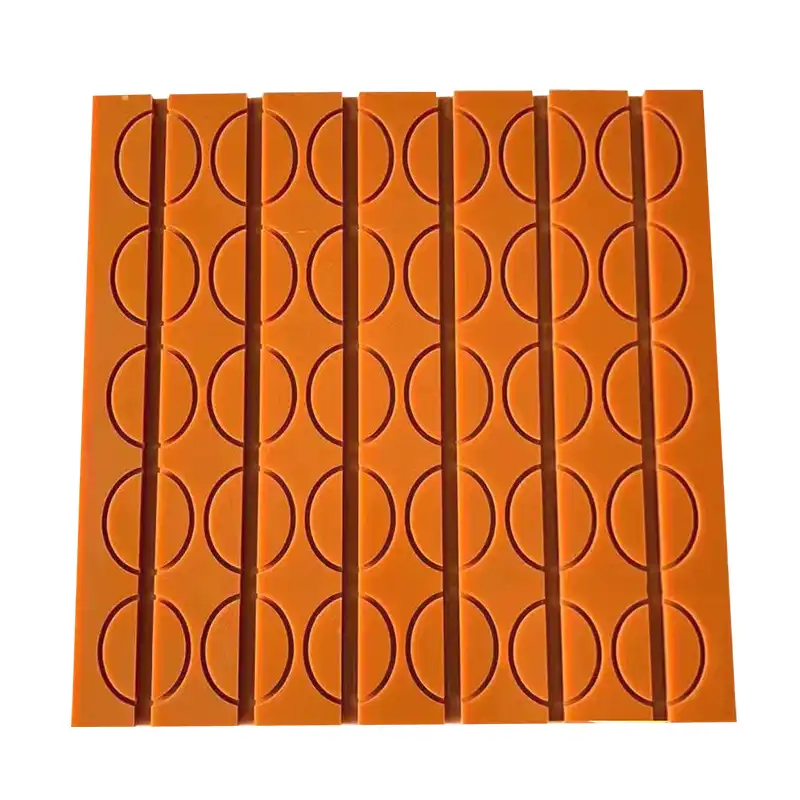

Industrial-grade Bakelite sheets are the best choice for demanding uses in many industries because they are highly effective at insulating against electricity and staying cool in hot conditions. These thermosetting plastics are made from phenolic resin and have the high mechanical strength, excellent electrical qualities, and excellent temperature stability that modern industry needs. Our in-depth study shows the five best Bakelite sheet options for supporting PCBs, insulating electrical components, making switchgear parts, and using in motor applications where dependability can't be compromised.
Understanding the Critical Role of Premium Bakelite Materials
For industrial uses, materials need to work regularly even in harsh situations. Bakelite sheets have a good image because they have been used for decades in the making of electronics and electrical parts, where failure of a part is not only expensive but could also be very bad. Engineers need these synthetic resin composites because they have the right amount of electrical protection, mechanical toughness, and heat resistance for important uses.
Because phenolic resin has special qualities that can't be found in other materials, makers who can't settle for less use it. Different from most plastics that melt when heated, Bakelite keeps its shape even when temperatures are high. Because of this, it is necessary for uses like generator insulation and car battery barriers, where safety and performance are directly affected by temperature stability.
Essential Selection Criteria for Industrial-Grade Materials
To choose the best Bakelite sheet, you need to carefully look at a number of performance factors. Our evaluation is mainly based on dielectric strength, which shows how well electrical shielding works when there is a lot of power. We check the mechanical properties, like tensile strength, resistance to impact, and steadiness in size under load, which are important for structure uses.
Temperature efficiency is another important factor. The best materials keep their traits even when they are exposed to very low temperatures or high temperatures that don't go away. To make sure constant performance, we look at heat displacement temperatures, ongoing service scores, and thermal expansion factors.
Concerns about manufacturing are just as important. CNC machinability affects how quickly and accurately things are made, while thickness limits affect the quality of the process. Following the rules set by UL and ROHS makes sure that global markets are approved by regulators. In precision uses, the quality of the surface finish affects both how it looks and how well it works.
Premium Industrial Bakelite Sheet Solutions
High-Performance FR4 Epoxy Bakelite Composite
This high-tech hybrid material has the usual phenolic qualities plus better flame resistance, which makes it perfect for electronics uses that need to meet UL94-V0 standards. The material has a dielectric strength of more than 20 kV/mm, which means it can reliably insulate electrical systems even in high-voltage areas.
Some important benefits are:
- Better steadiness in terms of size and shape with little heat growth
- The CNC machine has great features for making accurate parts.
- Outstanding chemical defense against cleaners and acids used in industry
- For accurate uses, width limits that stay within ±0.05mm
- Rated for continued use at temperatures up to 180°C
- It doesn't absorb much water, so it doesn't change size in wet places.
- High mechanical strength, with tensile strengths above 400 MPa
This substance works very well in electrical panels, switchboard parts, and PCB boards where flame protection and electrical performance are very important. The constant cutting qualities of this material are liked by manufacturing engineers because they keep tight standards and reduce tool wear over multiple production runs. Because the material doesn't give off much gas, it can be used in sensitive electrical systems where keeping contamination under control is very important.
Heavy-Duty Phenolic Cotton Laminate
Engineered to have the highest mechanical strength, this cotton-reinforced phenolic laminate is very strong and can hold a lot of weight. The cotton cloth support is stronger than options made of paper, which makes it perfect for use in industrial machines as a structural element.
Some important benefits are:
- Outstanding impact strength that stops cracks from spreading when shock loads are applied
- Very good resistance to wear for gear and bearing uses
- Better machinability lets you make complicated shapes without delamination
- High compression strength of more than 300 MPa
- Fiber direction that stays the same means that mechanical characteristics can be predicted.
- Good thermal conductivity for uses that need to get rid of heat
- Excellent bond strength between layers that keeps them from peeling off
This substance is very useful for making mechanical spacers, structure insulators, and heavy machinery parts that don't wear out easily. OEM buying managers like how reliable it is under cycle loading conditions, and mechanical engineers like how safe it is and how predictable its failure modes are. Because the material can keep its qualities even when it is vibrating all the time, it is important for use in transportation and manufacturing equipment.
Premium 3240 Epoxy Glass Laminate
This high-quality epoxy glass system is the best electrical protection available because it has both great dielectric qualities and great mechanical strength. The constant glass fiber support gives the material better tensile strength and great electrical properties across a wide frequency range.
Some important benefits are:
- Excellent qualities for keeping the dielectric strength at high frequencies
- Low dissipation factor makes sure that there aren't many electricity leaks
- Excellent resistance to moisture keeps electrical degradation from happening.
- High torsional strength allows for thin-section uses
- Very good protection to heat shock for quick temperature changes
- Better quality surface finish for accurate electrical contacts
- Electrical qualities that are the same across production batches
This material works great for insulating transformers, spinning motors, and making precise electrical parts that can't lose their electrical performance. Technical buying teams like how constant it is from batch to batch, which makes sure that the supply chain works well. The material's great age qualities keep its properties over a longer working life, which lowers the need for upkeep and lifetime costs.
Heat-Resistant Automotive Grade Bakelite
With its special recipe made just for automobile uses, this phenolic substance can handle the tough conditions found in current cars. Because it is more resistant to heat and pressure, it is perfect for use under the hood and in electric car parts where other materials fail.
Some important benefits are:
- Wider temperature range of -40°C to 200°C for constant use
- Very good at dampening vibrations, which lowers noise transfer
- Better chemical protection against cleaning and car fluids
- Low temperature growth that matches metal parts
- Very good resistance to wear under repeated loading
- Quality that is always up to par with car standards
- The ability to make rapid prototypes for R&D uses
Suppliers of auto parts use this stuff to make heat-resistant fixings, battery pack shields, and insulation pads. R&D experts like that it can be customized so that features can be made to fit specific needs. The fact that the material meets standards set by the car industry makes sure that the qualification and governmental approval processes go smoothly.
Cost-Effective Mass Production Bakelite
When it comes to cost-effectiveness, this standard-grade phenolic material works well and is perfect for making a lot of things. Stable supply and consistent working features make it easy for device makers and other high-volume users to make things.
Some important benefits are:
- Cost-performance ratio that is optimized for uses that are tight on money
- Consistent handling factors that allow for automatic production
- Supply line that works well and has short lead times
- Good mechanical qualities that can be used in many business settings
- Excellent moldability for making complicated forms and arrangements
- Standard width variations are easy to get from stock
- Proven quality methods that make sure materials always have the same traits
Manufacturers of home appliances like this material because it strikes a good mix between performance and cost, which lets them offer reasonable prices while still keeping quality standards. Supply chain managers like that the prices and supply are steady, which makes long-term planning and cost control easier.
Global Market Dynamics and Regional Considerations
The global market for industrial Bakelite sheet is made up of different regions with different rules and regulations. Flame-retardant versions are in high demand in North American markets because of the need to meet UL and fire safety standards. European rules are mostly about protecting the environment. For example, the ROHS and REACH guidelines affect the choice of materials and the way things are made.
Cost-effectiveness and fast delivery are very important in Asian markets, especially China and Southeast Asia. To be successful, manufacturing hubs in these areas need to offer stable quality at prices that are affordable. They also need to be able to scale up output and rely on a reliable supply chain. More and more expensive products are being bought in these areas because the car and tech industries are growing.
Cultural tastes also affect the choice of materials. German companies tend to focus on accuracy and long-term dependability, while American companies tend to focus on improving performance and coming up with new ideas quickly. Knowing these tastes helps sellers make sure their products meet the needs of the local market.
Strategic Purchasing Recommendations
To do a good job of buying, you need to find a balance between performance needs, cost concerns, and the dependability of the supply chain. Early on in the planning process, make sure there are clear specs that take into account both current needs and future growth needs. Instead of just looking at price, you should judge providers based on their professional skills, quality systems, and the chance of a long-term relationship.
Quality approval is an important thing to think about. Make sure that sellers keep the right ISO certifications and follow the rules for their business. Ask for test results and certificates of materials to make sure they meet the requirements. To lower supply chain risks, think about how financially stable and geographically diverse your suppliers are.
Strategies for managing inventory should take into account how long things last and how they need to be stored. For phenolic materials to keep their best qualities, the humidity and temperature must be carefully managed. Talk to your providers about how to package and handle items so that they don't get damaged during shipping and storing.
Industry Trends and Future Outlook
The industrial laminate field is still changing to make it more environmentally friendly and improve efficiency. Bio-based phenolic resins are getting more attention as companies try to make materials with less of an impact on the environment without sacrificing their qualities. Traditional thermoset materials can be used in more ways thanks to new production methods like additive manufacturing and hybrid processing. More and more industry and vehicle uses are becoming electric, which is increasing the need for better electrical insulator materials that can handle heat better.
Conclusion
To choose the correct industrial-grade Bakelite sheet, you need to carefully think about the performance needs, the conditions of the application, and the things that affect the supply chain. The materials emphasized in this study are tried-and-true options that work reliably in a wide range of industrial settings. Finding the right material qualities for the job while keeping quality, dependability, and long-term value in mind is key to success. For important projects, the best results come from working with experienced sources who know both the science behind the materials and how they should be used.
FAQs
What is the difference between normal phenolic products and industrial-grade Bakelite sheets?
Compared to normal grades, industrial-grade materials are easier to control in terms of their properties, have tighter limits, and are more consistent. They usually have better fiber distribution, better glue formulations, and stricter quality control methods to make sure they work well in tough situations.
What's the best way to figure out the width for my use?
The choice of thickness is based on engineering needs, electricity requirements, and the limitations of the making process. Things to think about are the power needs, the mechanical loads, the heat growth, and the allowances for cutting. Talk to the makers of the materials and try the applications to make sure they work.
In general, how long does it take to get a custom Bakelite sheet?
Standard standards usually ship between 2 and 4 weeks, but based on how complicated they are, special formulas may take 6 to 12 weeks. Lead time is affected by things like the need to test materials, make tools, and meet number needs. Getting suppliers involved early on helps keep shipping delays to a minimum.
