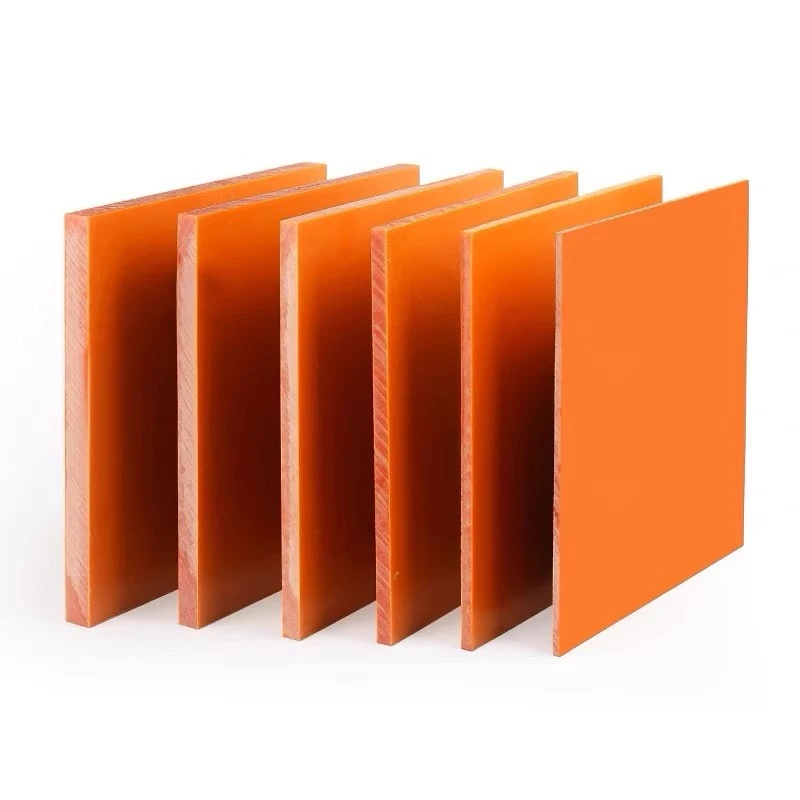

What Testing Methods Are Used to Evaluate Bakelite Dielectric Properties?
Short-Time Test Method
The short-time test method is a commonly used approach for evaluating the dielectric strength of Bakelite sheets. This method involves applying a rapidly increasing voltage to the sample until breakdown occurs. The test is typically completed within 10 to 20 seconds, making it efficient for quality control purposes. However, it may not fully represent the material's performance under long-term stress conditions.
Step-by-Step Voltage Test
The step-by-step voltage test offers a more gradual approach to assessing Bakelite sheet dielectric strength. In this method, voltage is increased in predetermined steps, with each step maintained for a specific duration before progressing to the next level. This technique allows for a more thorough evaluation of the material's behavior under sustained electrical stress, potentially revealing weaknesses that might not be apparent in short-duration tests.
Thermal Aging and Dielectric Testing
To simulate real-world conditions and assess long-term performance, thermal aging tests are often combined with dielectric strength measurements. Bakelite samples are subjected to elevated temperatures for extended periods before undergoing dielectric strength testing. This approach helps predict how the material's insulating properties may degrade over time in high-temperature applications, providing valuable data for engineers and designers.
ASTM and IEC Standards for Dielectric Strength in Bakelite
ASTM D149 Standard
The ASTM D149 standard, titled "Standard Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulating Materials at Commercial Power Frequencies," is widely used for testing Bakelite sheets. This standard outlines precise procedures for sample preparation, electrode configuration, and test execution. It specifies different test methods, including the short-time test and step-by-step voltage test, allowing for comprehensive evaluation of dielectric properties.
IEC 60243-1 Standard
The International Electrotechnical Commission (IEC) provides the IEC 60243-1 standard for testing electrical strength of insulating materials. This standard is particularly relevant for Bakelite sheets used in international markets. It details test procedures for various environmental conditions and electrode arrangements, ensuring consistency in global applications. The IEC standard also addresses factors such as temperature and humidity, which can significantly impact dielectric strength measurements.
Comparison of ASTM and IEC Standards
While both ASTM and IEC standards aim to provide reliable methods for testing dielectric strength, there are subtle differences in their approaches. The ASTM standard tends to be more commonly used in North America, while the IEC standard is prevalent in Europe and many other parts of the world. Understanding the nuances between these standards is crucial for manufacturers and users of Bakelite sheets, especially when dealing with international markets or cross-border collaborations in electrical engineering projects.
Laboratory Procedures for High-Voltage Breakdown Testing
Sample Preparation and Conditioning
Proper sample preparation is crucial for accurate dielectric strength testing of Bakelite sheets. Samples must be cut to precise dimensions, typically circular discs with a specified diameter and thickness. The edges should be smooth and free from defects to prevent premature breakdown. Prior to testing, samples are often conditioned in a controlled environment to ensure consistent moisture content and temperature. This conditioning period, usually 24 to 48 hours, helps eliminate variations due to environmental factors and ensures reproducible results.
Electrode Configuration and Test Setup
The electrode configuration plays a significant role in dielectric strength measurements. For Bakelite sheets, cylindrical electrodes with rounded edges are commonly used to prevent edge effects that could skew results. The electrodes are typically made of brass or stainless steel and must be polished to a high finish to ensure uniform contact with the sample surface. The test setup includes a high-voltage power supply, voltage measurement equipment, and safety interlocks. The sample is placed between the electrodes, often immersed in an insulating medium such as transformer oil to prevent surface flashover.
Data Analysis and Reporting
After conducting the dielectric strength test, thorough data analysis is essential. Multiple samples are usually tested to account for material variability. Statistical methods are applied to calculate average breakdown voltage and standard deviation. The dielectric strength is typically reported in volts per mil (V/mil) or kilovolts per millimeter (kV/mm). Advanced analysis may include Weibull distribution plots to assess the reliability of the material. Comprehensive reports should include details of the test method, sample specifications, environmental conditions, and any observations during testing. This detailed reporting ensures transparency and allows for meaningful comparisons between different Bakelite formulations or manufacturing batches.
Conclusion
Testing the dielectric strength of Bakelite sheets is a complex process that requires meticulous attention to detail and adherence to established standards. By following proper testing procedures and utilizing appropriate equipment, manufacturers and users can ensure the reliability and safety of Bakelite components in electrical applications. Understanding the nuances of different testing methods and standards enables informed decision-making in material selection and quality control. As electrical systems continue to evolve, maintaining rigorous testing protocols for insulating materials like Bakelite remains paramount in safeguarding the integrity of electrical infrastructure.
FAQs
What is the typical dielectric strength range for Bakelite sheets?
The dielectric strength of Bakelite sheets typically ranges from 300 to 500 volts per mil, depending on the specific formulation and manufacturing process.
How does thickness affect the dielectric strength of Bakelite sheets?
Generally, thicker Bakelite sheets exhibit higher dielectric strength, but the relationship is not linear. The dielectric strength per unit thickness tends to decrease as overall thickness increases.
Can environmental factors impact dielectric strength test results?
Yes, factors such as humidity, temperature, and surface contamination can significantly affect test results. Proper conditioning and controlled testing environments are crucial for accurate measurements.
