What Are the Key Indicators of Authentic G10 Epoxy Sheet?
Composition and Material Properties
Genuine G10 epoxy sheet boasts a unique composition of woven fiberglass fabric impregnated with epoxy resin. This combination results in exceptional mechanical strength, electrical insulation, and chemical resistance. The material exhibits high tensile and flexural strength, typically ranging from 40,000 to 75,000 psi. Its dielectric strength surpasses many other insulating materials, making it ideal for electrical applications. Authentic G10 also demonstrates remarkable dimensional stability across a wide temperature range, maintaining its properties from cryogenic temperatures up to 140°C.
Visual Characteristics

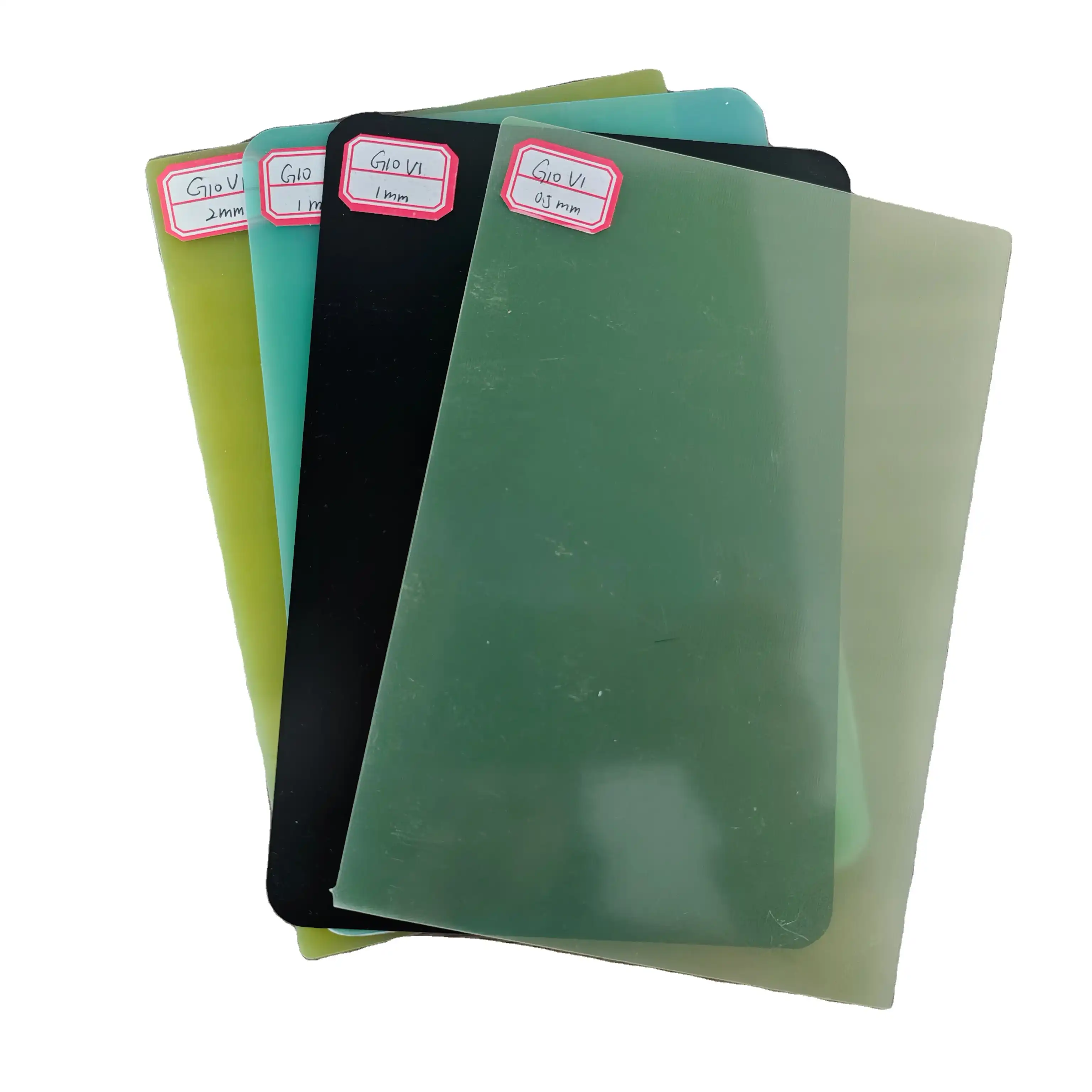

Authentic G10 epoxy sheet possesses distinct visual traits that set it apart from imitations. The surface texture is smooth and uniform, with a slight sheen characteristic of high-quality epoxy resin. When observed closely, the weave pattern of the fiberglass fabric may be discernible, contributing to its distinctive appearance. Color consistency is another hallmark of genuine G10, with the most common variants being opaque green or natural off-white. Any irregularities, such as bubbles, discolorations, or visible fiber strands, may indicate subpar manufacturing or counterfeit products.
Physical Attributes
The physical attributes of genuine G10 epoxy sheet are unmistakable to those familiar with the material. It possesses a high density, resulting in a solid feel and substantial weight for its size. When handled, authentic G10 exhibits remarkable rigidity and resistance to flexing, even in thinner sheets. The edges, when cut or machined, reveal a uniform layered structure without delamination or voids. Additionally, genuine G10 resists moisture absorption, maintaining its properties even in humid environments. These physical characteristics collectively contribute to its reputation as a premium engineering material.
Visual and Physical Inspection Techniques for G10 Epoxy Sheet
Surface Examination
A thorough surface examination is crucial in identifying genuine G10 epoxy sheet. Begin by inspecting the sheet under bright, diffused lighting to reveal any surface irregularities. Authentic G10 should exhibit a consistent, smooth finish without any visible fiber strands or resin-rich areas. Run your fingers across the surface to detect any roughness or imperfections that may not be immediately visible. Use a magnifying glass to scrutinize the surface texture, looking for the subtle weave pattern of the underlying fiberglass fabric. Any bubbles, pits, or uneven coloration may indicate manufacturing defects or counterfeit products.
Edge and Cross-Section Analysis
Examining the edges and cross-sections of G10 epoxy sheet provides valuable insights into its authenticity. Cut a small sample (if permissible) and observe the exposed edge under magnification. Genuine G10 should reveal a uniform layered structure with tightly packed fiberglass layers and consistent resin distribution. The layers should be free from voids, delamination, or irregular spacing. The cut edge should be clean and resist fraying or splintering. In cross-section, authentic G10 displays a homogeneous appearance without visible air pockets or resin-starved areas. This analysis helps verify the material's structural integrity and manufacturing quality.
Density and Weight Assessment
Assessing the density and weight of G10 epoxy sheet can provide valuable clues about its authenticity. Genuine G10 has a specific gravity of approximately 1.8, which translates to a noticeable heft for its size. Weigh a sample of known dimensions and compare it to the expected weight based on the material's density specifications. Be wary of sheets that feel unusually light, as this may indicate the use of inferior materials or manufacturing processes. Additionally, perform a water displacement test to calculate the volume and density more precisely. Authentic G10 should consistently meet the specified density range across different samples from the same batch.
Testing Methods to Ensure Material Quality and Reliability
Mechanical Property Verification
Verifying the mechanical properties of G10 epoxy sheet is essential in confirming its authenticity and quality. Conduct tensile strength tests using standardized specimens to measure the material's ability to withstand longitudinal stress. Genuine G10 should exhibit tensile strength values around 40,000 psi. Perform flexural strength tests to evaluate the material's resistance to bending, with typical values for authentic G10 ranging from 65,000 to 75,000 psi. Assess the impact resistance through Izod impact tests, where genuine G10 should demonstrate values around 14.0 ft-lbs/in. These mechanical tests provide quantitative data to compare against established benchmarks for authentic G10 epoxy sheet.
Electrical Insulation Testing
Electrical insulation testing is crucial in verifying the authenticity of G10 epoxy sheet, given its widespread use in electrical applications. Measure the dielectric strength using a high-voltage breakdown tester, where genuine G10 should withstand electric fields of 800 volts per mil or higher. Conduct volume resistivity tests to assess the material's ability to resist electrical current flow through its bulk. Authentic G10 typically exhibits volume resistivity values exceeding 10^16 ohm-cm. Perform arc resistance tests to evaluate the material's ability to withstand electrical arcing, with genuine G10 demonstrating excellent performance in this aspect. These electrical tests help confirm the material's suitability for critical insulation applications.
Chemical and Environmental Resistance Evaluation
Evaluating the chemical and environmental resistance of G10 epoxy sheet is crucial in verifying its authenticity and performance capabilities. Conduct chemical resistance tests by exposing samples to various solvents, acids, and bases commonly encountered in industrial applications. Genuine G10 should demonstrate excellent resistance to a wide range of chemicals without significant degradation or property changes. Perform moisture absorption tests by immersing samples in water for extended periods and measuring weight gain, with authentic G10 exhibiting minimal water absorption (typically less than 0.1% in 24 hours). Assess thermal stability through heat deflection temperature (HDT) tests, where genuine G10 should maintain its properties at temperatures up to 140°C. These evaluations help confirm the material's suitability for challenging environmental conditions.
Conclusion
Recognizing genuine G10 epoxy sheet requires a comprehensive approach combining visual inspection, physical examination, and performance testing. By carefully evaluating its composition, appearance, mechanical properties, electrical characteristics, and chemical resistance, one can confidently identify authentic G10. This multifaceted assessment ensures the material's suitability for critical applications across various industries. As G10 continues to play a vital role in electronics, aerospace, and other demanding fields, the ability to distinguish genuine products from imitations becomes increasingly important for maintaining quality, safety, and reliability in engineering applications.
FAQs
What are the key properties of G10 epoxy sheet?
G10 epoxy sheet is known for its high strength, excellent electrical insulation, chemical resistance, and dimensional stability. It has a tensile strength of around 40,000 psi, a dielectric strength exceeding 800 volts per mil, and low moisture absorption.
How is G10 epoxy sheet manufactured?
G10 is made by impregnating woven fiberglass fabric with epoxy resin. The layers are then stacked and pressed together under heat and pressure to create a solid, uniform sheet.
What are common applications for G10 epoxy sheet?
G10 is widely used in electrical insulation, printed circuit boards, aerospace components, marine applications, and industrial machinery where high strength and excellent electrical properties are required.
Trust J&Q for Genuine G10 Epoxy Sheet
J&Q, with over 20 years of experience in producing and selling insulating sheets, is your trusted source for genuine G10 epoxy sheet. Our rigorous quality control measures and in-house logistics ensure that you receive authentic, high-performance materials tailored to your specific needs. For more information about our G10 epoxy sheets and other insulating products, contact us at info@jhd-material.com.
