Understanding NEMA CE Sheets
Composition and Properties

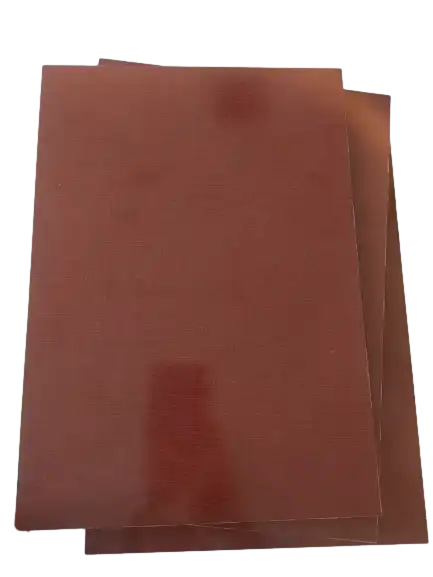

NEMA CE sheets are composed of a cotton fabric substrate impregnated with phenolic resin. This combination results in a material with exceptional mechanical strength, electrical insulation properties, and dimensional stability. The cotton fabric provides a coarse weave structure, contributing to the sheet's durability and impact resistance. The phenolic resin imparts excellent heat resistance and chemical stability, making NEMA CE sheets suitable for diverse industrial applications.
Applications in Industry
NEMA CE sheets find widespread use across various industries due to their versatile properties. They are commonly employed in electrical applications as insulating components, switchgear, and terminal boards. In the mechanical realm, these sheets serve as structural elements in machinery, gears, and bearings. The automotive sector utilizes NEMA CE sheets for under-hood components and insulation. Additionally, they play a crucial role in aerospace, marine, and defense industries, where their high-performance characteristics are invaluable.
Advantages Over Other Materials
NEMA CE sheets offer several advantages over alternative materials. They exhibit superior rigidity and dimensional stability compared to paper-based phenolics, ensuring consistent performance in demanding environments. Their excellent electrical insulation properties surpass many plastics, making them ideal for high-voltage applications. NEMA CE sheets also demonstrate remarkable resistance to moisture absorption, outperforming wood and some composites in humid conditions. Furthermore, their cost-effectiveness and ease of machining make them a preferred choice for manufacturers seeking reliable, high-performance materials.
Preparation for Machining NEMA CE Sheets
Safety Precautions and Equipment
Before commencing machining operations on NEMA CE sheets, implementing robust safety measures is paramount. Equip workers with appropriate personal protective equipment (PPE), including impact-resistant safety goggles, cut-resistant gloves, and respiratory protection to guard against dust inhalation. Ensure proper ventilation in the work area, utilizing dust extraction systems to minimize airborne particles. Implement lockout/tagout procedures for all machinery to prevent accidental start-ups during tool changes or maintenance. Conduct thorough training sessions on safe machine operation and material handling specific to NEMA CE sheets.
Tool Selection and Preparation
Choosing the right tools for machining NEMA CE sheets is crucial for achieving optimal results and maintaining safety. Opt for carbide-tipped cutting tools, as they offer superior wear resistance and maintain sharpness longer when working with abrasive materials. Select drill bits specifically designed for composite materials to minimize delamination and ensure clean holes. For routing operations, employ compression or spiral up-cut bits to achieve smooth edges. Sharpen all tools regularly to maintain cutting efficiency and reduce the risk of tool breakage. Consider using specialized phenolic-cutting saw blades to minimize chip-out and improve cut quality.
Workspace Setup and Material Handling
Organize the workspace to facilitate efficient and safe machining of NEMA CE sheets. Designate clean, well-lit areas for material storage, cutting, and finishing operations. Use sturdy work tables or CNC machines with proper clamping systems to secure the sheets firmly during machining. Implement a material handling system that minimizes manual lifting and reduces the risk of sheet damage or worker injury. Store NEMA CE sheets in a climate-controlled environment to prevent warping or moisture absorption prior to machining. Establish clear pathways for material movement and ensure all electrical connections and compressed air lines are properly routed to avoid tripping hazards.
Machining Techniques for NEMA CE Sheets
Cutting and Sawing Methods
When cutting NEMA CE sheets, employ techniques that minimize heat generation and prevent delamination. Utilize table saws equipped with carbide-tipped blades featuring a high tooth count for smooth, precise cuts. For intricate shapes, consider using a CNC router with a vacuum table to secure the material firmly. When performing manual cuts, guide the saw steadily to maintain a consistent cutting speed. Implement scoring techniques for clean break lines on thinner sheets. For circular cuts, use hole saws or specialized phenolic cutters to achieve accurate diameters without chipping or splintering the edges.
Drilling and Routing Strategies
Drilling NEMA CE sheets requires careful consideration of speed and feed rates to prevent overheating and ensure clean hole formation. Employ sharp, composite-specific drill bits and maintain moderate spindle speeds to reduce heat buildup. Use a backing board to minimize exit splintering when drilling through-holes. For routing operations, select bits with appropriate flute geometry to efficiently evacuate chips and maintain cutting efficiency. Implement climb cutting techniques when possible to achieve smoother edge finishes. Consider using multi-flute compression bits for edge routing to minimize top and bottom surface damage simultaneously.
Finishing and Post-Processing
After machining, proper finishing techniques enhance the appearance and functionality of NEMA CE sheets. Begin with progressive sanding, starting with coarser grits and gradually moving to finer ones to achieve a smooth surface. Utilize orbital sanders for large, flat areas and hand sanding for intricate details or edges. Apply edge sealing compounds to prevent moisture ingress and improve durability. For applications requiring enhanced aesthetics or chemical resistance, consider applying compatible paints or coatings. Implement deburring techniques to remove any sharp edges or burrs resulting from machining operations, ensuring safe handling and assembly of finished components.
Conclusion
Machining and finishing NEMA CE sheets safely and effectively requires a comprehensive approach combining proper tool selection, precise techniques, and stringent safety measures. By understanding the unique properties of NEMA CE sheets and implementing specialized machining strategies, manufacturers can achieve high-quality results while maintaining workplace safety. Regular maintenance of equipment, continuous training of personnel, and adherence to best practices ensure consistent outcomes and longevity of both tools and finished products. As NEMA CE sheets continue to play a vital role in various industries, mastering these machining and finishing techniques will remain crucial for manufacturers seeking to leverage the material's exceptional properties.
FAQs
What are the key benefits of using NEMA CE sheets?
NEMA CE sheets offer high impact strength, superior rigidity, excellent dimensional stability, and good electrical insulation properties. They meet military specifications and NEMA guidelines, making them suitable for various industrial applications.
How does NEMA CE compare to other grades like FR4 or NEMA L?
While FR4 offers excellent electrical performance and flame retardancy, NEMA CE provides superior mechanical strength and cost-effectiveness. NEMA L grade offers better surface finish for intricate components, but NEMA CE is preferred for its overall balance of properties and versatility.
What safety precautions should be taken when machining NEMA CE sheets?
Always use appropriate PPE, ensure proper ventilation and dust collection, select the right tools, and follow manufacturer guidelines. Regular equipment maintenance and worker training are also crucial for safe machining operations.
Expert NEMA CE Sheet Solutions from J&Q
At J&Q, we leverage over 20 years of experience in producing and selling insulating sheets to provide superior NEMA CE sheet solutions. Our extensive knowledge in foreign trade enables us to offer unparalleled service and product quality. With our in-house logistics company, we deliver a seamless, one-stop solution for all your NEMA CE sheet needs. Experience the J&Q difference in machining and finishing NEMA CE sheets safely and efficiently. For more information about our products and services, contact us at info@jhd-material.com.
