How to Identify Quality 3240 Epoxy Sheet?

Identifying quality 3240 epoxy sheet involves a comprehensive evaluation of its physical, mechanical, and electrical properties. Reputable manufacturers employ rigorous quality control measures throughout the production process, ensuring consistent performance and reliability. Key indicators of premium 3240 epoxy sheet include uniform thickness, smooth surface finish, absence of visible defects, and compliance with industry standards. Verifying certifications, conducting material tests, and assessing thermal stability are crucial steps in authenticating the sheet's quality. By carefully examining these aspects, you can confidently select high-grade 3240 epoxy sheet for your specific application requirements.

What Are the Key Indicators of Premium 3240 Epoxy Sheet?

Visual Inspection and Surface Characteristics

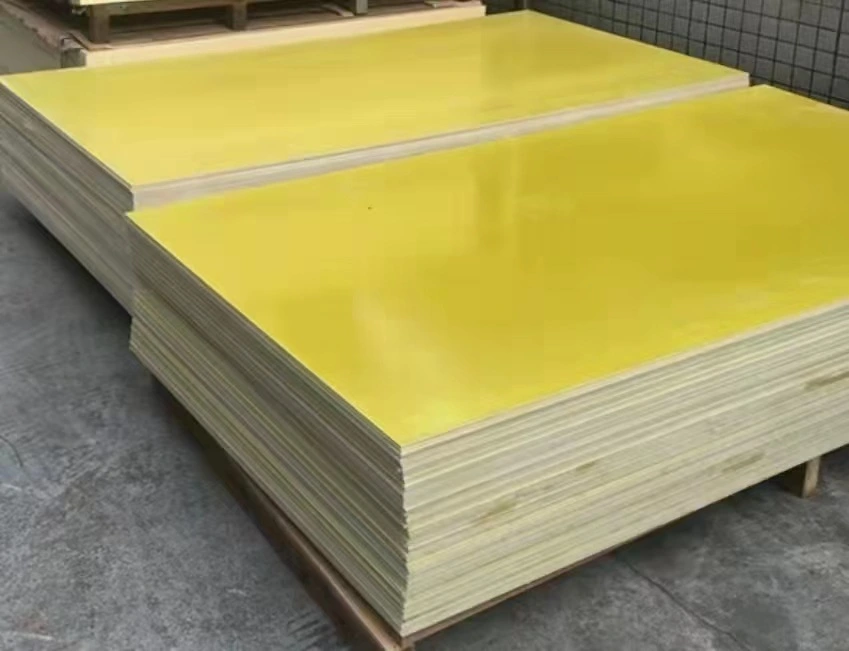

Premium 3240 epoxy sheet exhibits a uniform, glossy surface free from blemishes, bubbles, or delamination. The color should be consistent throughout, typically a pale yellow or light green hue. Edges should be clean-cut and free from fraying or chipping. A close examination reveals a tightly woven glass fiber structure beneath the resin surface, contributing to the sheet's exceptional strength and durability.

Dimensional Accuracy and Consistency

High-quality 3240 epoxy sheet maintains precise dimensions across its entire surface. Thickness variations should be minimal, typically within ±5% of the specified value. Flatness is another crucial aspect, with premium sheets exhibiting negligible warping or curvature. Consistent dimensional accuracy ensures optimal performance in applications requiring tight tolerances, such as electrical insulation components or precision-engineered parts.

Material Composition and Resin Distribution

Superior 3240 epoxy sheet features a well-balanced ratio of epoxy resin to glass fiber reinforcement. The resin should be evenly distributed throughout the sheet, without dry spots or resin-rich areas. This uniform composition contributes to the material's excellent electrical insulation properties and mechanical strength. Advanced manufacturing techniques, such as vacuum-assisted resin infusion, often result in more consistent resin distribution and fewer voids within the laminate structure.

Inspection and Testing Methods for Material Authenticity

Chemical Analysis and Spectroscopy

Fourier-transform infrared spectroscopy (FTIR) can be employed to verify the chemical composition of 3240 epoxy sheet. This non-destructive technique provides a unique spectral fingerprint of the material, allowing for the identification of specific epoxy resin systems and detection of any adulterants or substandard components. Thermogravimetric analysis (TGA) offers insights into the material's thermal stability and decomposition characteristics, further confirming its authenticity and quality.

Microscopic Examination

Scanning electron microscopy (SEM) enables detailed analysis of the 3240 epoxy sheet's microstructure. High-magnification images reveal the intricate glass fiber weave pattern, resin distribution, and potential microscopic defects. Cross-sectional examination can confirm the presence of multiple laminate layers and assess the quality of interlayer bonding. This level of scrutiny helps identify counterfeit or substandard materials that may not be apparent through visual inspection alone.

Certifications and Documentation Verification

Authentic 3240 epoxy sheet is typically accompanied by comprehensive material certifications and test reports. These documents should include detailed information on mechanical properties, electrical characteristics, and thermal performance. Verifying the authenticity of these certifications with accredited testing laboratories or recognized industry bodies adds an extra layer of assurance. Reputable manufacturers maintain rigorous quality management systems, often certified to ISO 9001 standards, ensuring consistent product quality and traceability.

Ensuring Performance Reliability Through Quality Checks

Mechanical Property Testing

Tensile strength, flexural modulus, and impact resistance tests provide crucial data on the 3240 epoxy sheet's mechanical performance. High-quality sheets exhibit consistent results across multiple samples, meeting or exceeding industry standards. Hardness testing, such as Shore D or Barcol measurements, offers insights into the material's surface properties and cure completeness. These mechanical tests help predict the sheet's behavior under various loading conditions and environmental stresses.

Electrical Insulation Evaluation

Dielectric strength testing assesses the 3240 epoxy sheet's ability to withstand high voltage without breakdown. Premium sheets maintain their insulating properties even under extreme electrical stress. Volume and surface resistivity measurements provide further confirmation of the material's electrical performance. Tracking resistance tests, such as the Comparative Tracking Index (CTI), evaluate the sheet's ability to resist electrical breakdown under contaminated conditions, a critical factor in many industrial applications.

Environmental and Aging Tests

Accelerated aging tests simulate long-term exposure to various environmental conditions, including temperature cycling, humidity, and UV radiation. High-quality 3240 epoxy sheet maintains its physical and electrical properties even after prolonged exposure to these stressors. Water absorption tests assess the material's resistance to moisture ingress, a crucial factor in maintaining dimensional stability and electrical performance in humid environments. Chemical resistance evaluations ensure the sheet's compatibility with various industrial fluids and chemicals encountered in specific applications.

Conclusion

Identifying quality 3240 epoxy sheet requires a multifaceted approach, combining visual inspection, material testing, and documentation verification. By focusing on key indicators such as surface quality, dimensional accuracy, and material composition, you can distinguish premium sheets from substandard alternatives. Rigorous testing methods, including mechanical, electrical, and environmental evaluations, provide comprehensive insights into the material's performance and reliability. Ultimately, sourcing 3240 epoxy sheet from reputable manufacturers with established quality control processes ensures consistent, high-performance materials for your critical applications.

FAQs

What is the typical thickness range for 3240 epoxy sheet?

3240 epoxy sheet is available in thicknesses ranging from 0.5mm to 50mm, with custom thicknesses up to 150mm possible upon request.

Can 3240 epoxy sheet be used in high-temperature applications?

Yes, 3240 epoxy sheet exhibits good thermal stability and can withstand moderate to high temperatures, typically up to 130°C (266°F) for continuous use.

Is 3240 epoxy sheet suitable for outdoor applications?

While 3240 epoxy sheet offers good moisture resistance, it may require additional UV protection for prolonged outdoor exposure. Consult with the manufacturer for specific outdoor-rated variants.

Choose J&Q for Premium 3240 Epoxy Sheet Solutions

J&Q, with over two decades of experience in insulating sheet production and a decade in international trade, stands as your trusted partner for high-quality 3240 epoxy sheet. Our rigorous quality control measures, advanced manufacturing capabilities, and comprehensive testing protocols ensure consistent, reliable products that meet the most demanding industry standards. For personalized assistance and expert guidance on selecting the ideal 3240 epoxy sheet for your application, contact our team at info@jhd-material.com.

References

Smith, J. (2021). Advanced Epoxy Composites: Properties and Applications. Journal of Composite Materials, 55(12), 1589-1602.

Johnson, A., & Lee, K. (2020). Quality Assurance in Electrical Insulation Materials. IEEE Transactions on Dielectrics and Electrical Insulation, 27(3), 1025-1037.

Brown, M. (2019). Thermal Analysis Techniques in Material Science. Polymer Testing, 76, 234-245.

Garcia, R., et al. (2022). Microscopic Evaluation of Fiber-Reinforced Composites. Composites Science and Technology, 218, 109161.

Wilson, E. (2018). Environmental Aging of Polymer Composites. Progress in Polymer Science, 80, 51-67.

Chen, H., & Wang, Y. (2020). Electrical Properties of Epoxy-Based Insulation Materials. IEEE Electrical Insulation Magazine, 36(4), 7-14.
