Understanding FR4 Epoxy Sheets and Their Properties
Composition and Manufacturing Process of FR4 Sheets

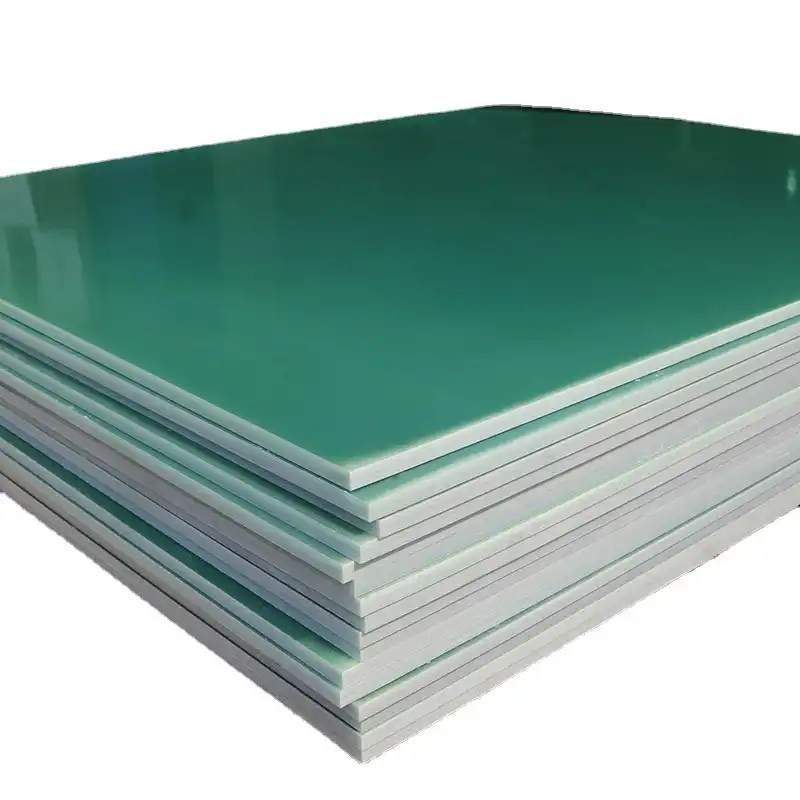

FR4 epoxy sheets are composite materials widely used in the electronics industry. These sheets are composed of woven fiberglass cloth impregnated with epoxy resin, creating a robust and versatile substrate. The manufacturing process involves layering multiple sheets of fiberglass fabric and saturating them with epoxy resin. This composite is then subjected to heat and pressure, resulting in a solid, uniform material with excellent electrical and mechanical properties.
Key Characteristics of FR4 Epoxy Sheets
FR4 epoxy sheets possess a unique combination of properties that make them ideal for various applications. These characteristics include high electrical insulation, excellent mechanical strength, low moisture absorption, and flame retardancy. The "FR" in FR4 stands for "Flame Retardant," indicating its ability to self-extinguish when exposed to fire. FR4 sheets also exhibit good dimensional stability across a wide range of temperatures, making them suitable for diverse operating conditions.
Common Applications of FR4 Sheets in Various Industries
The versatility of FR4 epoxy sheets has led to their widespread adoption across multiple industries. In the electronics sector, FR4 sheets serve as the foundation for printed circuit boards (PCBs), providing a stable platform for electronic components and circuitry. Aerospace and automotive industries utilize FR4 sheets for insulation and structural components. Additionally, FR4 sheets find applications in the manufacturing of electrical enclosures, transformer insulation, and industrial machinery components, showcasing their adaptability to diverse engineering requirements.
Factors Influencing FR4 Sheet Thickness Selection
Electrical Requirements and Voltage Considerations
When choosing the appropriate FR4 sheet thickness, electrical requirements play a pivotal role. The thickness of the FR4 sheet directly impacts its dielectric strength, which is crucial for insulation purposes. Higher voltage applications generally require thicker FR4 sheets to maintain proper insulation and prevent electrical breakdown. It's essential to consider the maximum operating voltage, potential voltage spikes, and safety margins when determining the optimal thickness. Consulting industry standards and voltage isolation requirements for specific applications can provide valuable guidance in this aspect.
Mechanical Strength and Structural Integrity
The mechanical properties of FR4 epoxy sheets are intricately linked to their thickness. Thicker sheets offer enhanced structural integrity, making them suitable for applications that require high mechanical strength or resistance to flexing and warping. Consider the mechanical loads, vibrations, and potential impacts that the FR4 component may encounter during its service life. For applications involving large, unsupported areas or those subject to frequent handling, opting for a thicker FR4 sheet can significantly improve the overall durability and longevity of the component.
Thermal Management and Heat Dissipation
Thermal considerations are paramount in many electronic and industrial applications. The thickness of FR4 sheets influences their thermal conductivity and heat dissipation capabilities. Thicker sheets generally provide better thermal insulation, which can be advantageous in certain scenarios. However, in applications where heat dissipation is crucial, thinner FR4 sheets or those with enhanced thermal properties may be more suitable. Evaluate the heat generation within your system, ambient temperature conditions, and cooling requirements to determine the optimal FR4 sheet thickness for effective thermal management.
Practical Considerations for FR4 Sheet Thickness Selection
Cost-Benefit Analysis of Different Thicknesses
When selecting FR4 sheet thickness, it's imperative to conduct a thorough cost-benefit analysis. Thicker sheets generally come with higher material costs, but they may offer enhanced durability and performance in certain applications. Consider the long-term benefits of using a thicker sheet, such as reduced maintenance or replacement frequency, against the initial investment. Conversely, thinner sheets may be more cost-effective for applications with less demanding requirements. Evaluate the total lifecycle cost, including manufacturing, installation, and potential replacement expenses, to make an informed decision that aligns with your project's budget and performance goals.
Manufacturing and Fabrication Constraints
The chosen FR4 epoxy sheet thickness can significantly impact manufacturing and fabrication processes. Thicker sheets may require specialized cutting and drilling equipment, potentially increasing production costs and lead times. Consider the capabilities of your manufacturing partners or in-house facilities when selecting the sheet thickness. Some fabrication techniques, such as laser cutting or high-speed routing, may have limitations on the maximum thickness they can effectively process. Engage with your fabrication team early in the design process to ensure that the selected thickness is compatible with available manufacturing methods and doesn't introduce unnecessary complexities or costs.
Industry Standards and Regulatory Compliance
Adhering to industry standards and regulatory requirements is crucial when selecting FR4 sheet thickness. Different industries and applications may have specific guidelines or mandates regarding material properties and dimensions. Familiarize yourself with relevant standards, such as those set by IPC (Association Connecting Electronics Industries) for PCB manufacturing or UL (Underwriters Laboratories) for electrical safety. Ensure that the chosen FR4 sheet thickness meets or exceeds the minimum requirements for your specific application. Compliance with these standards not only ensures product quality and safety but also facilitates certification processes and market acceptance.
Conclusion
Choosing the right FR4 sheet thickness is a multifaceted decision that requires careful consideration of electrical, mechanical, thermal, and practical factors. By thoroughly evaluating your project's specific requirements and balancing them with cost considerations and manufacturing constraints, you can select the optimal FR4 sheet thickness that ensures peak performance and longevity. Remember to consult with industry experts and leverage available resources to make an informed decision. The right choice will contribute significantly to the success and reliability of your FR4-based components, ultimately enhancing the overall quality of your project.
